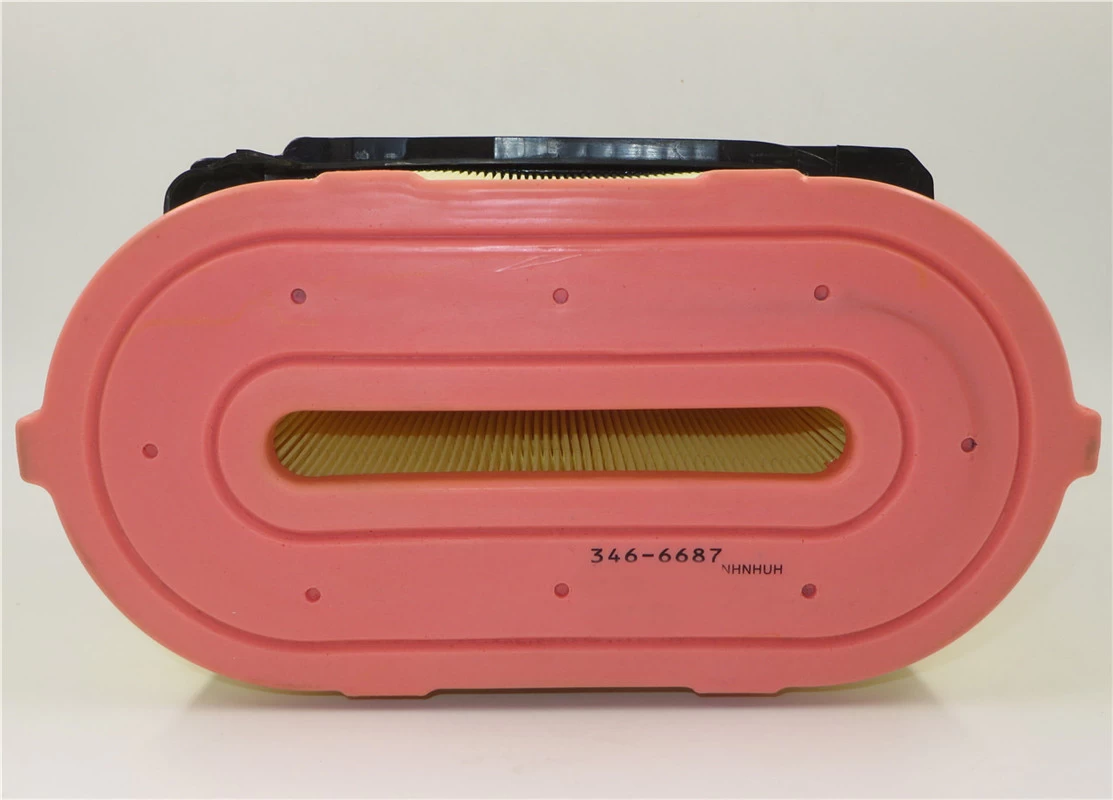

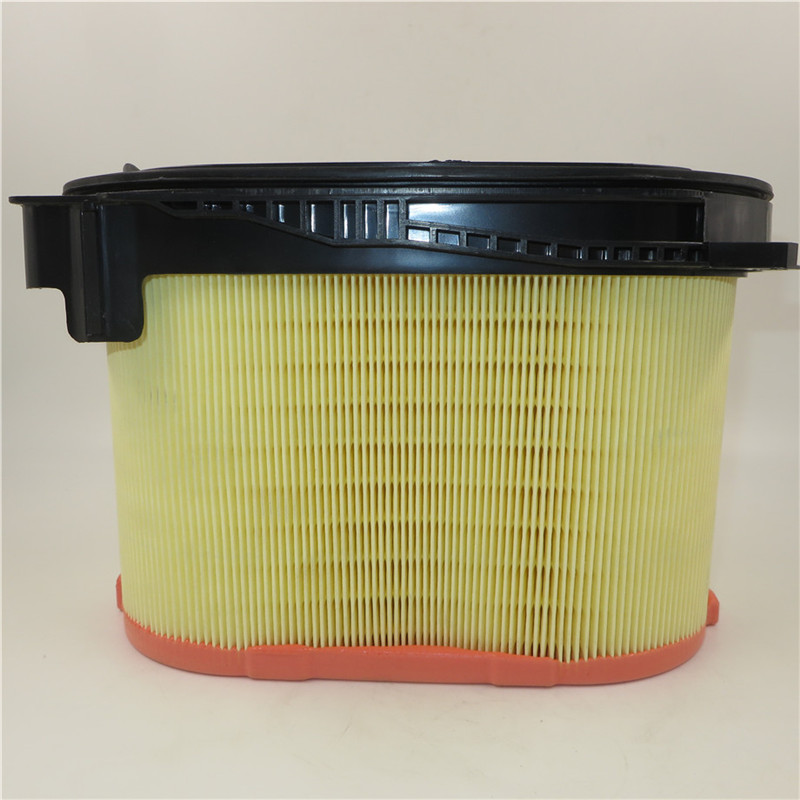

Primary Oval Air Element with Lid CAT 346-6687,3466687
Cross Reference:
Fleetguard AF25163, Baldwin PA5289
The 346-6687 Parameter：
|
Part Number
|
346-6687, 3466687
|
|
Parts Name
|
Air Filter
|
|
Brand
|
Caterpillar
|
|
Overall Height
|
212.00 mm
|
|
Outer Diameter 1
|
285.00 mm
|
|
Outer Diameter 2
|
142.00 mm
|
The 346-6687 Features：

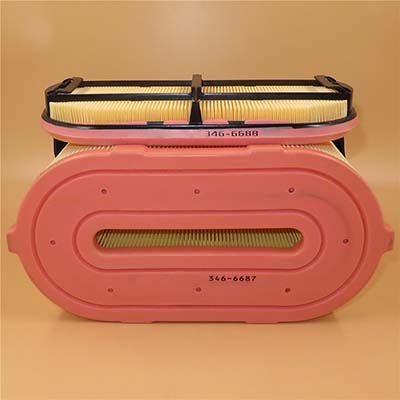

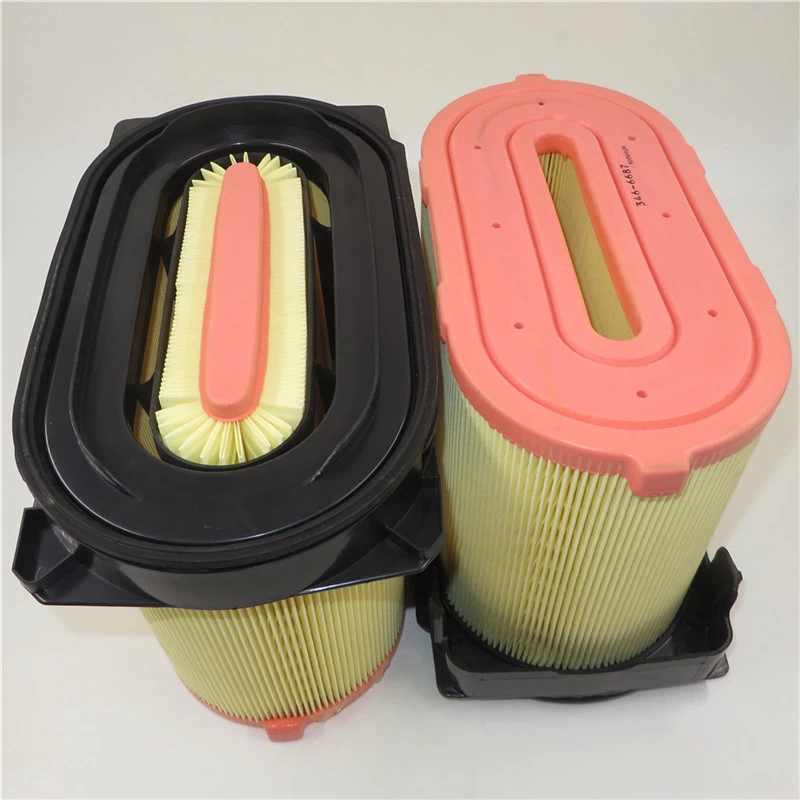

The primary Air Element 346-6687 and Secondary Air Element 346-6688 used together.
The 346-6687 has two attributes:
1. Quick serviceability
2.Improved contamination control holds particulates during filter change
The 346-6687 Application：
|
Compatible Models
|
|
TTT
D5K2 XL D3K2 LGP D3K2 XL D4K2 LGP D5K2 LGP D4K2 XL
|
|
PNEUMATIC TIRED COMPACTORS
CW34LRC
|
|
BHL
428F2, 430F 416F 432F, 432F2, 420F 415F2 IL 422F2 427F2, 420F2 426 F2 416F2 434F2, 444F, 415F2 434F, 428F, 430F2 444F2, 450F
|
|
BACKHOE LOADERS
422F, 420F2ST, 430F2ST, 450-07 440
|
|
AP
AP-300D
|
|
COMP
CW-34 CW34
|
|
WTL
918M 914K 914M 910M 910K
|
