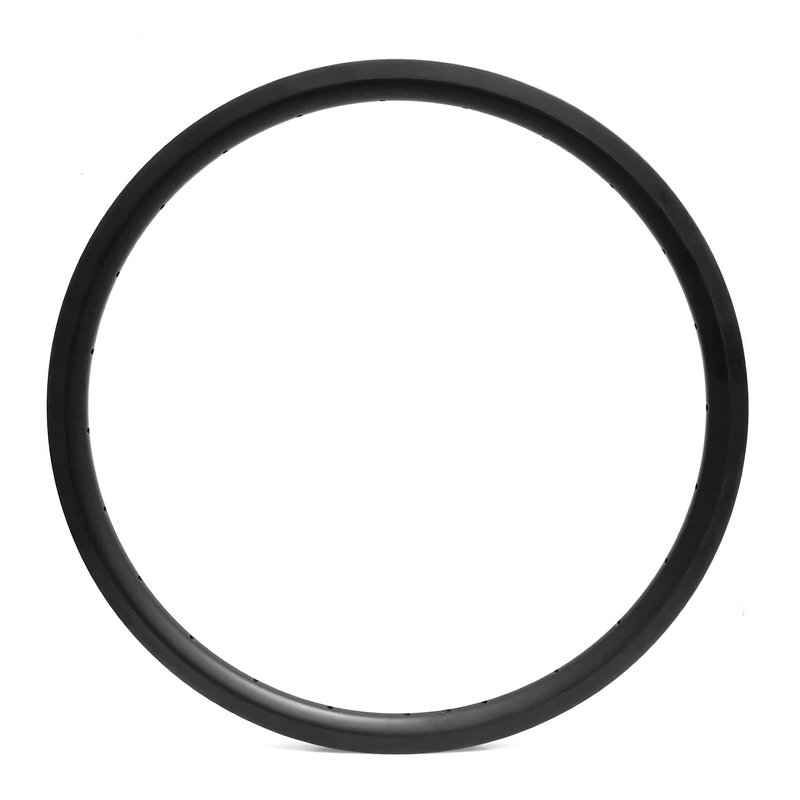

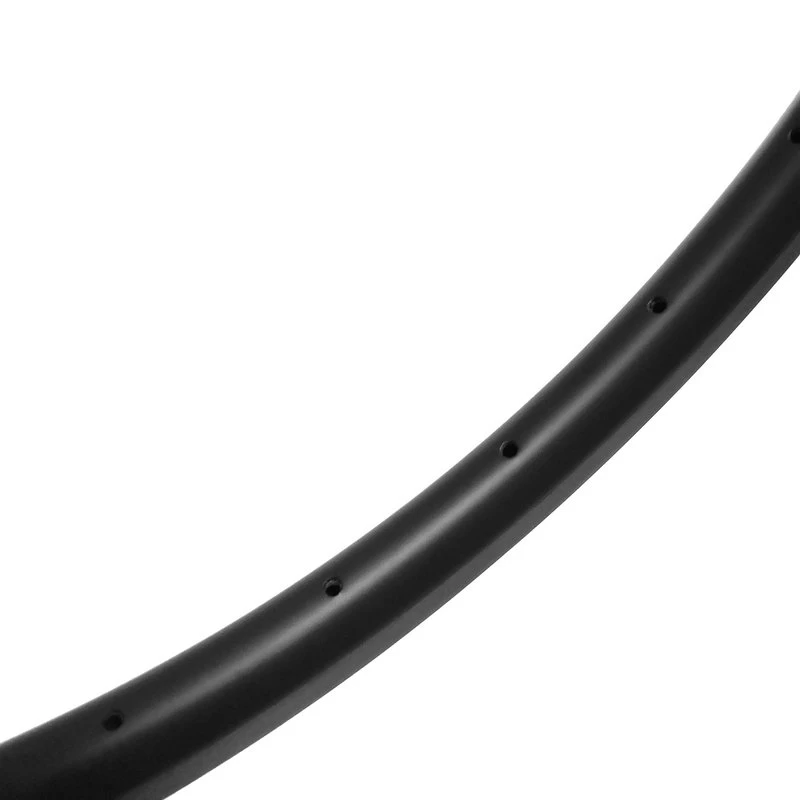

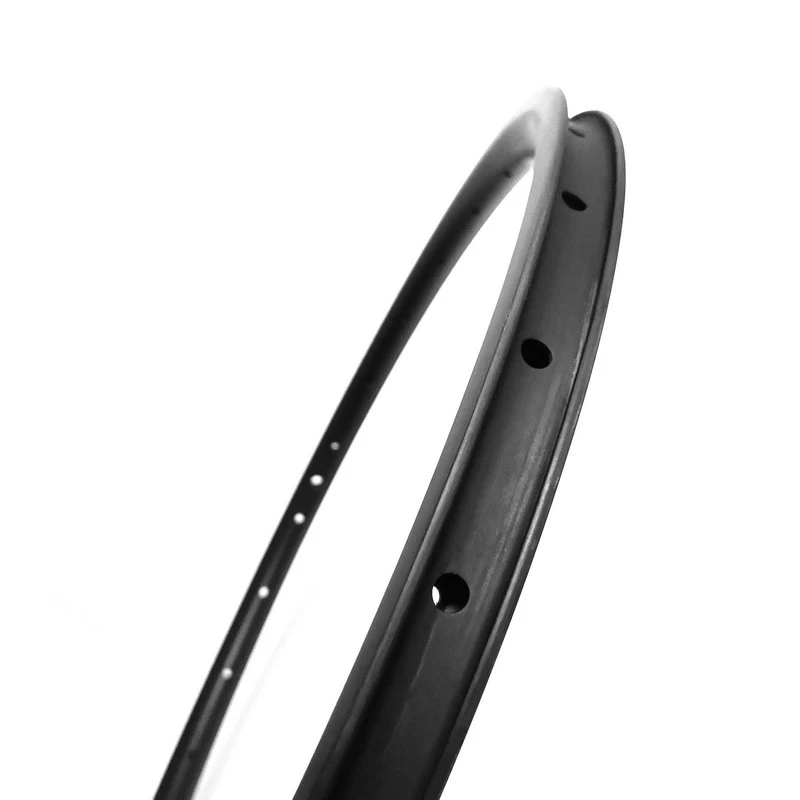

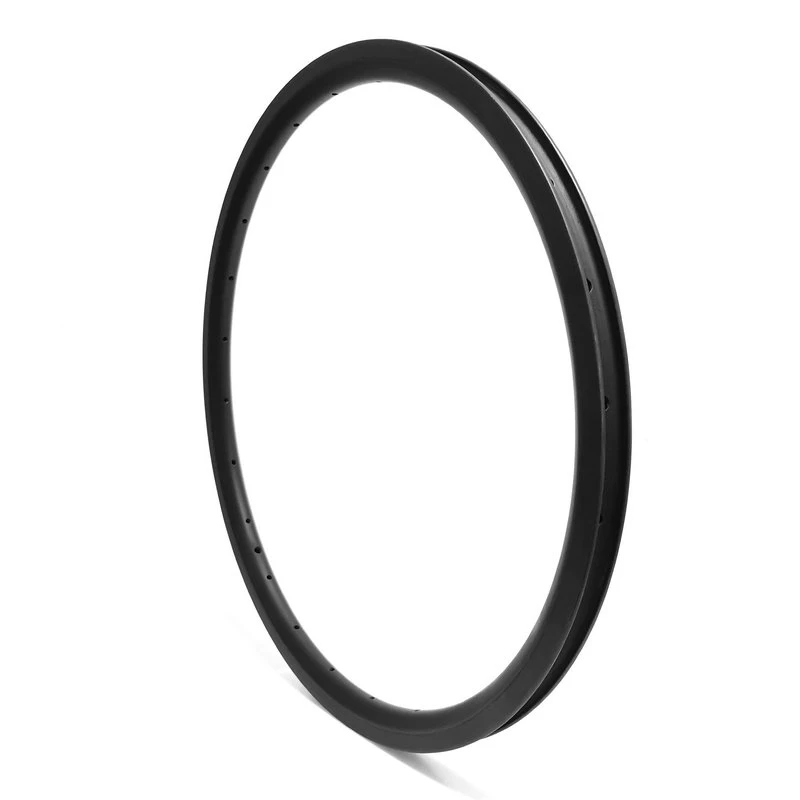

Pro 20 x 1.25" size 22.5mm wide 24mm depth 451mm carbon fiber BMX rim

Item BMX45101, weight: 310g±10, ERD 426mm. This 20" BMX rim with 15.5mm internal width can fit tyres from 1.1" to 1.4". It's light, stiff and strong for training and racing.


  • Max weight limit100kg
  • Depth24mm
  • Outer width22.5mm
  • Inner width15.5mm
  • ERD426mm
  • Typeclincher
  • Weight310g±10
  • MaterialToray T700 + T800 carbon fiber
  • Size20 inch

Product Item: Pro 20 x  1.25" size 22.5mm wide 24mm depth 451mm carbon fiber BMX rim

bmx45101 BMX carbon rim profile

This 20" BMX rim with 15.5mm internal width can fit tyres from 1.1" to 1.4". It's light, stiff and strong for training and racing.


Specification:

 Item:
 BMX45101
 Use:
 BMX
 Rim type:
 20" clincher
 Material:
 Toray T700 + T800 carbon fiber
 Tubeless ready:
 No
 Weight:
 310g±10
 External/Internal width:
 22.5mm / 15.5mm
 ETRTO:
 451mm
 Depth:
 24mm
 ERD:
 426mm
 Weave:
 UD / Marble
 Finish:
 Matte, gloss
 Spoke hole count:
 28, 32, 36 or customized
 Max weight limit:
 100kgs
 Spoke hole diameter:
 4.5mm or customized
 Assemble hole diameter:
 8.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Valve hole diameter:
 6.5mm (Presta) or 8.5mm (Schrader)
 Decal:
 Customized
 Tyre fit:
 20" x 1.1~1.4"
 Warranty:
 5 years
 Standard:
 EN standard


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
