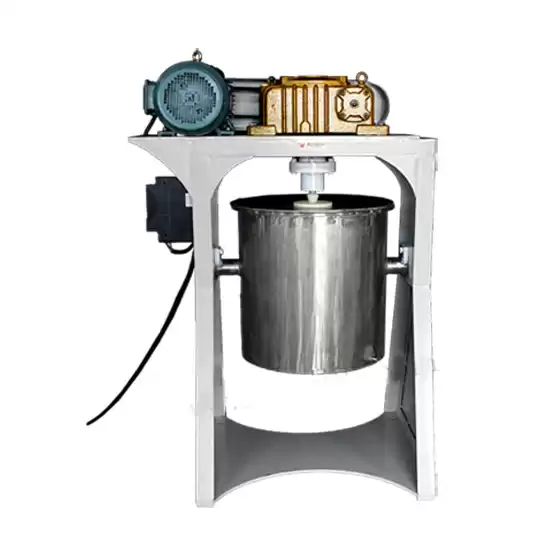

Production Type High Speed Stirred Ball Mill Machine



Stirred ball mill mainly consists of jar with inner grinding media, stirring device and other auxiliary devices such as recycling device, cooling device, timing device, speed adjusting controller, and etc. Its advantages of high efficiency and fine granularity meet technological requirements of various processes. Stirred ball mill is a kind of ideal equipment that are used to crush new materials and research painting for universities, research centers and enterprises because of its features of small batch, low power and low price.

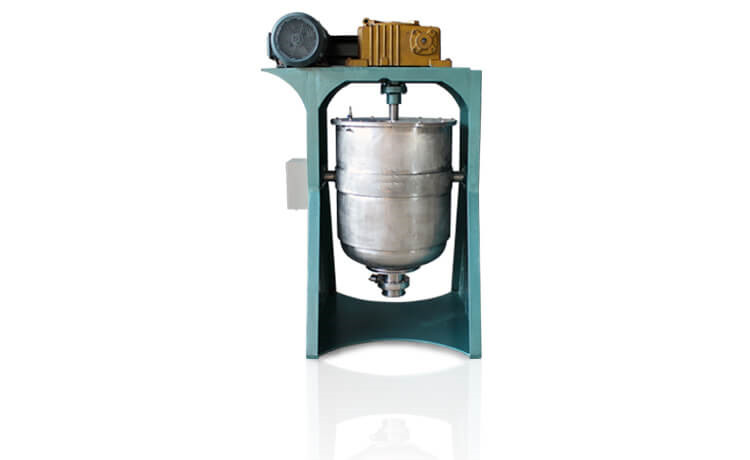

Stirred Ball MillProduction Type Stirred Ball Mill




When machine rotates with high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.



1)High utilization rate of energy, saving energy

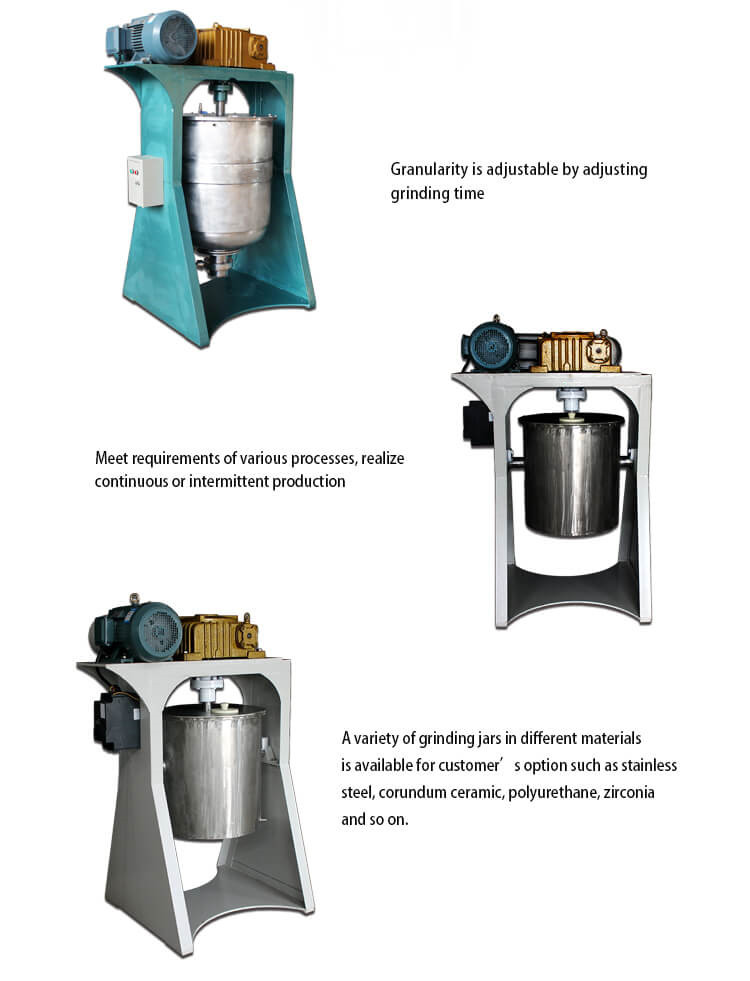

2)Granularity is adjustable by adjusting grinding time
3)Less vibration, low noise
4)Simple structure, easy operation
5)Meet requirements of various processes, realize continuous or intermittent production
6)Jar with jacket, easy to control the grinding temperature
7)Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.
8)A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.

Application Cases of Planetary Ball Mill

Production Type Stirred Ball Mill

Main Parameters of Stirred Ball Mill

Model No.

Rotate Speed
(rpm)

Volume
(L)

Load Capacity
(L)

Power Supply
(KW/V)

Available Jars

Feed Size
(mm)

Output Granularity
(µm)

Speed Control Mode

Category

JM-1L

50-1400

1

0.35

0.37KW/220V

Stainless steel
Nylon
Alumina ceramic
PU
Zirconia
Agate
PTFE

≤5

≤1µm

Frequency speed adjuster

Laboratory Scale

JM-2L

50-1400

2

0.7

0.37KW/220V

≤5

≤1µm

JM-3L

50-1400

3

1.05

0.37KW/220V

≤5

≤1µm

JM-5L

60-560

5

1.75

0.75KW/220V

≤5

≤1µm

Frequency speed adjuster
or Fixed speed setting
for buyer's option

Small Type

JM-10L

60-560

10

3.5

1.5KW/220V

≤10

≤1µm

JM-15L

60-380

15

5.25

2.2KW/380V

≤10

≤1µm

JM-20L

60-380

20

7

2.2KW/380V

≤10

≤1µm

Light Type

JM-30L

60-310

30

10.5

3.0KW/380V

Carbon steel
Stainless steel
Nylon liner
PU liner
Alumina ceramic liner
PTFE liner

≤10

≤1µm

JM-50L

60-140

50

17.5

4.0KW/380V

≤10

≤1µm

JM-100L

60-140

100

35

7.5KW/380V

≤20

≤1µm

Industrial Type

JM-200L

60-110

200

70

11KW/380V

≤20

≤1µm

JM-300L

60-110

300

100

15KW/380V

≤20

≤1µm

JM-500L

60-90

500

170

18.5KW/380V

≤20

≤1µm

JM-600L

60-90

600

200

22KW/380V

≤20

≤1µm

Besides the planetary ball mill machine, our factory provides all kinds of mill potslike stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
Production Type Stirred Ball Mill

Suggestions for Matching Solution About Mill Jars & Materials
Production Type Stirred Ball Mill


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
Production Type Stirred Ball Mill

Suggestions for Matching Solution About Grinding Medium & Materials
Production Type Stirred Ball Mill
Production Type Stirred Ball Mill


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
