Specifications
| Part Number |
PFXGP4502WADW |
| Display Size |
10.0" |
| Display Type |
TFT Color LCD |
| Resolution |
800 x 480 pixels (WVGA) |
| Display Colors |
65,536 Colors |
| Backlight |
LED |
| Application Memory |
FLASH EPROM 32 MB *1 |
| Data Backup |
FLASH EPROM 128 KB |
| Serial (COM1) |
RS-232C (D-Sub 9-pin, plug) |
| Serial (COM2) |
RS-422 / 485 (D-Sub 9-pin, plug) |
| Ethernet (LAN) |
10 / 100 Mbps (RJ-45 Modular Jack) |
| USB (Type-A) |
USB 2.0 x 1 (Type A) |
| USB (mini-B) |
USB 2.0 x 1 (mini-B) |
| Rated Input Voltage |
24 Vdc |
| Power Consumption |
10 W |
| Ambient Oper. Temp. |
0 to 50 °C [32 to 122 °F] |
| Weight Approx. |
1.075 kg [2.370] |
| Structure |
Front Panel: (IEC60529), Enclosure type 4 indoor use only (UL 50)
with screw installation fasteners, Rear Panel: IP 20 (IEC 60529) |
|

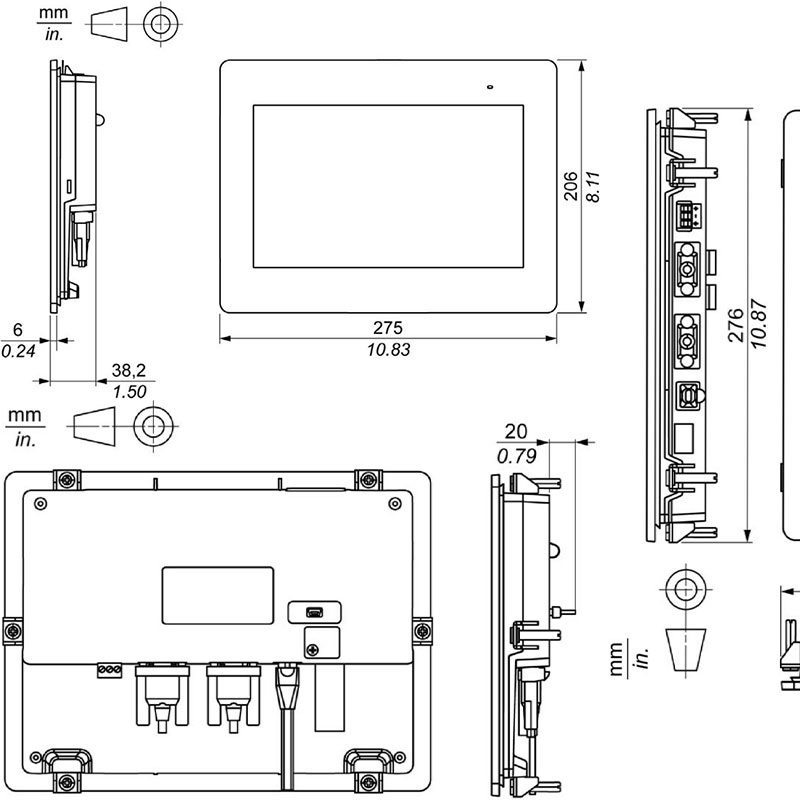

| External Dimensions |
W275 x H206 x D38.2 mm
[W10.85 x H8.11 x D1.50 in.] |
|
| Capacity available for user application. The capacity depends on how many fonts you load from the Editor software. |
|
Features:
• 10" wide screen with 65k colors
• Flexible networking connectivity options: embedded ethernet port, and two serial ports supporting over 90 protocols
• Supports both landscape and portrait modes
• Advanced software features supported on an economical hardware platform
• Real time clock with replaceable battery
• Compatible with EZ Series HMI USB accessories (Towerlight, Fingerprint Reader, Illuminated Push Buttons, Numpad)
|
 |
