Product Features
1. Power Output 5W
2. Dual Band
3. Dual Watch
4. Dual Standby
5. LED Flashlight
6. SOS Warning
7. DTMF Tone
8. ANI Code
9. PTT ID
10. FM Radio
11. Encryption
12. 1750Hz Tone
13. Customize Channel Names
14. Bluetooth Programming (Optional)
Technical Specifications
|
General
|
|
Frequency Range
|
UHF & VHF
|
|
Channel Capacity
|
128 Channels
|
|
Channel Step
|
25KHz(Wide Band), 12.5KHz(Narrow Band)
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Voltage
|
7.4V DC ± 20%
|
|
Operating Temperature
|
-20℃ ~ +60 ℃
|
|
Antenna Impedance
|
50Ω
|
|
Dimension
|
134*60*38mm(with battery pack)
|
|
Weight
|
270g(with battery pack, antenna)
|
|
Transmitter
|
|
|
Wide Band
|
Narrow Band
|
|
Output Power
|
5W
|
5W
|
|
Modulation Mode
|
16KφF3E
|
8KφF3E
|
|
Adjacent Channel Power
|
≥65dB
|
≥60dB
|
|
Singal Noise Ratio
|
≤-40dB
|
≤-40dB
|
|
Parasitic Harmonic
|
≤65dB
|
≥60dB
|
|
Spurious Emission
|
≤-36dBm
|
≤-36dBm
|
|
Audio Response
|
300Hz-3KHz
|
300Hz-3KHz
|
|
Audio Distortion
|
≤5%
|
≤5%
|
|
Receiver
|
|
|
Wide Band
|
Narrow Band
|
|
Sensitivity
|
-120dBm (20db SINAD)
|
-120dBm (20db SINAD)
|
|
Intermodulation
|
≥60dB
|
≥55dB
|
|
Adjacent Channel Selectivity
|
≥60dB
|
≥55dB
|
|
Spurious Rejection
|
≥60dB
|
≥55dB
|
|
Audio Response
|
300Hz-3KHz
|
300Hz-3KHz
|
|
Signal to Noise Ratio
|
≥45dB
|
≥40dB
|
|
Audio Distortion
|
≤5%
|
≤5%
|
|
Audio Output Power
|
1W
|
1W
|
Dual Band Dual Standby Dual Watch

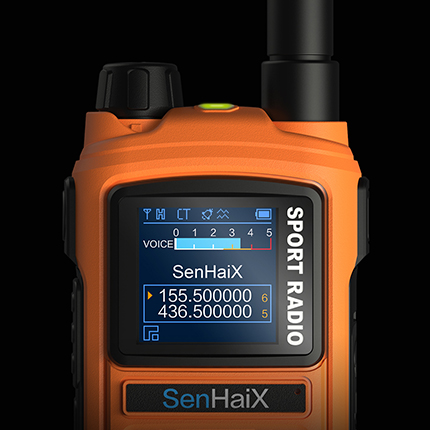

Display Mode: Frequency / CH+Frequency / CH+Name

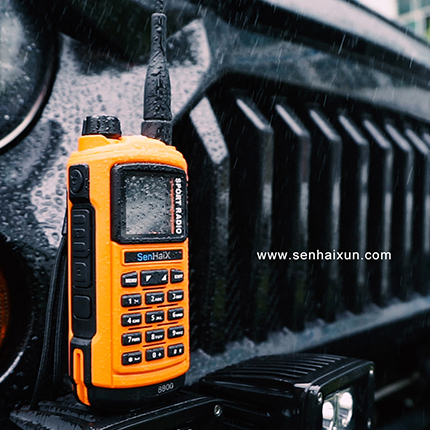

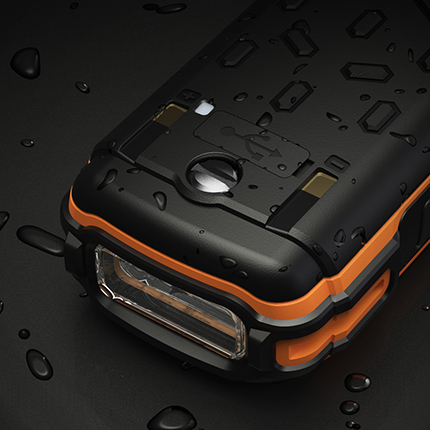

Rugged and reliable, waterproof dustproof and shatterproof
for us in harsh environments.
TPU Material with good elasticity and abrasion resistance,
durable and smooth.
SOS Panic Button Alarms for Emergency Communications
Emergency Alarm Mode: Site/Tone/Code

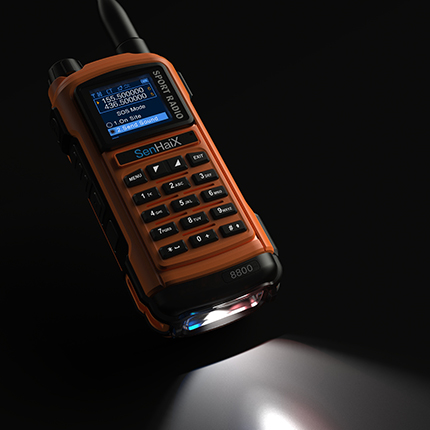

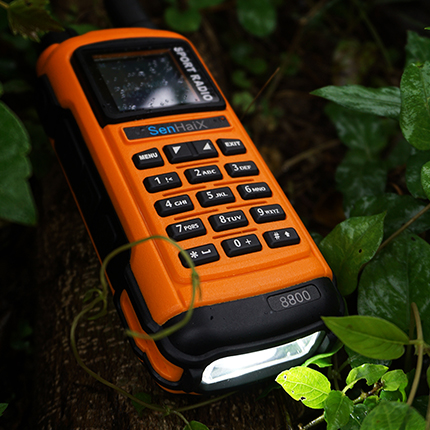

LED Flashlight with SOS Strobe Function

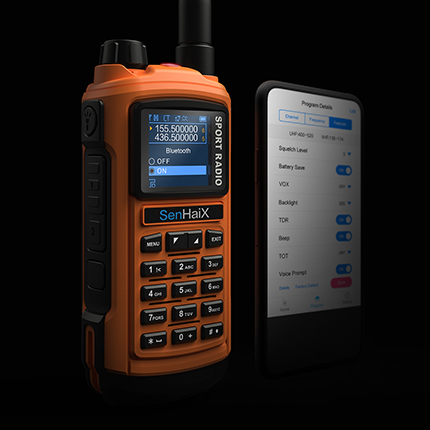

Bluetooth Programming Function
You can modify the frequency, channel information function
setting on the dedicated APP.

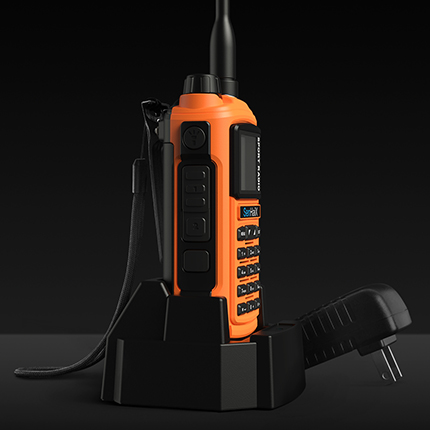

Standard Accessories
Battery, Antenna, Charger, Adaptor, Belt Clip, Hand Strap
