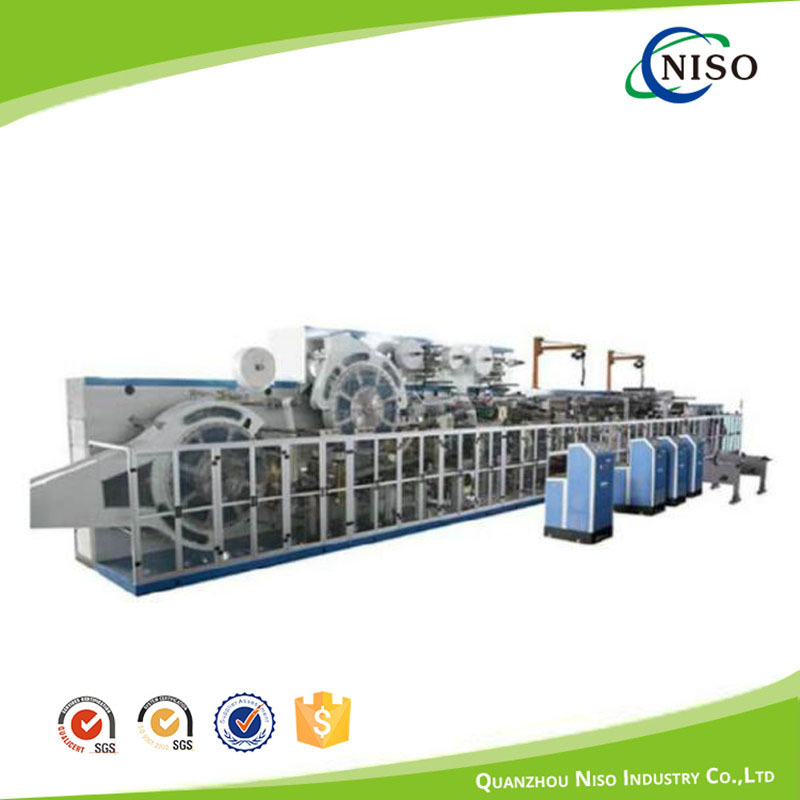

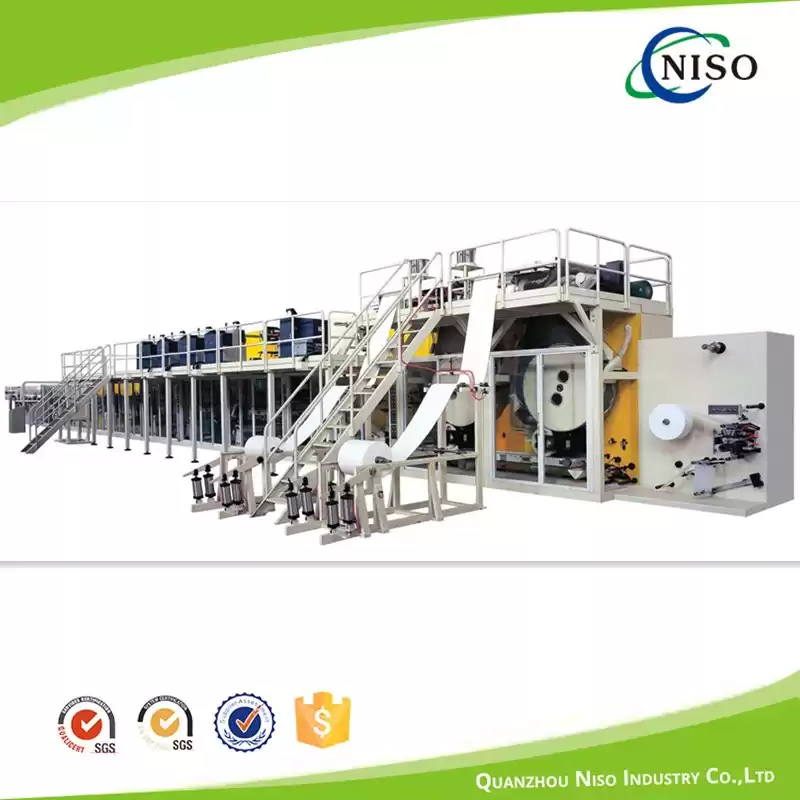

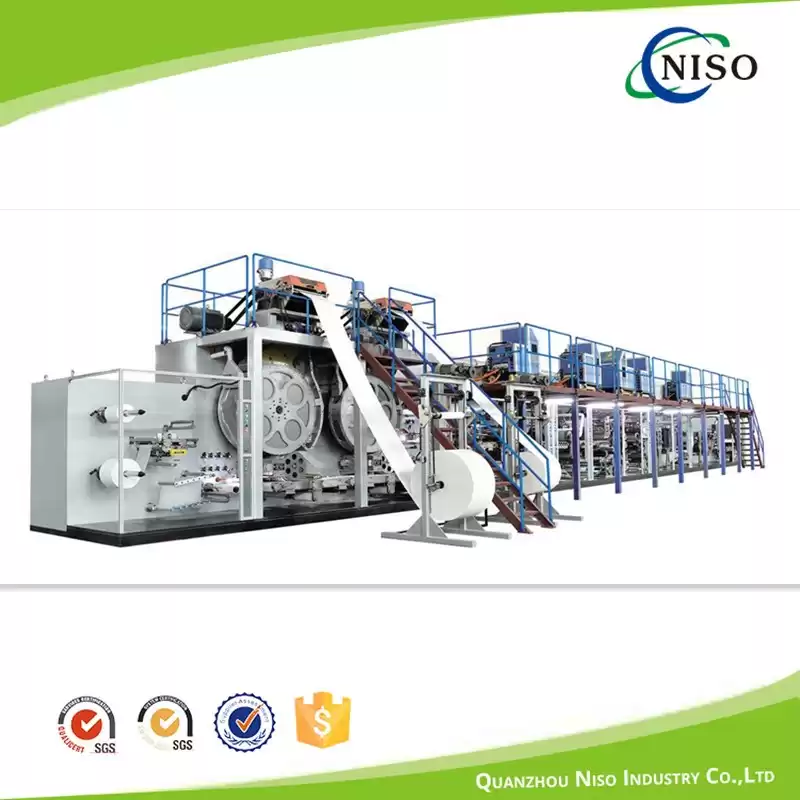

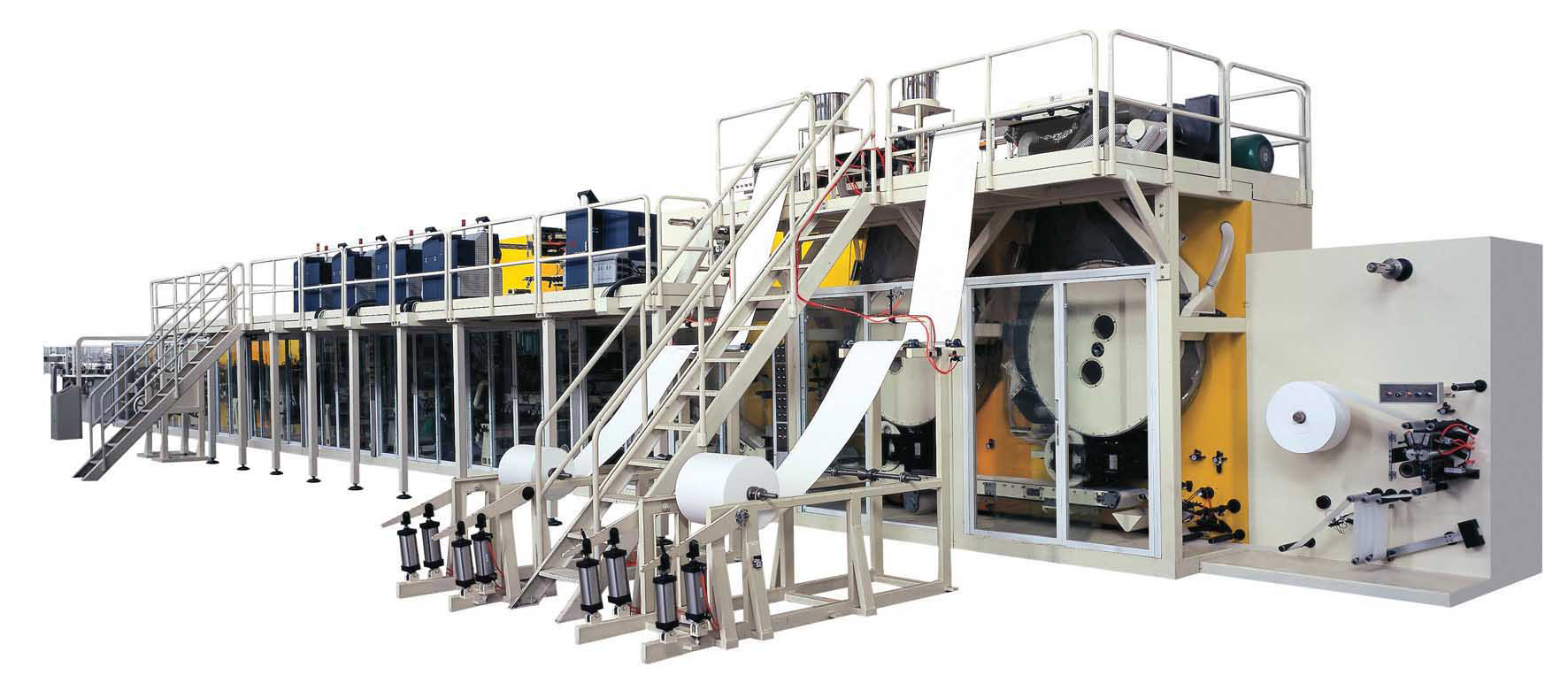

Professional Full Servo Adult Diaper Machine

Full servo adult diaper machine is a full auto machine.It can do 4 sizes.



Professional Full Servo Adult Diaper Machine



adult diaper machine







Machine parameter


Model  NS-CNK400-SV
Name  Full servo adult diaper machine
Automaticly  Full auto
Product size S, M, L, XL
Design speed  400 pcs/min
Production speed  300 pcs/min
Machine power  380V, 50HZ, 3 phase 8 wire
Machine capacity  380KW
Machine size  35m×5m×5m(L×W×H)
Machine color  Customized
Rate of pass  ≥88%
Air pressure  0.6-0.8Mpa



Machine description


Machine total system

Double pulp crusher system

Double SAP feeding system

Double Drum forming system

Lower tissue paper feeding system

Upper tissue paper feeding system

Core wrapping system

Smooth roller compacting system

Web roller compacting system

ADL feeding & cut system

Core cutting system

Hydrophobic non woven feeding system

Hydrophilic non woven feeding system

Wasit band feeding & cut system

Backsheet feeding system

Frontal tape feeding system

Leg Spandex feeding system

Side tape feeding system

Arc cutting system

Edge scrap collecting system

Vertical folding system

Product compacting system & final cutting

NO.1 rejection output

Bi & Tri folding system

NO.2 rejection output

Out put system



About NISO


NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.

NISO covers an area of 5000 square meters, gets CE, ISO, SGS.

NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.

NISO will be your consultancy and partner to reach win-win career together.


Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.

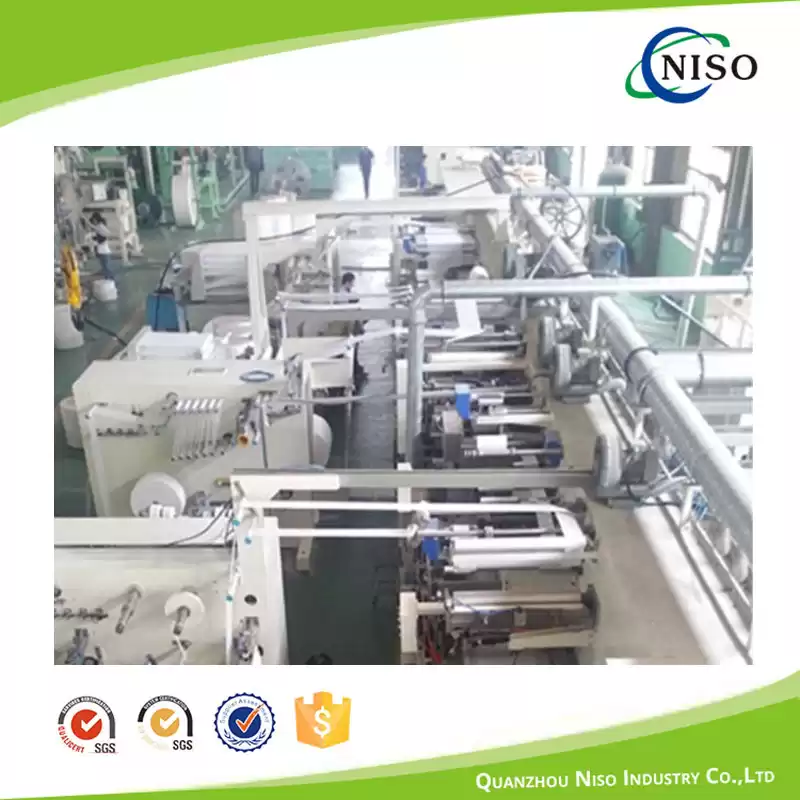

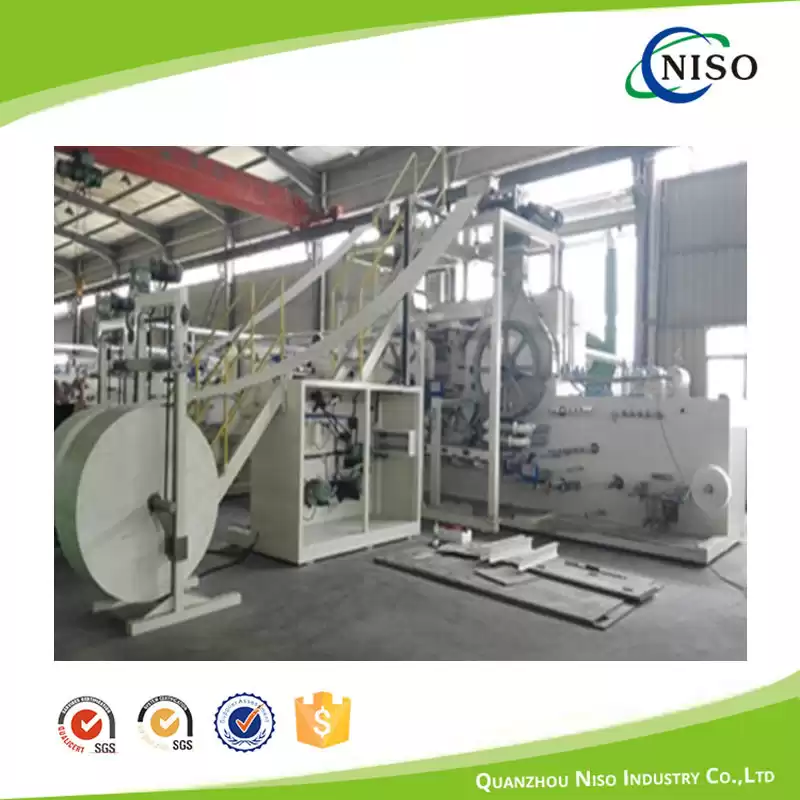

Factory processing map



Packing and packaging diagram

Our customers

After-sales service
