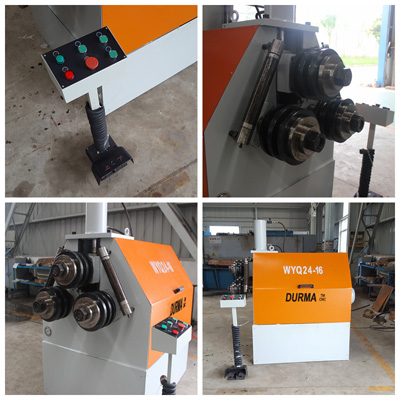

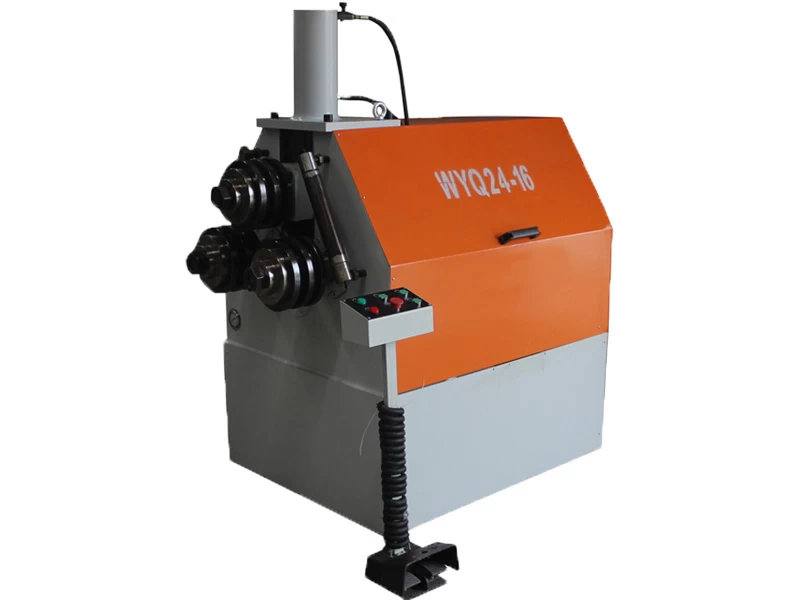

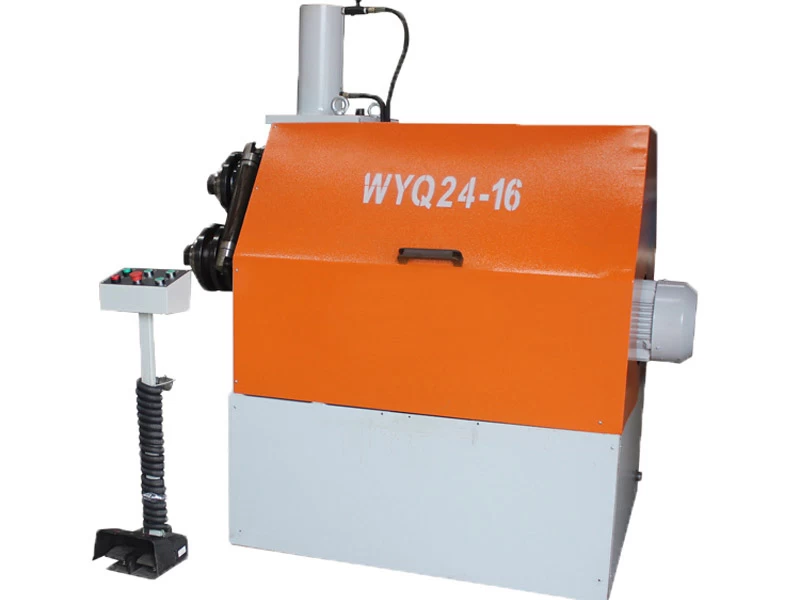

Product Item: Profile Bending Machine WYQ24 Series
Main Features:

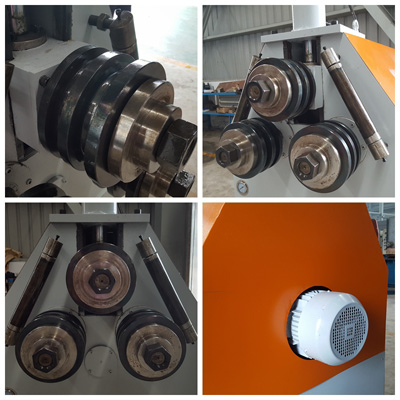

1.Adopt streamline design originating European, tempering Furnace treatment of steel machine frame to eliminate machine stress.
2.Three shafts all driven by motor.
3.The shafts are made by special steel through hardening treatment.
4.Hydraulic drive of upper shaft can move up and down.
5.With horizontal and vertical two kinds of working modes.
6.Aluminum Profile Bending Machine has standard die.
7.Sheet Bending Machine has guide roller.
8.High- precise brake motor for bending machine.
9.Moveable operation workbench.
Technical Parameters:
Technical Parameter
|
WYQ24-6
|
Max. Bending Section Modulus
|
6
|
Rolling Speed(m/min)
|
6
|
Yield Strength (Mpa)
|
450
|
Max. Bending Size(mm)
|
Angle Inside Bending
|
40x5
|
Angle Outside Bending
|
50x5
|
U-steel Outside Bending
|
8
|
U-steel Inside Bending
|
8
|
Flat Horizontal Bending
|
100x18
|
Flat Vertical Bending
|
50x12
|
Round Pipe
|
42x4
|
Round Steel
|
38
|
Square Steel
|
45x3
|
|
Please contact us for other parameters.
|
Accessory List:
|
No
|
Accessory
|
Model / Manufacturer
|
Configuration
|
|
1
|
Controller
|
■ CNC Controller
|
Standard
|
|
2
|
Electrics
|
Schneider-France / Schneider-France
|
|
3
|
Main Motor
|
Siemens-Germany
|
|
4
|
Hydraulic System
|
Bosch Rexroth- Germany
|
|
5
|
Oil Pump
|
Oil Pump
|
|
6
|
Sealing Ring
|
PAEKER-USA/NKO-Japan
|
|
7
|
Oil Pipe
|
High-pressure Pipe
|
|
8
|
Standards
|
■CE □CSA ■NR-12 □OSHA
|
|
