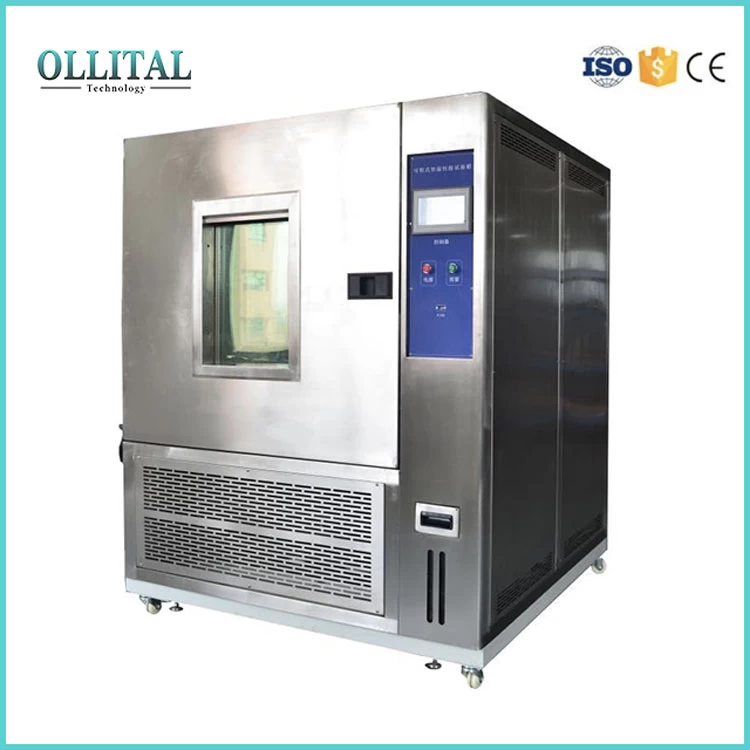

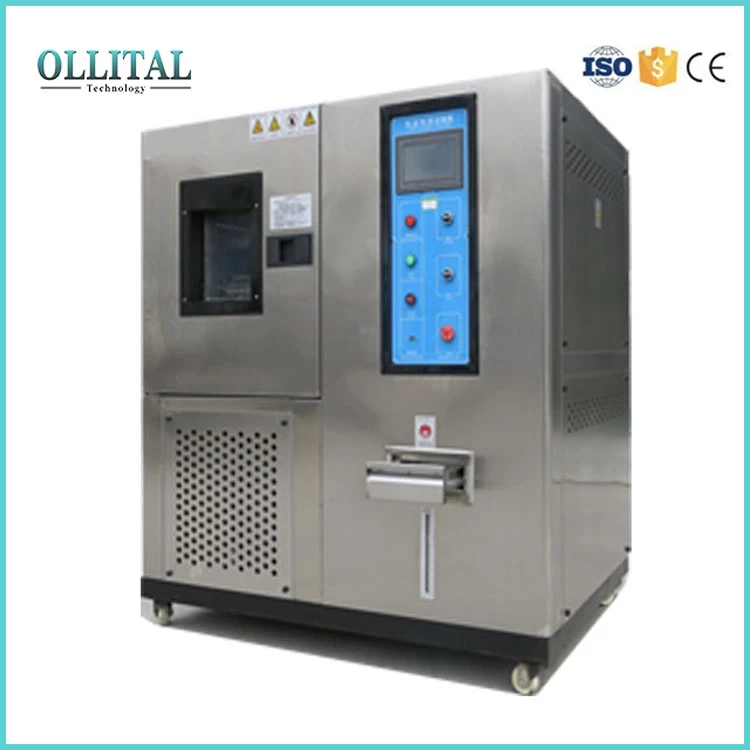

Programmable Environmental Chamber With Humidity And Temperature Control
|
Item Name
|
Temperature and humidity test chamber/machine
|
|
Capacity(L)
|
80, 150, 225, 408, 500, 800, 1000L(optional, or custom-made)
|
|
Performance
|
Control Methods
|
Balanced temperature humidity control system (BTHC) PID intelligent adjust
|
|
Temperature and Humidity Range
|
-70°C~150°C; 20%-98%R.H
|
|
Accuracy
|
±1.0°C, ±2%RH / ±0.5°C, ±2%RH
|
|
Resolution
|
±0.1°C, ±0.1%RH / ±1°C, ±3%RH
|
|
Heating Rate
|
≤3°C/min
|
|
Cooling Rate
|
Average 1°C/min
|
|
Internal Material
|
SUS#304 stainless steel
|
|
External Material
|
SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray)
|
|
Insulation Material
|
Superfine wool + polyurethane foam
|
|
Regulator
|
Cooling Mode
|
Mechanical binary refrigeration way
|
|
Compressor
|
Closed compressor (French Tecumseh or German Copeland )
|
|
Refrigerant
|
R23/R404A
|
|
Condensing Way
|
Air-cooling and Water-cooling
|
|
Humidifier
|
Stainless steel humidifying tube
|
|
Airflow Way
|
Broadband-type forced air circulation
|
|
Controller
|
Operate Interfaces
|
Korea TEMI 880 LCD touch screen
|
|
Memory capacity
|
120 groups, each program 100 segment
|
|
Input
|
PT100 or T thermocouple
|
|
Communicate Interface
|
RS-232
|
|
Subsidiary function
|
Upper and lower alarm; self diagnosis ; alarm display(fault cause); time sequence protection (Automatic turn on or turn off )
|
|
Water supply
|
Water supply
|
Circulating water supply
|
|
Water tank
|
Built-in hand type(30Kg capacity)
|
|
Water quality
|
resistance >500Ω.m
|
|
Standard Configuration
|
One observe window(Double hollow toughened glass);one test pattern D50mm(on the left); 2 layers sample frame; one floodlight(fluorescent lamp);one water feeding tank;
|
|
Safety device
|
Power leakage protection; Dry heating protection; Water protection Over-temperature protection switch; Temperature deviation alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc.
|
|
Power supply
|
220VAC ±10%50/60Hz & 380VAC ±10%50/60Hz
|
We provide high-quality Temperature Humidity Chamber with difference capacity that meet every customer's need, custom design are available.
1.Temperature Humidity Climatic Test Chamber Price is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
2.Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

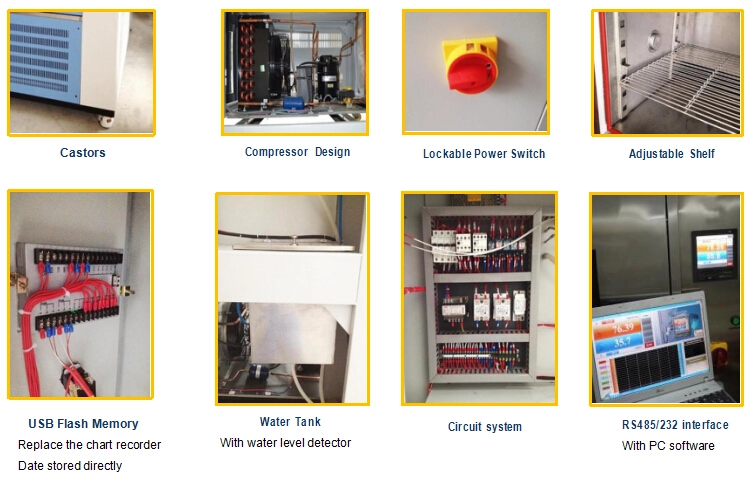

• LED Touch Screen (Korea Temi)
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable (can have 100pattern, each pattern has 999 segment)
• With Humidity Sensor
• With RS485/232 output to computer
• Window Software
• Remote fault notification(opntional)
• With Viewing Window
• With thermostats (prevent overheat)
• Cable Ports(50mm diameter)
• With Data Storage fuction by USB Flash Memory
• Protection (phase protection, overheat, overcurrent etc)
• Water Tank with level detector
• Adjustable Shelf
• Anti-condensation technology of the workroom .(Optional)
• User friendly three color LED indicator lamp ,easy to read working condition

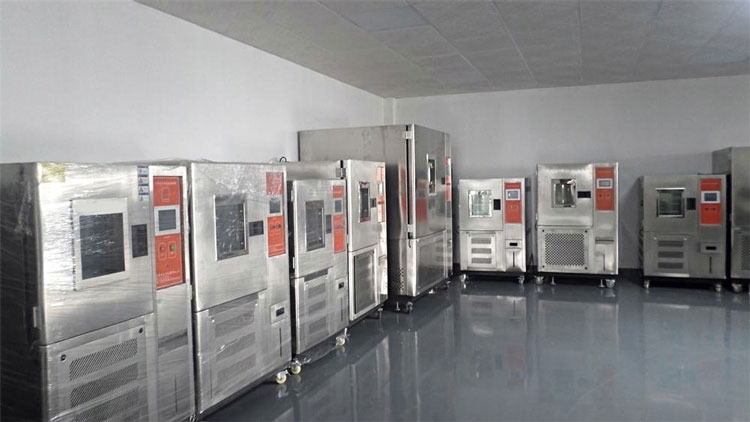

Professional manufacture Temperature Humidity Test Chamber over 11 years. We focus on every detail, high precise is the key for a test equipment.
