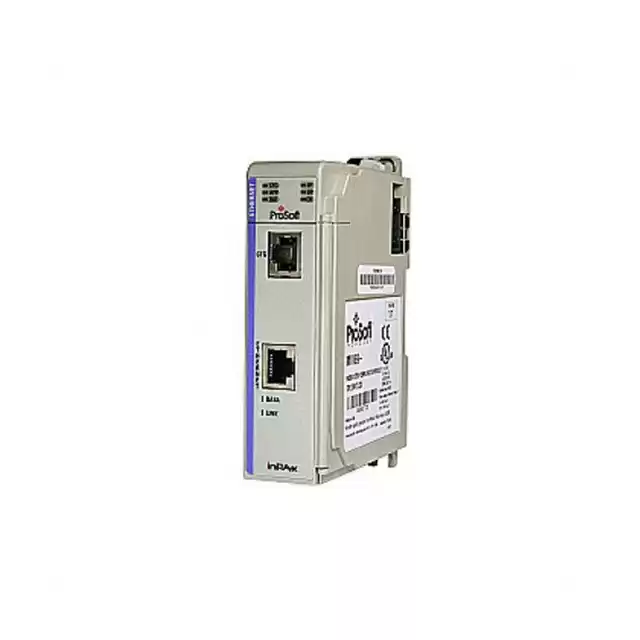

PROSOFT MVI46-DFNT EtherNet/IP Client/Server Communication Module

MVI46-DFNT EtherNet/IP Client/Server Communication Module



The MVI46 EtherNet/IP (DF1 for Ethernet) Client/Server

Communication Module is an SLC backplane compatible

module that allows SLC processors to interface easily

with EtherNet/IP protocol (Explicit Messaging)

compatible devices and hosts. Devices commonly

supporting the protocol include Rockwell Automation

PLCs, and host HMI systems.

The MVI46-DFNT module is a single slot solution that

provides a powerful connection between Rockwell

Automation's SLC processor and EtherNet/IP (DF1 for

Ethernet) network applications.



The module can send read or write commands to remote

devices on the EtherNet/IP network. The MVI46-DFNT

also has 20 servers that allow the module to receive

commands from remote devices. The MVI46-DFNT

Pass-Through server allows the user to edit and transfer

the SLC ladder logic using an Ethernet connection. Up to

100 commands can be configured by the user.



Single Slot – 1746 backplane compatible (Local or

extended I/O rack only. Remote rack not supported)



The module is recognized as an Input/Output

module and has access to processor memory for

data transfer between processor and module using

M0/M1 files



Ladder Logic is used for data transfer between

module and processor. Sample ladder file included



Configuration data obtained from configuration text

file downloaded to module. Sample configuration file

included

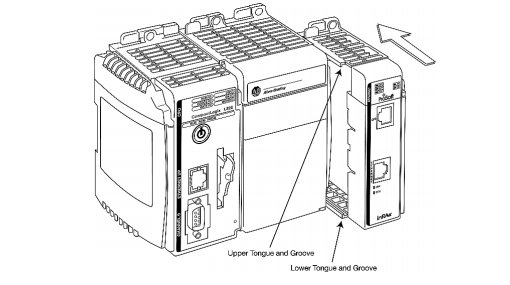

Align the module using the upper and lower tongue-and-groove slots with the

adjacent module and slide forward in the direction of the arrow.

Move the module back along the tongue-and-groove slots until the bus

connectors on the MVI69 module and the adjacent module line up with each

other.

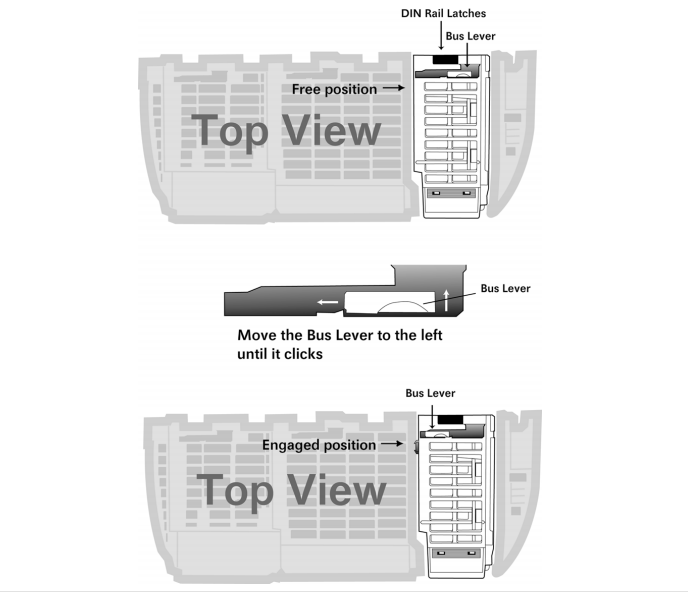

Push the module’s bus lever back slightly to clear the positioning tab and

move it firmly to the left until it clicks. Ensure that it is locked firmly in place.

Close all DIN-rail latches.
