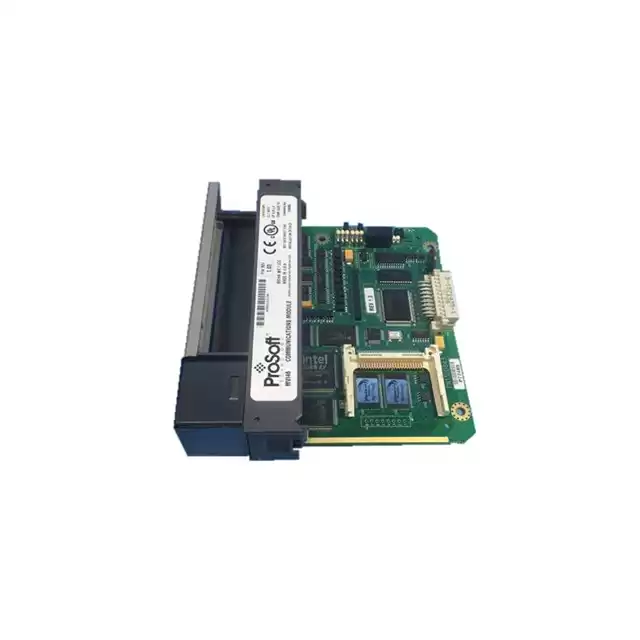

PROSOFT MVI69-ADM 'C' Programmable Application Development Module

'C' Programmable Application Development Module



The MVI69 Application Development Module allows user-developed 'C' applications to operate on the CompactLogix / MicroLogix platform. The ADM is a powerful tool for speeding up custom ASCII data communications or protecting a proprietary algorithm.

The MVI69-ADM module is a single-slot, backplane compatible solution for the CompactLogix / MicroLogix platform. This module supports two fully isolated serial ports, providing integration of the many serial field devices. The MVI69-ADM module has three serial ports, two of which are isolated for field interfaces:

CFG: Debug/configuration RS-232 

PRT1: Application RS-232, RS-422 or RS-485 

PRT2: Application RS-232, RS-422 or RS-485

Single-slot - 1769 backplane compatible

The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

Ladder Logic is used for data transfer between module and processor

Supports all CompactLogix and MicroLogix 1500 LRP Controllers except 1769-L23E-QBFC1B, 1769-L16x, and 1769-L18x

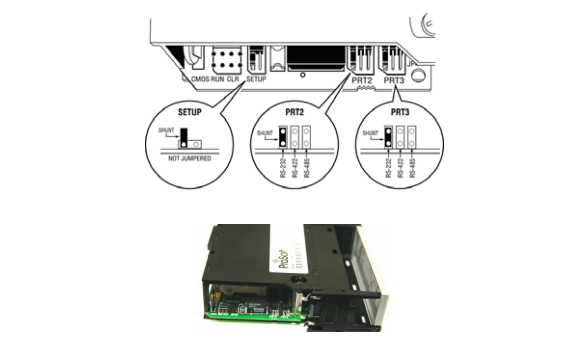

PRT1 and PRT2 are jumper configured for direct or multi-drop field communication. The application program can be written to control the two application ports independently, allowing maximum flexibility in the design.
