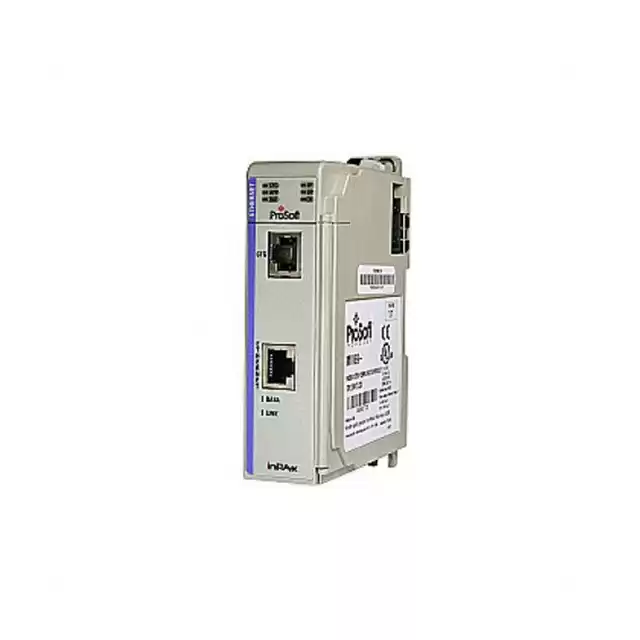

PROSOFT MVI69-MNET CompactLogix and MicroLogix 1500 Platform Modbus TCP/IP Communication Module

CompactLogix and MicroLogix 1500 Platform Modbus TCP/IP Communication Module



The MVI69-MNET module requires the following minimum hardware and

software components:

 Rockwell Automation CompactLogix processors or MicroLogix 1500 LRP

processor, with compatible power supply and one free slot in the rack, for the

MVI69-MNET module. The module requires 800 mA of available power.

Important: The MVI69-MNET module has a power supply distance rating of 2 (L43 and L45

installations on first 2 slots of 1769 bus).

Important: For 1769-L23x processors, please make note of the following limitations.

 1769-L23-QBFC1B = 800 mA at 5 Vdc (One MVI69-MNET will use all 800 mA of available

power. No other modules can be used with an MVI69 module connected to this processor.)

 1769-L23E-QB1B = 1000 mA at 5 Vdc (One MVI69-MNET will use 800 mA of available power.

One other module can be used on this rack provided it consumes less than 200 mA at 5 Vdc.)

 1769-L23E-QBFC1B = 450 mA at 5 Vdc (No MVI69 module can be used with this processor.)

 Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500

(MicroLogix) programming software

 Rockwell Automation RSLinx communication software

 Pentium® II 450 MHz minimum. Pentium III 733 MHz (or better)

recommended

 Supported operating systems:

o Microsoft Windows XP Professional with Service Pack 1 or 2

o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3

o Microsoft Windows Server 2003

 128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

 100 Mbytes of free hard disk space (or more based on application

requirements)

 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color

1024  768 recommended)

 CD-ROM drive

 HyperTerminal or other terminal emulator program capable of file transfers

using Ymodem protocol.

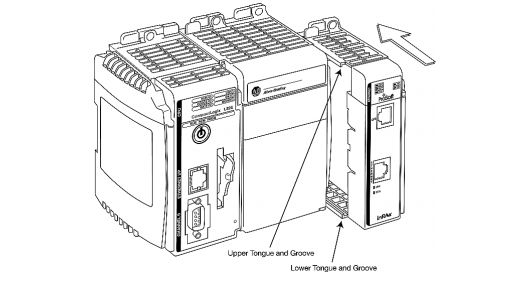

Align the module using the upper and lower tongue-and-groove slots with the

adjacent module and slide forward in the direction of the arrow.

Move the module back along the tongue-and-groove slots until the bus

connectors on the MVI69 module and the adjacent module line up with each

other.
