Specification DescriptionForm Factor Single Slot 1794 Backplane compatible Locate in any slot of Backplane Backplane current load 20 mA @ 5 VDC.
|
|
|

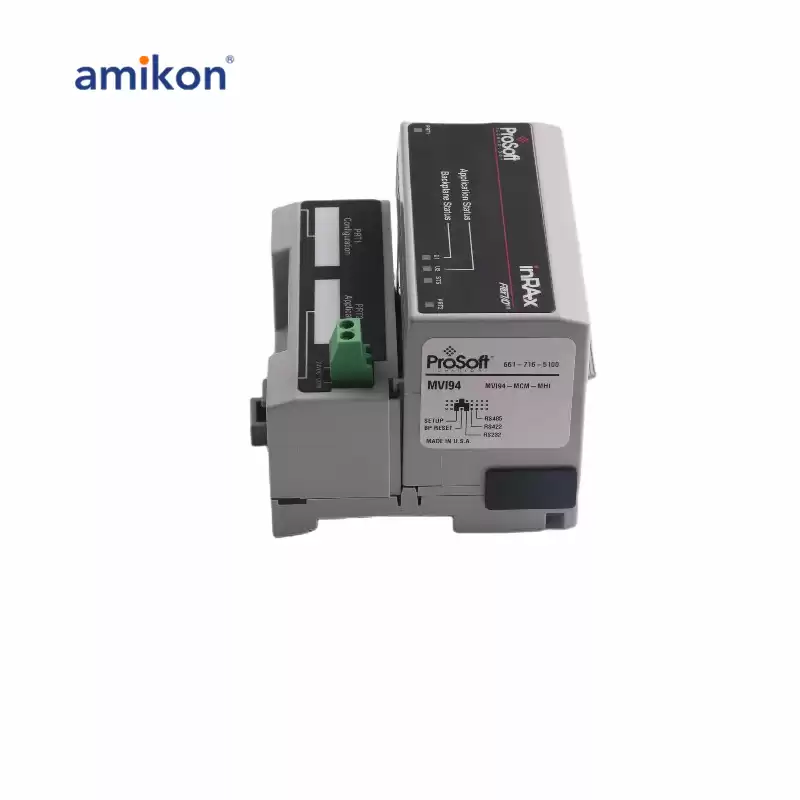

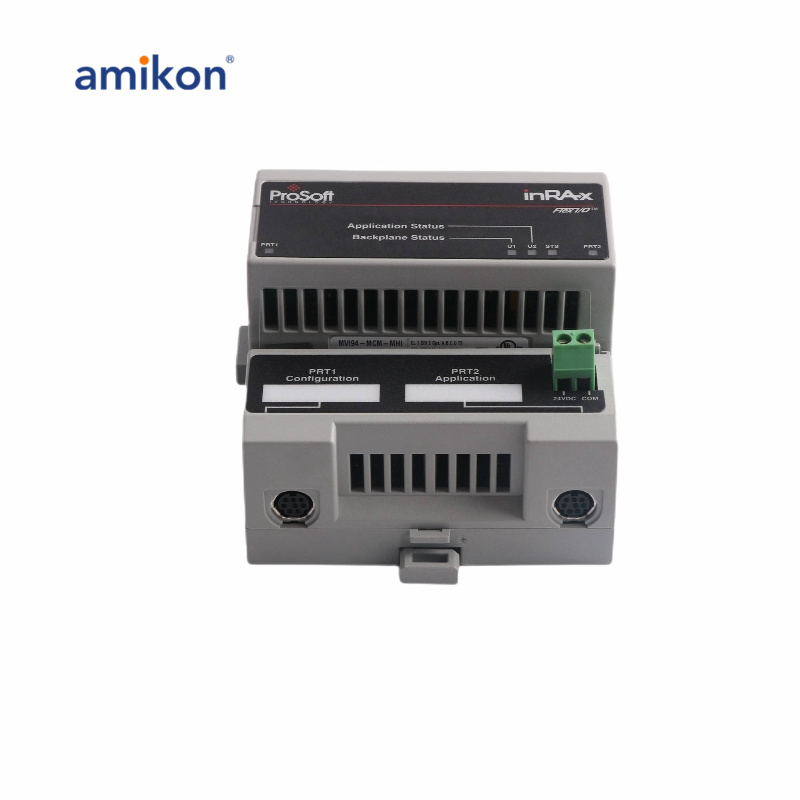

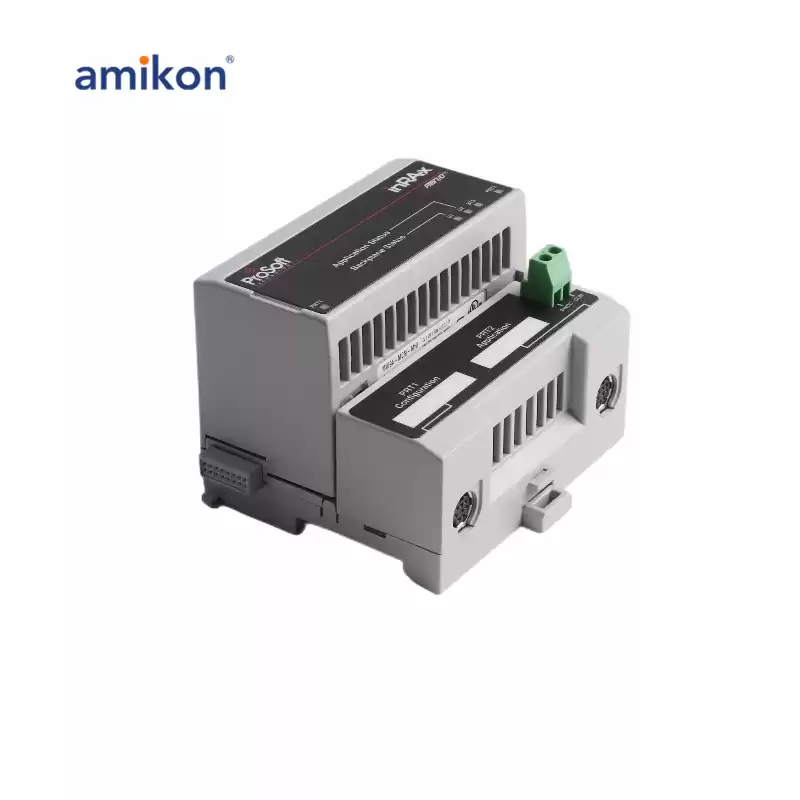

MVI94-MCM-MHI Data sheet
|
External power supply 12 VDC to 24 VDC 340 mA to 170 mA Operating temperature 32° F to 131° F (0° C to 55° C) Storage temperature -40° F to 185° F (-40° C to 85° C)
|
|
Shock 30 g operational 50 g non-operational Vibration 5 g from 10 to 150 Hz
Relative humidity 5% to 95% (without condensation) LED indicators Module status Backplane transfer status Application status Serial activity and error LED status
|
|
Configuration Serial port (PRT1) Mini-DIN RS-232 Hardware handshaking
Application serial Port (PRT2) Mini-DIN RS-232/422/485 jumper selectable 500 V optical isolation from backplane
|
|
