Products Description:

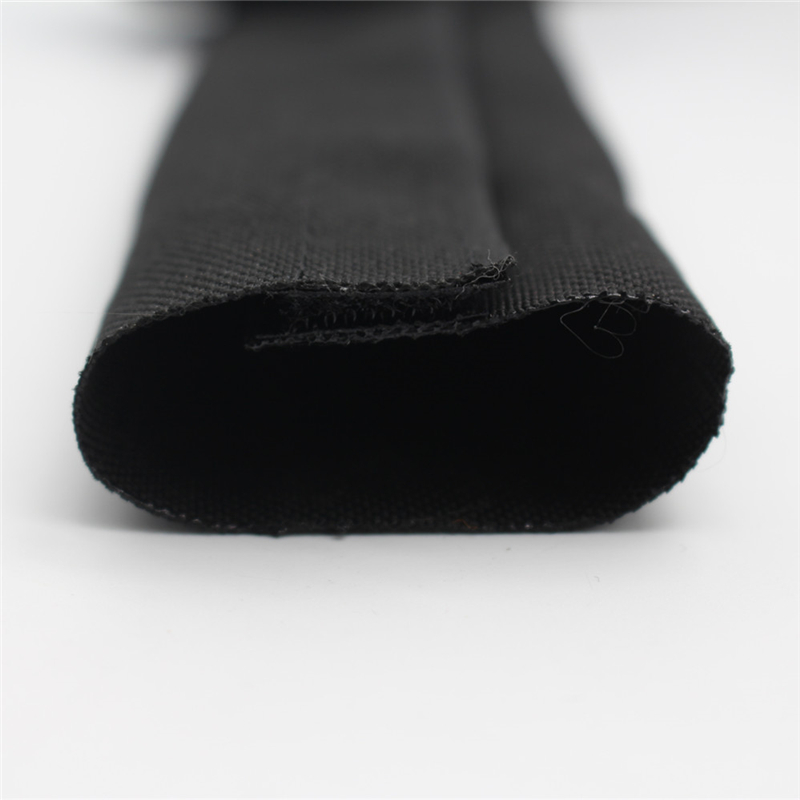

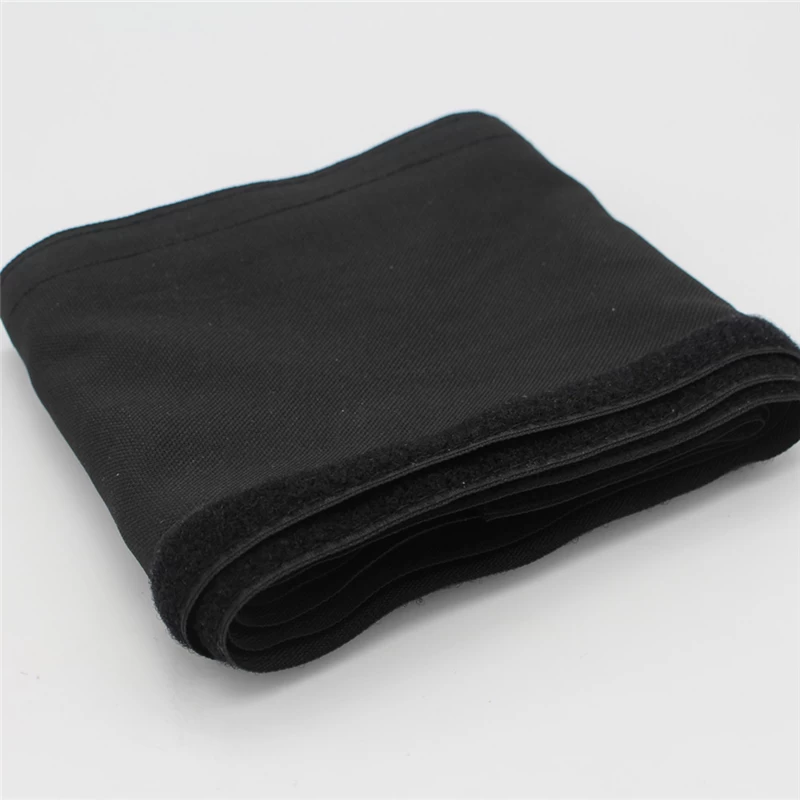

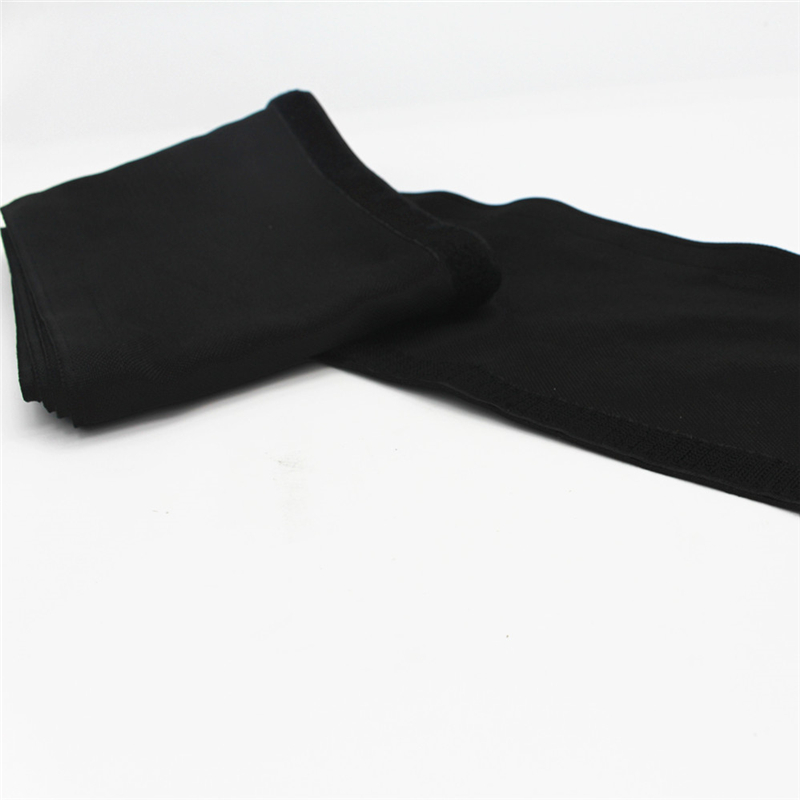

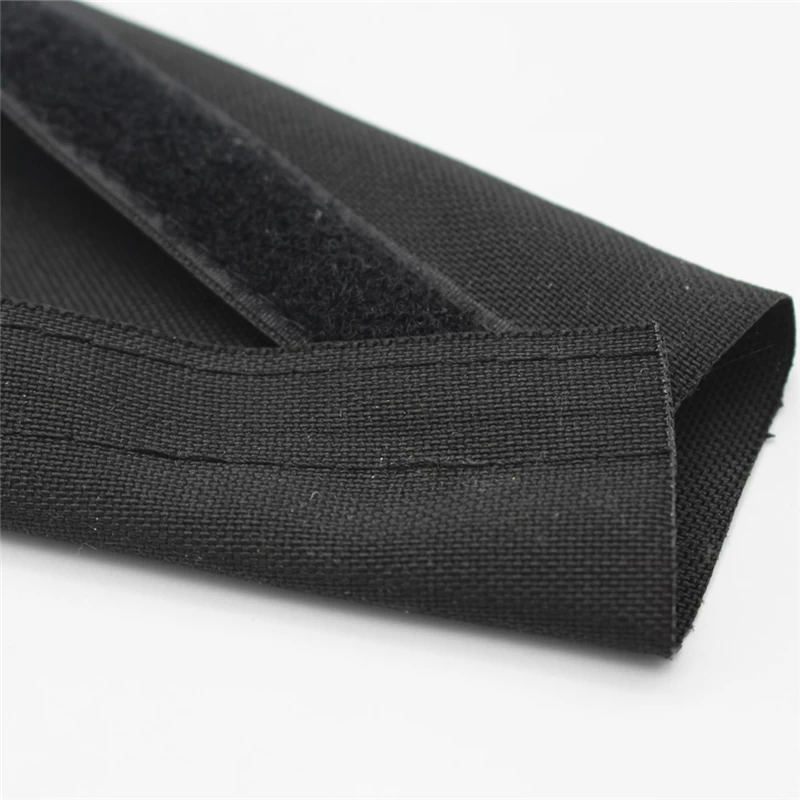

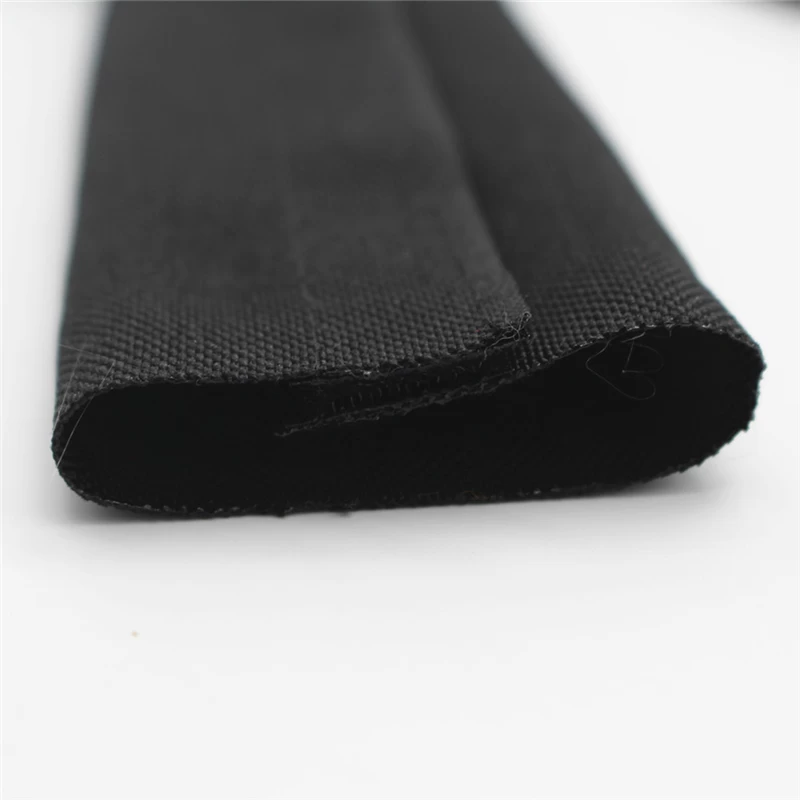

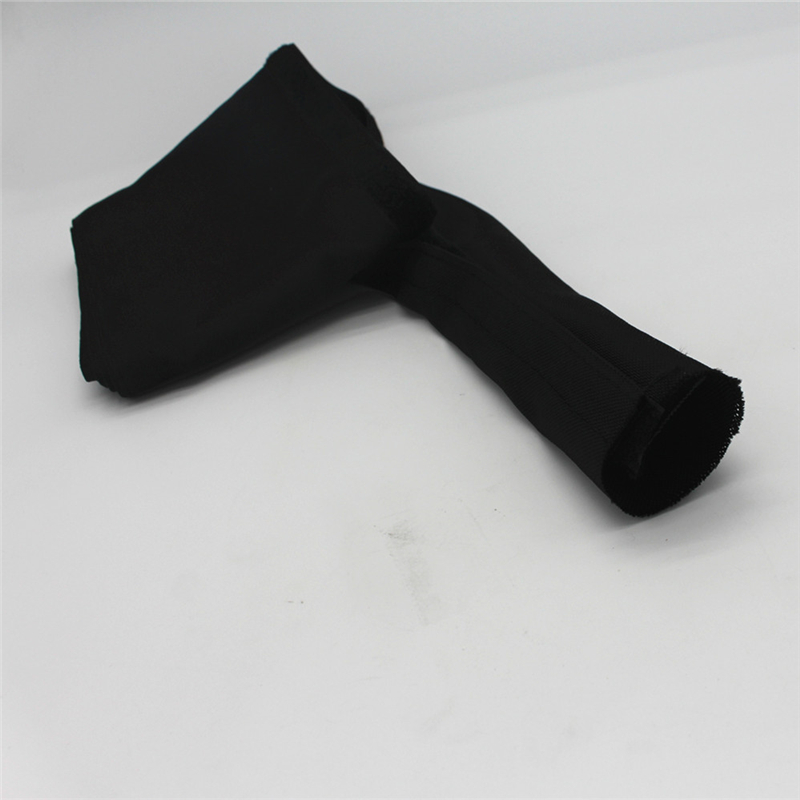

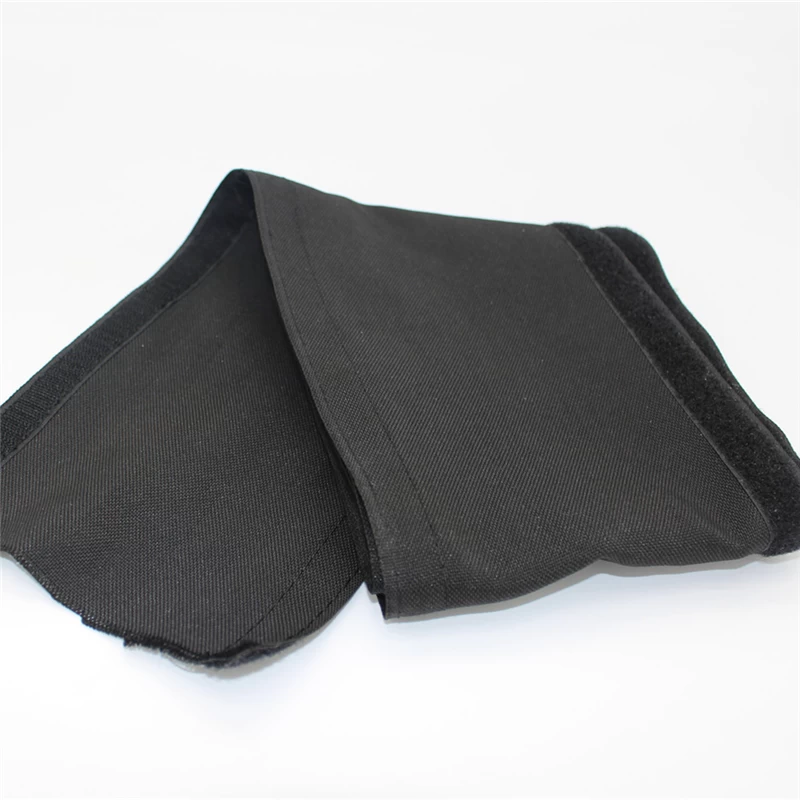

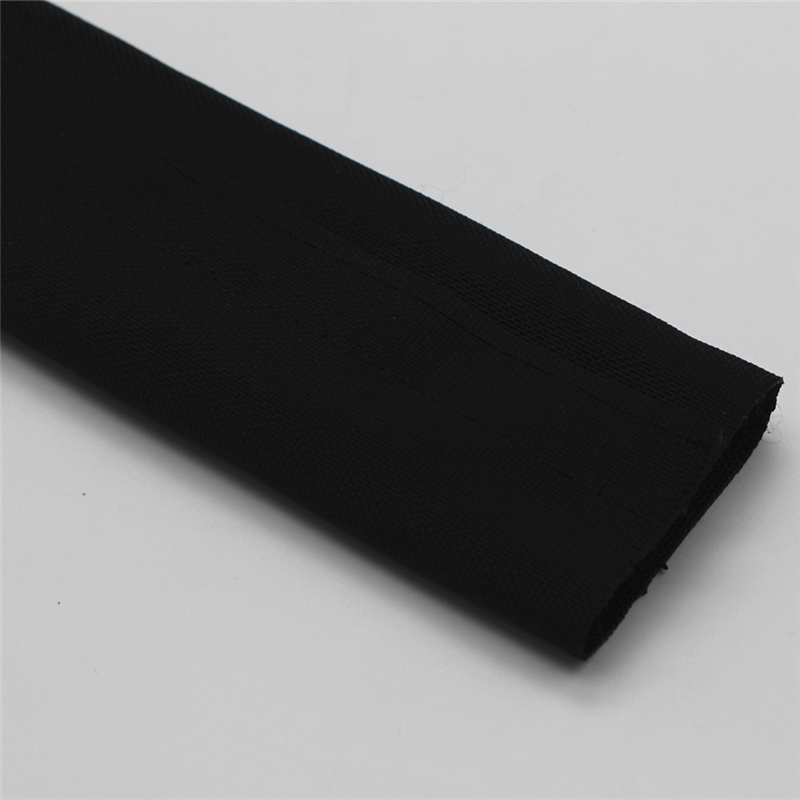

VNPS nylon protective sleeve with velcro is made by nylon multifilament. The Velcro hook and loop closure allows for easy installation on hoses and cables that cannot be removed to add a continuous sleeve. Also allows for easy retrofit, inspection or replacement.
Features:
It is used to protect people, environment and machinery against any possible hydraulic hose oil leakage or spill.
The tight woven construction can provide excellent abrasion resistance and high degree of burst resistance.
Application:
It is widely used to protect hydraulic pipes, rubber hose ,plastic pipes, wire harness from damage, this kind of sleeve can also be used in industrial and construction fields where outstanding hose productions are needed.
Specifications:
|
DATASHEET
|
|
Part number
|
Inside Diameter
|
Thickness
|
Meter for spool
|
|
mm
|
mm
|
meter
|
|
VNPS-21
|
21
|
1
|
50
|
|
VNPS-27
|
27
|
1
|
50
|
|
VNPS-34
|
34
|
1
|
50
|
|
VNPS-40
|
40
|
1
|
50
|
|
VNPS-46
|
46
|
1
|
50
|
|
VNPS-52
|
52
|
1
|
50
|
|
VNPS-62
|
62
|
1
|
50
|
|
VNPS-80
|
80
|
1
|
50
|
|
VNPS-100
|
100
|
1
|
50
|
|
VNPS-115
|
115
|
1
|
50
|
|
VNPS-30
|
20
|
1.5
|
50
|
|
VNPS-21.75
|
21.75
|
1.5
|
50
|
|
VNPS-24
|
24
|
1.5
|
50
|
|
VNPS-28.1
|
28.1
|
1.5
|
50
|
|
VNPS-32.2
|
32.2
|
1.5
|
50
|
|
VNPS-34.9
|
34.9
|
1.5
|
50
|
|
VNPS-37.7
|
37.7
|
1.5
|
50
|
|
VNPS-41.6
|
41.6
|
1.5
|
50
|
|
VNPS-45.1
|
45.1
|
1.5
|
50
|
|
VNPS-47.2
|
47.2
|
1.5
|
50
|
|
VNPS-53.5
|
53.5
|
1.5
|
50
|
|
VNPS-56.1
|
56.1
|
1.5
|
50
|
|
VNPS-61.4
|
61.4
|
1.5
|
50
|
|
VNPS-67
|
67
|
1.5
|
50
|
|
VNPS-76
|
76
|
1.5
|
50
|
|
VNPS-82.2
|
82.2
|
1.5
|
50
|
|
VNPS-86.8
|
86.8
|
1.5
|
50
|
|
VNPS-98
|
98
|
1.5
|
50
|
|
VNPS-108
|
108
|
1.5
|
50
|
|
VNPS-110.7
|
110.7
|
1.5
|
50
|
|
VNPS-124.9
|
124.9
|
1.5
|
50
|
|
VNPS-139
|
139
|
1.5
|
50
|
|
Technical Datasheet
|
|
Material
|
Nylon
|
|
Working temperature
|
-60℃ - +160℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+260℃
|
|
Standard Color
|
Black
|
|
Standard Thickness
|
1 mm
|
|
MOQ
|
500 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special color upon request.
Special size, length, package upon request.
Customs LOGO upon request.
