Overview

Brand Name:  Huawei

Model Number:  PSU1600-AC

Product Number:  CR5D0PSUAC00

Discription:

02310RBJ PSU1600-AC Huawei NE20E-S Router 1600W AC Power Module CR5D0PSUAC00 For Huawei NE20E-S8/NE20E-S16

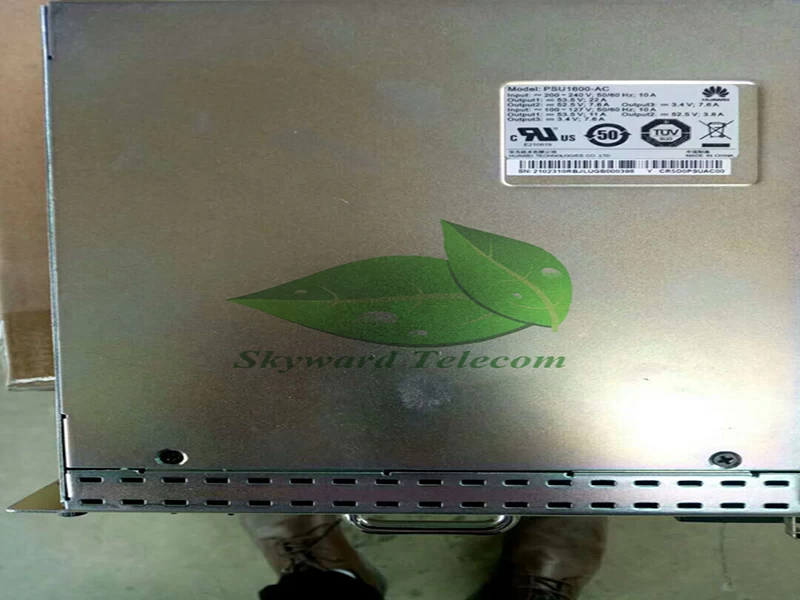

PSU1600-AC on the label of the module is the internal model used by the manufacturer.

The PAC1600T5453-CB converts an AC input of 90 V to 290 V into three DC outputs, 53.5 V DC, 52.5 V DC and 3.4 V DC. It provides PMBus communication ports, communicates with and sends the electronic serial numbers to the host to facilitate the monitoring and management.

Features

• Input voltage range: 90 - 290 V AC 
• Output power: 1600 W 
• Output voltage: 53.5 V DC, 52.5 V DC, 3.4 V DC
• Efficiency(ŋ): ŋmax > 91.0% (Vin = 220 V AC ) 
• Depth x Width x Height: 201.0 mm x 183.8 mm x 41.5 mm (7.91 in. x 7.24 in. x 1.63 in.)
• Weight: ≤ 2.5 kg 
• Hot-plug capable 
• Power grid: 220 V AC single-phase, 110 V AC dual-live wire 
• Fans are configured 
• Support input undervoltage, overvoltage protection 
• Support output overcurrent, overvoltage, short protection 
• Support overtemperature protection 
• PMBus communication interface 
• TUV, UL certification 
• Meet RoHS 6 requirement 
