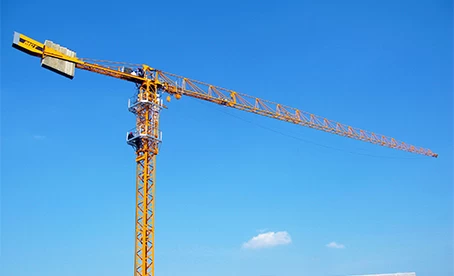

PT5010 5t Flat Top Tower Crane Supplier
As PT5010 Flat Top Tower Crane made by flat top tower crane suppliers from china is equipped with mechanical moment limiter, lifting load limiter, multi-function position limiter and other protection devices which are precise, reliable and agile, customers can feel secure in using it.The max radius is 50m. Independent loading-lifting height is 34m. Attaching loading-lifting height is 150m. The rated load moment is 630 KN.m .
5t topless tower crane PT5010 Load Diagram
Loading Diagram
|
Radius (m)
|
3-24.18
|
25
|
29
|
32
|
35
|
39
|
42
|
45
|
47
|
48
|
49
|
50
|
Weight (t)
|
2 Fall
|
2.5
|
2.41
|
2
|
1.8
|
1.63
|
1.43
|
1.3
|
1.2
|
1.13
|
1.1
|
1.07
|
1.04
|
Radius (m)
|
3-12.92
|
14
|
18
|
22
|
26
|
32
|
38
|
42
|
44
|
46
|
48
|
50
|
Weight (t)
|
4 Fall
|
5
|
4.6
|
3.5
|
2.8
|
2.3
|
1.8
|
1.5
|
1.3
|
1.23
|
1.16
|
1.09
|
1.04
|
5t topless tower crane PT5010 flat top tower Parameters
Rated lifting moment (kN.m)
|
630
|
Lifting height (m)
|
Free-standing stationary crane
|
Anchored crane
|
|
34
|
118
|
Working radius (m)
|
Max. working radius
|
50
|
|
Min. working radius
|
3
|
Max. lifting capacity (t)
|
5
|
Hoisting mechanism
|
Rope fall
|
α＝2
|
α＝4
|
|
Speed (m/min)
|
8
|
35
|
70
|
4
|
17.5
|
35
|
|
Lifting weight (t)
|
2.5
|
2.5
|
1.25
|
5
|
5
|
2.5
|
|
Power(kW)
|
18/18/4
|
Traction mechanism
|
Speed (m/min)
|
40/26
|
|
Power (kW)
|
3.3/2.2
|
Slewing mechanism
|
Speed (r/min)
|
0.6/0.6
|
|
Power (kW)
|
5.5/5.5
|
Safety devices:
1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device.
