Description

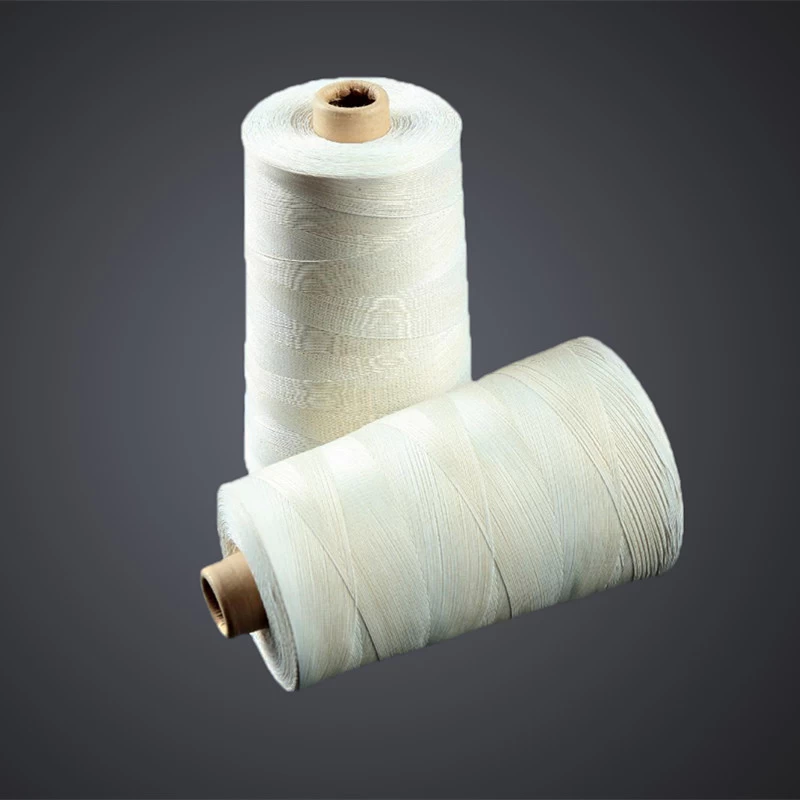

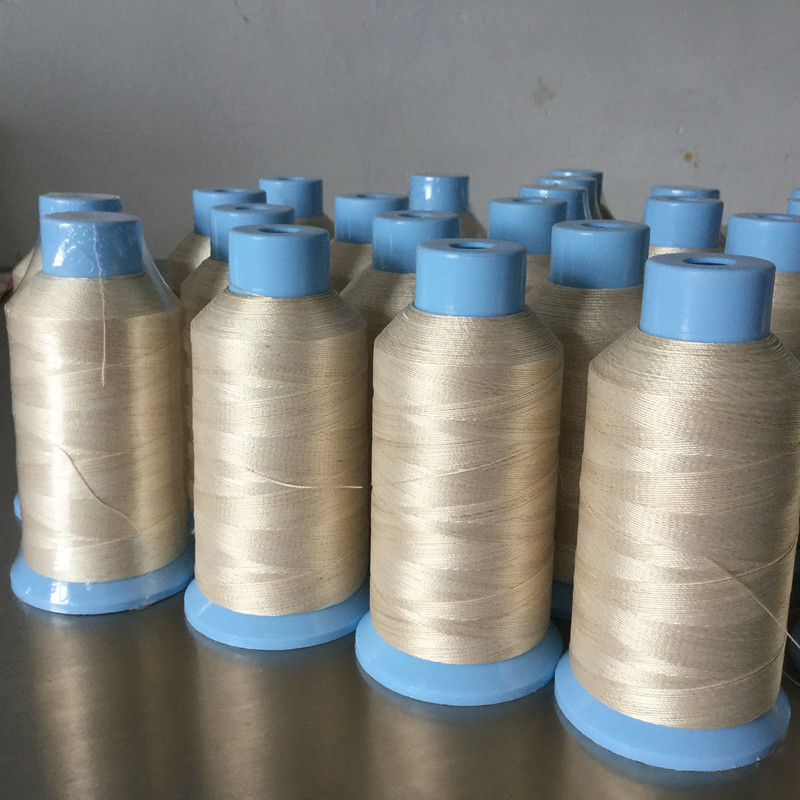

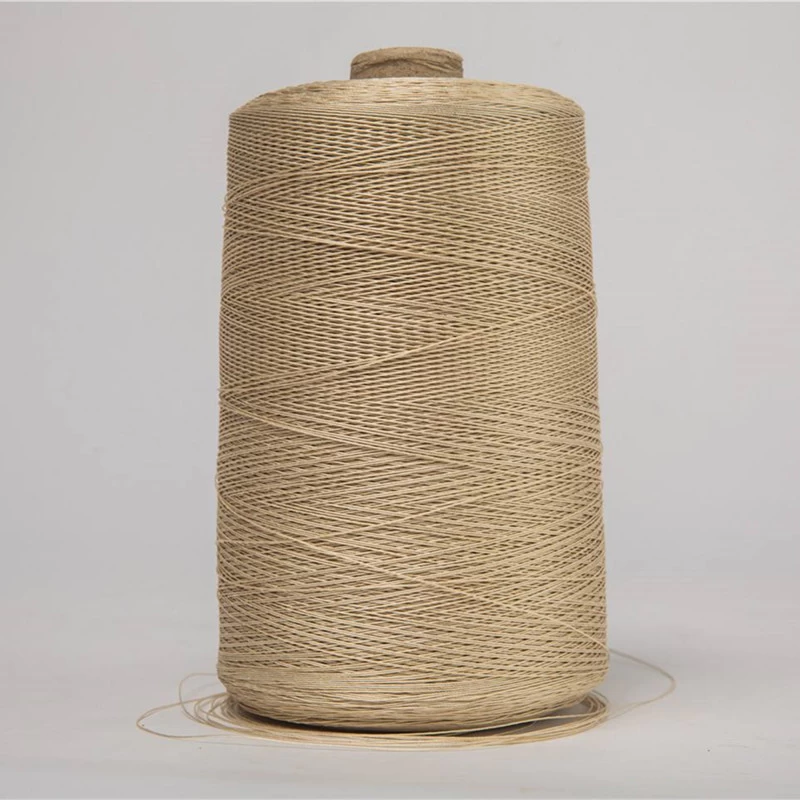

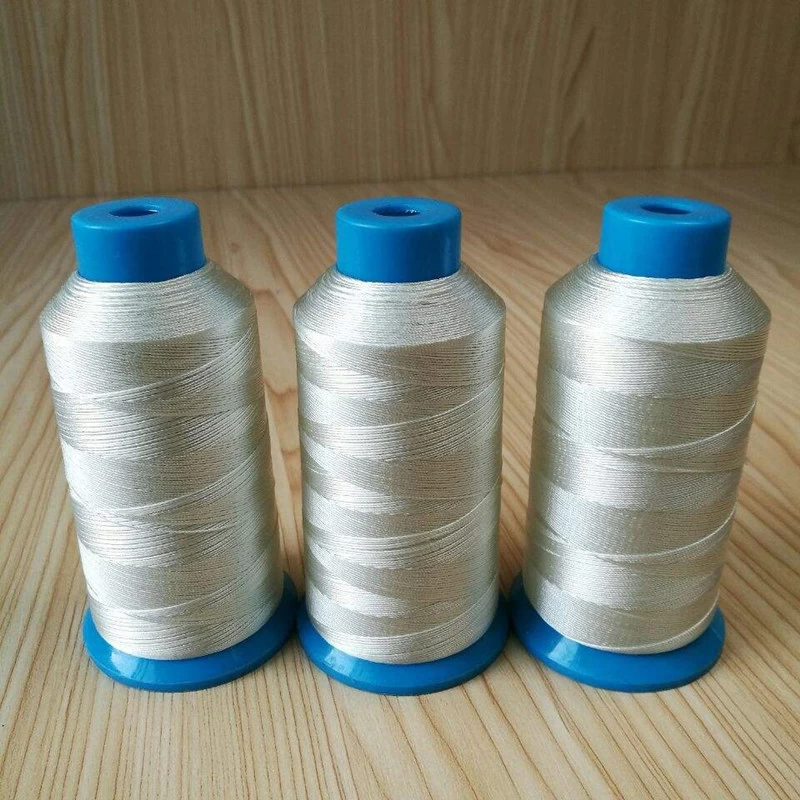

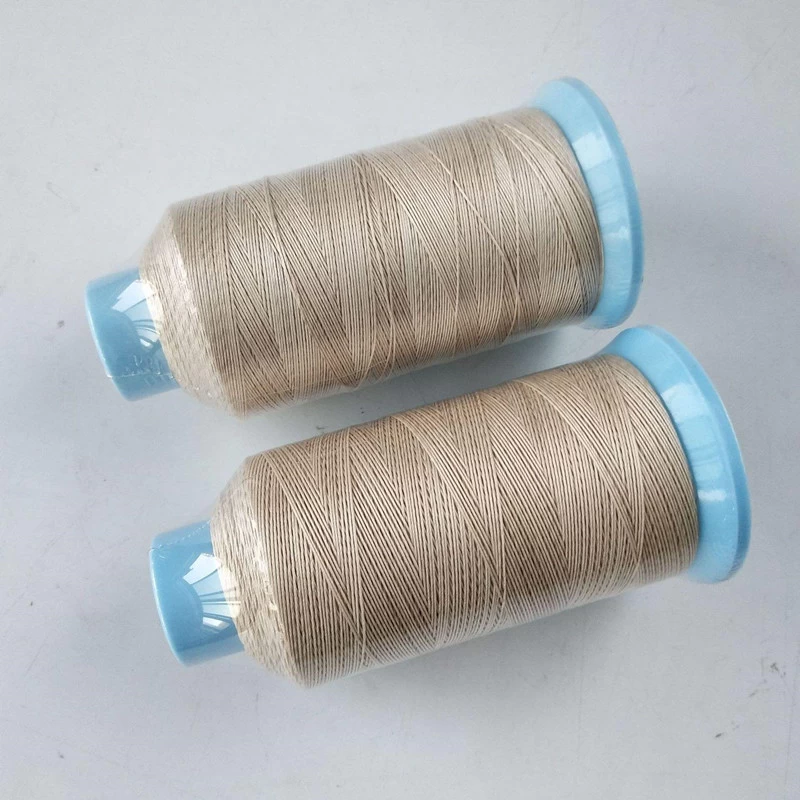

FGX PTFE Coated Fiberglass Sewing Thread is made of continous E-glass fiber, which are plied and twisted, then treated with PTFE to improve the sewing property on machine. It is wear resistance, corrosion resistance. And soft, smooth, high twisted, high tensile strength, high temperature resistance.
Features
Maximum service temperature of 550ºC
Application
It is used in the fabrication and sewing of anything requiring high temperature capability.
Specifications
|
DATASHEET
|
|
Part Number
|
Fliament Diameter
|
TEX
|
Coating
|
|
um
|
g/km
|
|
FGX-156
|
5.5
|
156
|
NO
|
|
FGX-208
|
5.5
|
208
|
NO
|
|
FGX-156P
|
5.5
|
156
|
PTFE
|
|
FGX-208P
|
5.5
|
208
|
PTFE
|
|
Technical Datasheet
|
|
Material
|
Fiberglass
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Nature
|
|
MOQ
|
5 KG each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special size upon request
Special length or packing upon request.
