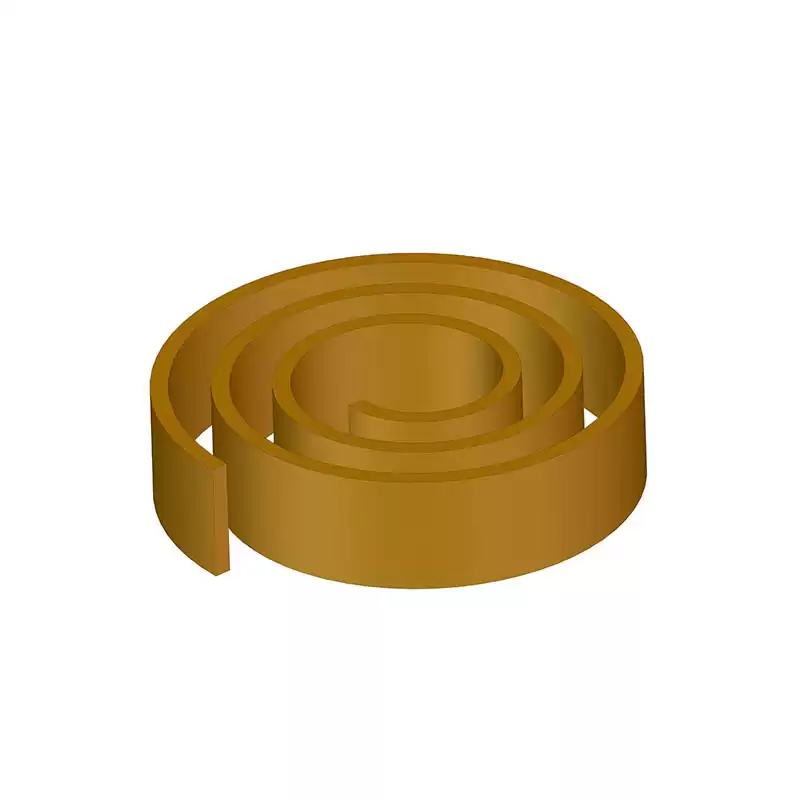

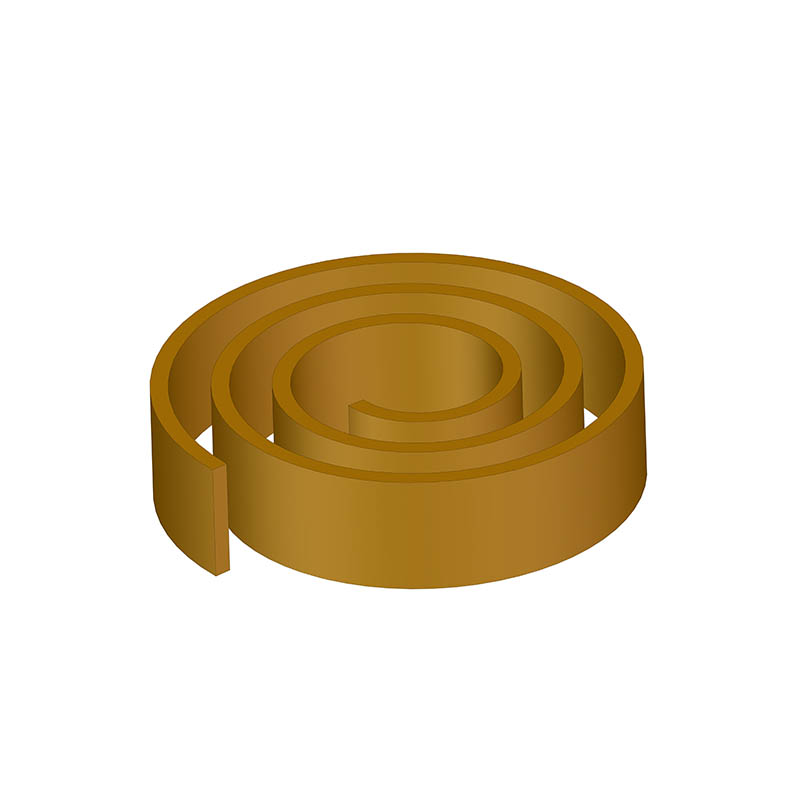

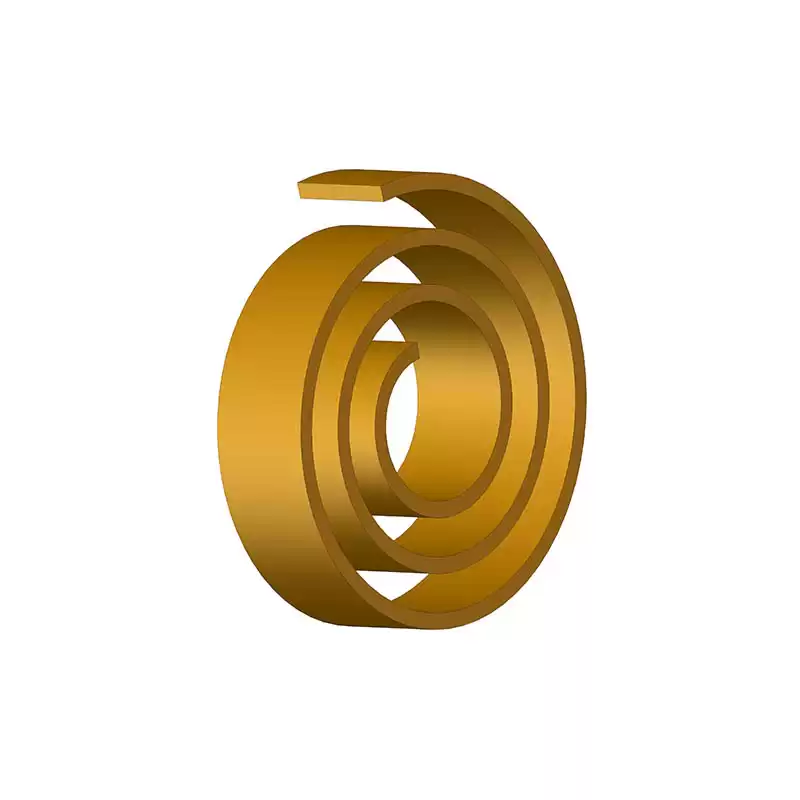

PTFE guide and wear strip

Guide and wear strips can keep the piston centered as well as preventing metal-to-metal contact.



PTFE guide and wear strip


Guide and wear strips can keep the piston centered as well as preventing metal-to-metal contact.


Advantages:

1. High wear resistance
2. Low friction
3. Reduce vibration
4. Compatible with virtually all fluid media
5. Flexible and easy to assemble
6. Low maintenance cost.


Working  Conditions
Working  Temperature
Working  Speed
Material
-100℃ to +200℃
≤5m/s
PTFE + Bronze
Phenolic resin + fiber
Phenolic Resin + Fabric

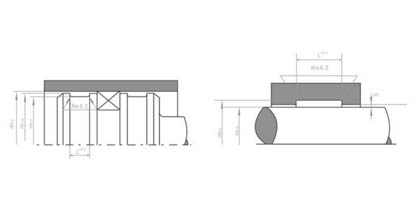

Size:

Width:2.5-70mm
Thickness: 2.5-5mm
Dimension can be customized


Width
mm
Thickness
mm
2.5 2.5
3.2 1.5
3.75 1.5
3.85 1.5
4.2 1.6
4.2 2
4.2 2.5
4.2 4
4.8 2
4.8 2.5
5 2.5
5 4
5 5.5
5.4 2.4
5.6 2.5
5.8 2.5
6.3 1.5
6.3 2
6.3 2.3
6.3 2.5
6.3 3
6.3 3.5
6.3 4
7.6 4
7.69 1.27
7.7 1.7
8.1 1.5
8.1 2
8.1 2.5
8.1 3
8.1 4
8.7 4
9.2 2
9.2 4
9.7 2
9.7 2.5
9.7 3
9.7 4
10 1.5
10 2
10 2.5
10 3
10 4
12 2.5
12 4
12.7 1.52
12.7 1.59
12.7 1.6
12.7 3
12.5 5.2
13 2.5
15 1.5
15 2
15 2.5
15 3
15 4
15 5
15.88 1.59
19.1 0.8
19.05 1.59
19.05 2.54
20 2
20 2.5
20 3
20 4
24 4
25.4 1.59
25 2
25 2.5
25 3
25.4 3.2
25.5 3
25 3.5
25 4
25 5
30 2.5
30 3
30 4
35 4
40 2.5
40 4
45 2.5
50 2.5
50 4
55 2.5
55 4
55 5
60 2.5
70 4
