Description

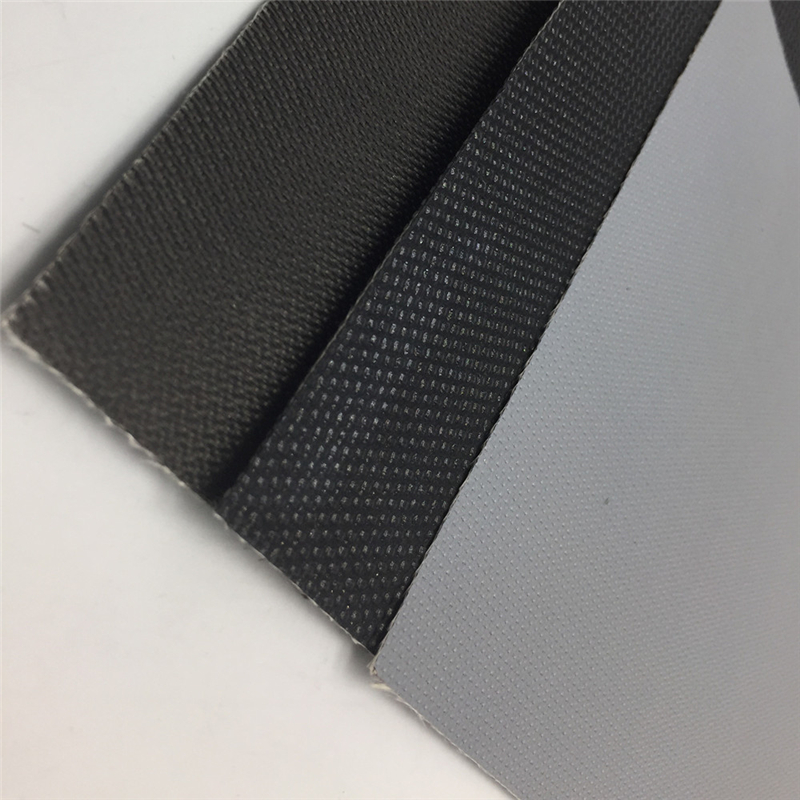

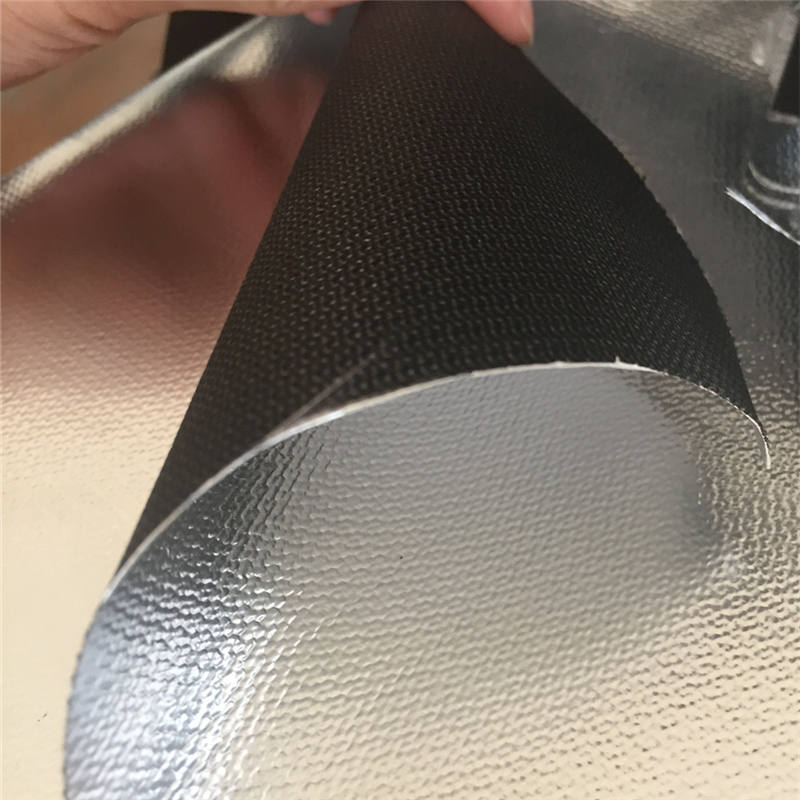

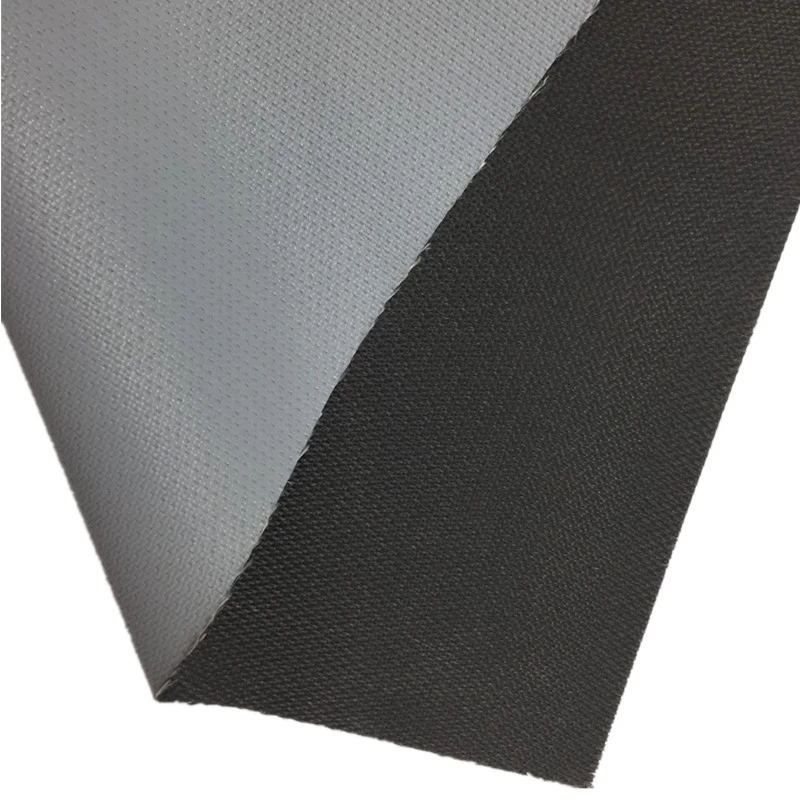

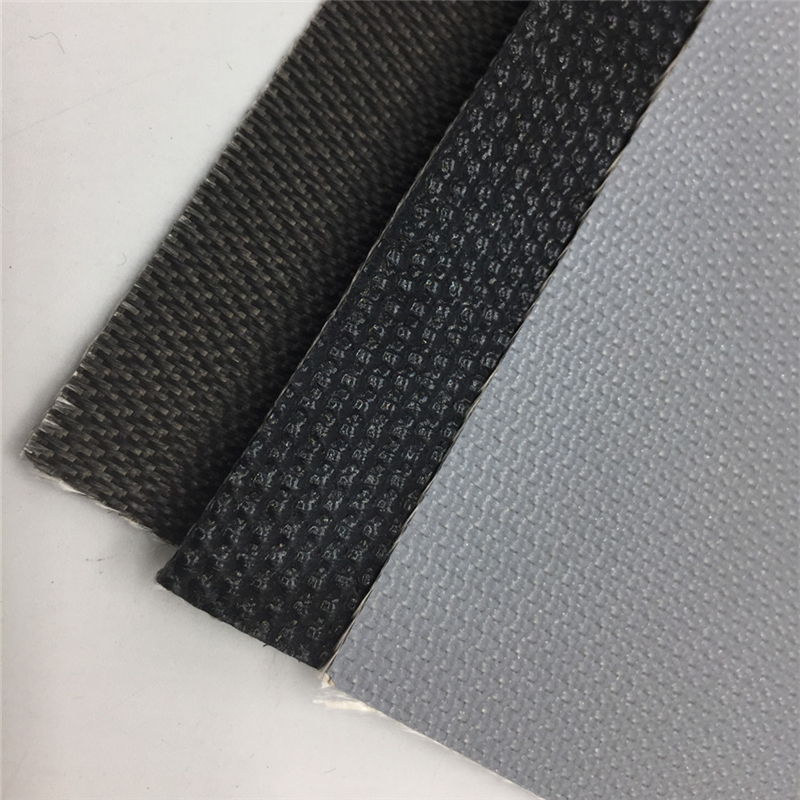

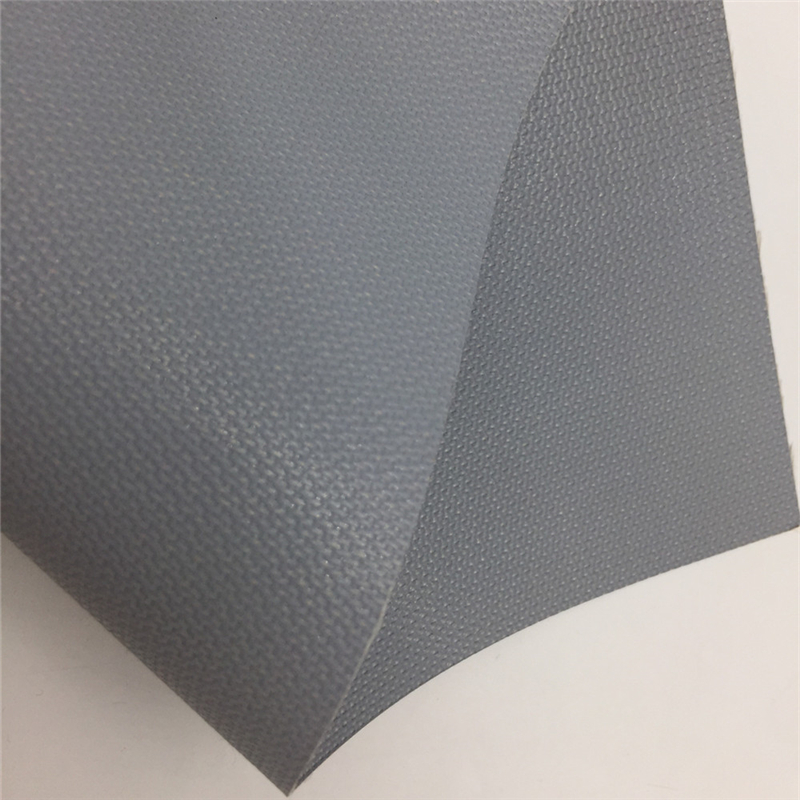

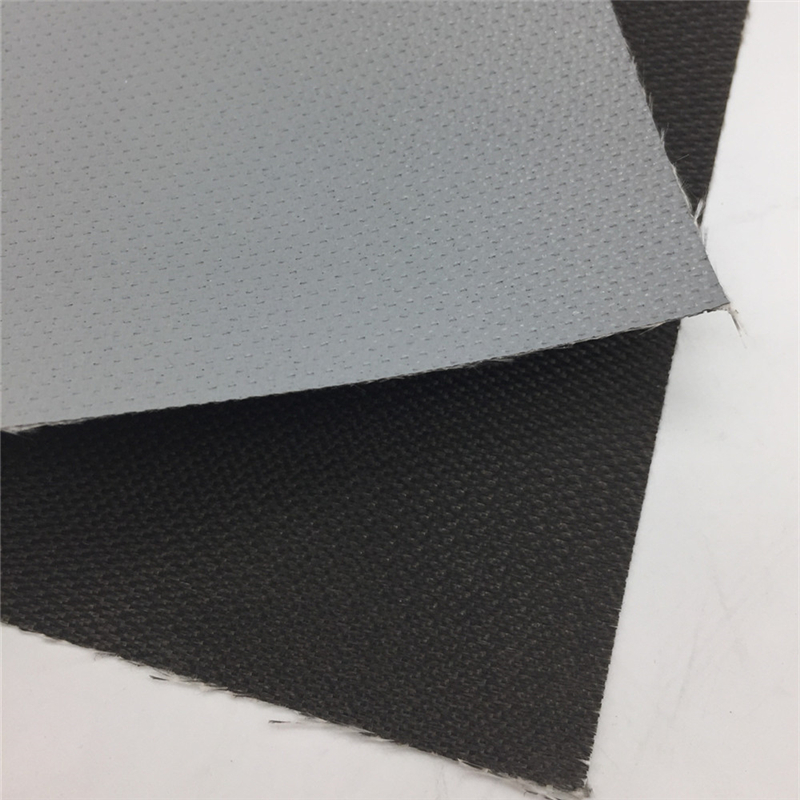

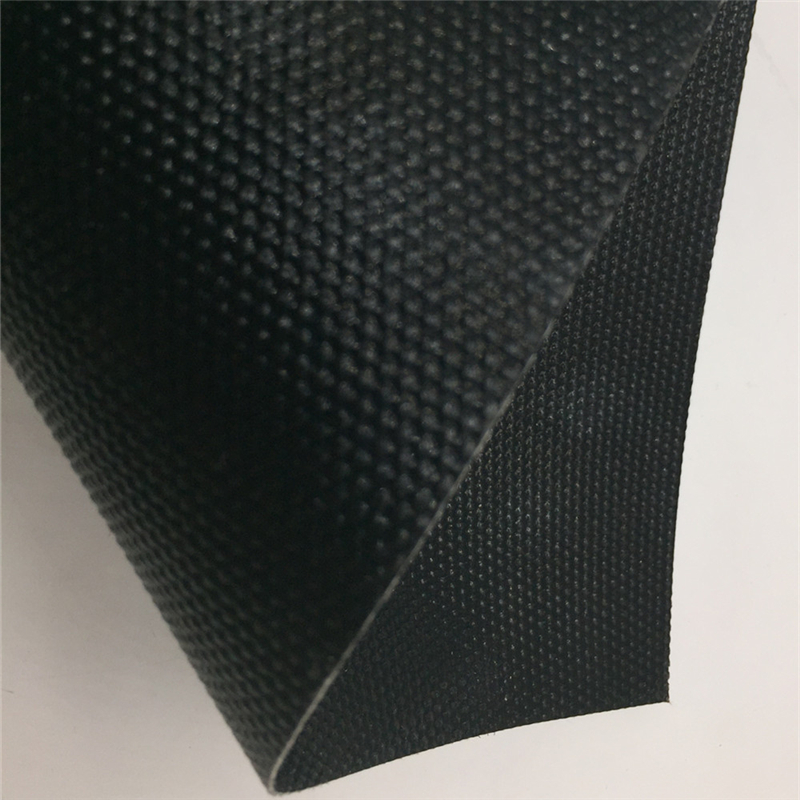

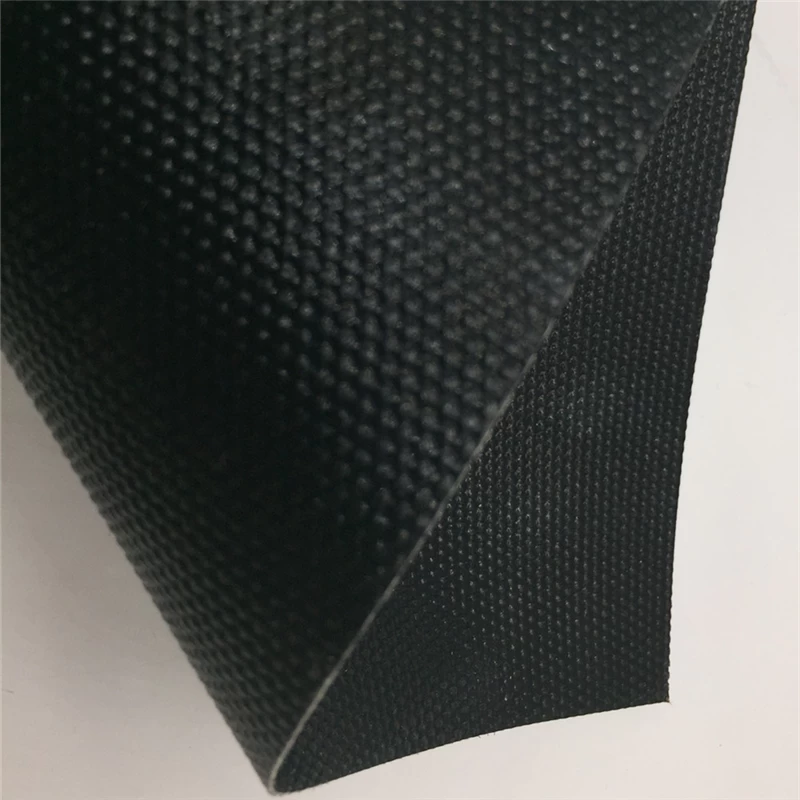

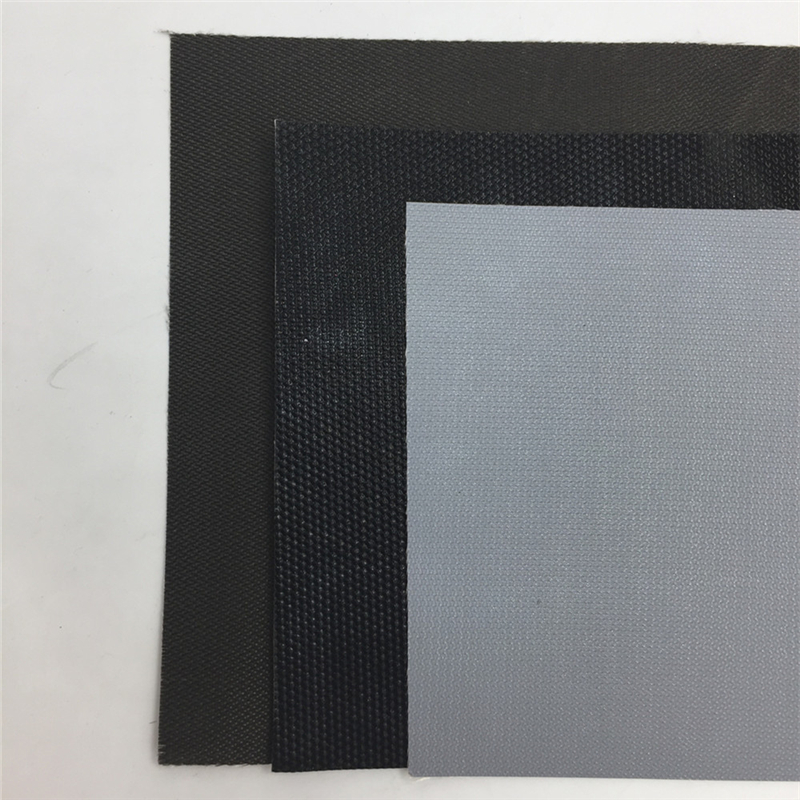

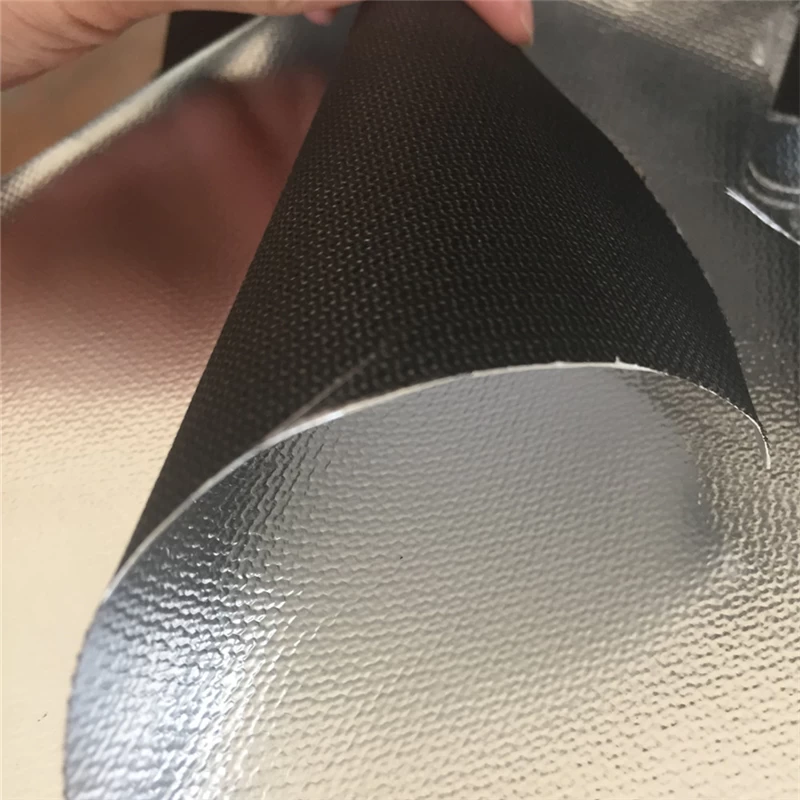

FGF-PT PTFE Fiberglass Cloth made by PTFE coated with fiberglass fabric. PTFE resin is applied to the fabric in a hot process and under pressure.
Features
Good chemical resistance, it can resist all most of chemical medicines, acids, alkalis and salt.
Application
It is used for equipment protection, welding curtains and blankets.
Specifications
|
DATASHEET
|
|
Part NO.
|
PTFE coated side
|
Weight
|
Thickness
|
Width
|
Length
|
|
oz/yard
|
g/mtr
|
inch
|
mm
|
inch
|
cm
|
yard
|
meter
|
|
FGF-1PT-0.43
|
1
|
25.59
|
870.00
|
0.017
|
0.43
|
60.00
|
150.00
|
45.72
|
50.00
|
|
FGF-2PT-0.43
|
2
|
28.68
|
975.00
|
0.017
|
0.43
|
60.00
|
150.00
|
45.72
|
50.00
|
|
Technical Datasheet
|
|
Material
|
PTFE, fiberglass
|
|
Working temperature
|
-140℃ - +287℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+537℃
|
|
Standard Color
|
Nature
|
|
Standard Thickness
|
0.43 mm
|
|
MOQ
|
50 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness upon request
Special length or packing upon request.
With PSA upon request.
