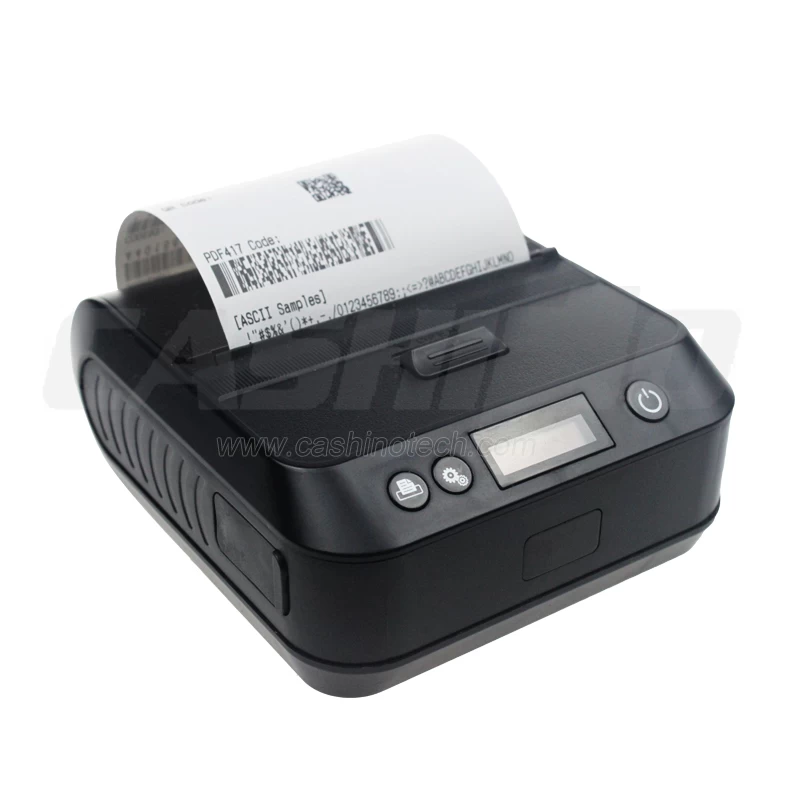

PTP-III 80mm portable mobile thermal printer
The PTP-III is designed especially for those transaction applications where small size, fast printing and dependability while staying in budget are vital. Delivering the key features and communication methods, the PTP-III has the flexibility to meet the unique, industry-specific receipt printing and ease of use required to keep up with the mobile worker’s long and demanding shift.
Compared with the 58mm bluetooth mobile thermal printer PTP-II, this printer is intergrated with a OLED screen, which makes it easy to set up, confirm the printer status and error type.
Key feature & Benefits:
1. Compact design.
2. Easy paper loading.
3. OLED Display.
4. Support QR code and PDF417 printing.
5. Multi-interfaces: RS232/USB/Bluetooth/WiFi.
6. Auto sleep/auto start/Auto power-off for power saving.
7. 2000mAh li-ion battery, 8hrs of working time and 72hrs of standby time.
8. With protective case, can reach 1.2 meter drop resistance. Also easily and comfortably carry the printer.
Specification:
| MODEL |
PTP-III |
| Print |
print mode |
Thermal line printing |
| Printing speed（Max.) |
80mm/s |
| Resolution |
203dpi(8dots/mm) |
| Effective printing width |
72mm |
| Paper spec. |
Paper Type |
Thermal paper roll |
| Paper Thickness |
0.06-0.16mm |
| Paper Width |
80mm |
| Paper Diameter |
40mm(Max.) |
| Roll Core Inner Diameter |
13mm(min) |
| Paper supply method |
Drop-in easy loading |
| Reliability |
TPH |
50km(12.5% print ratio) |
| Detection |
Paper ending, Black mark(optional) |
| Barcode |
1D |
EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC-E |
| 2D |
QR CODE,PDF417 |
| Text and graphic support |
Figure, symbol, graph, curve, icon, multi-languages |
| Command set |
ESC/POS |
| Driver/SDK |
Windows Driver, Linux Driver, Android SDK |
| Interface |
Wire |
RS232/Mini USB |
| Wireless |
Dual bluetooth/WIFI |
| Battery |
7.4V,2000mAh |
| 3Hrs charging time |
| 72Hrs Stand-by |
| Battery adapter |
12V,0.8A AC/DC Charger |
| Accessories |
Standard accessories |
Li-ion battery, AC adapter, USB cable,paper roll, user manual |
| Optional accessories |
Protective Case, CD,user manual,RS232 cable |
| Temperature |
Operating:0℃~50℃ |
| Storage:-20℃ ~ 60℃ |
| Humidity |
Operating:10%RH~80%RH |
| Storage:10%~90%RH |
Applications:
1. Mobile POS/Retail
2. Parking lot
3. Logistics
4. Ship transport
5. On-site repair/Installation
6. Warehouse/Rear service
7. Utility billing/Meter reading
Company Information:
Xiamen Cashino Technology Co., Ltd. is a professional manufacturer of thermal printers since 2011, with the ISO9001, CE, RoHs and FCC certificates passed. Until now, We have developed many micro printers, such as mobile thermal printer, dot matrix portable printer, micro panel printer, kiosk printer, POS bill printer and thermal label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Certificates:
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
