Introduction:
Growattis a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well.
The power capacity of Growatt on-grid inverters ranges from 1kw to 100kw, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW.
Growatt inverters are extensively used worldwide for applications in residential, commercial, PV poverty alleviation, utility-scale scenarios as well as other storage power station projects.
Feaure:
- 120/240vac output
- Build-in pure cooper low frequency transformer
- 12KW 48V with 120A MPPT
- WiFi/GPRS remote monitoring
- Capable for Lithium/Lead-acid battery
|

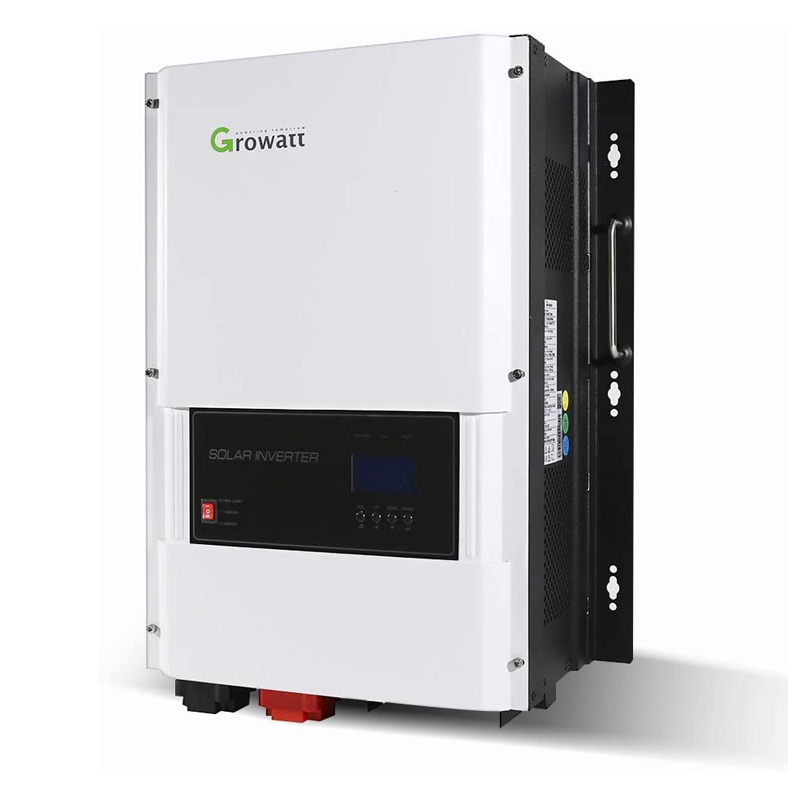

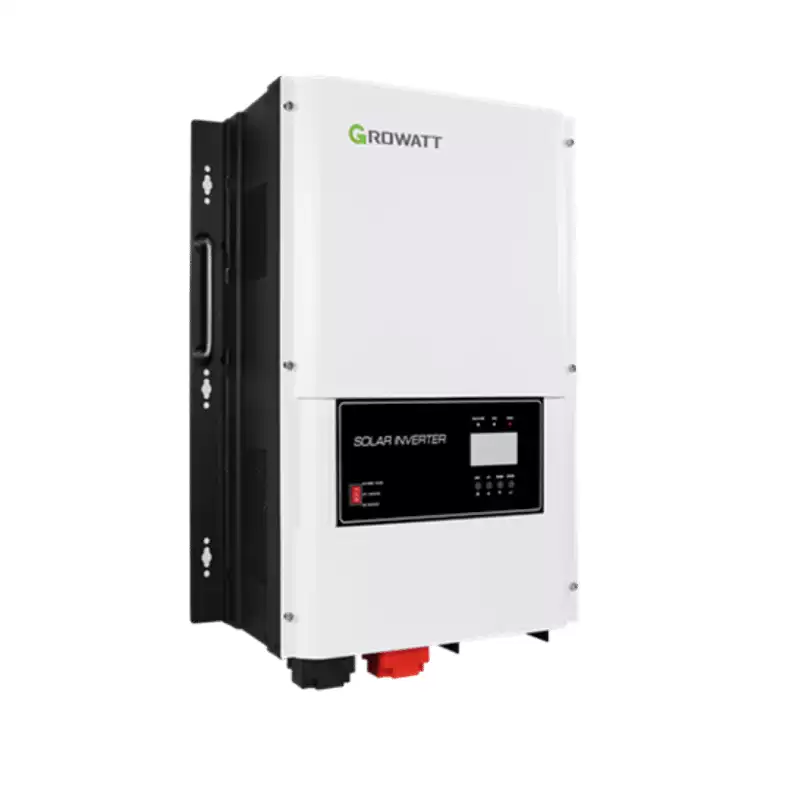

Model
|
SPF 4000T DVM
|
SPF 5000T DVM
|
SPF 6000T DVM
|
SPF 8000T DVM
|
SPF 10000T DVM
|
SPF 12000T DVM
|
|
Battery Voltage
|
48VDC
|
|
Battery Type
|
Lithium/Lead-acid
|
INVERTER OUTPUT
|
|
Rated Power
|
4KW
|
5KW
|
6KW
|
8KW
|
10KW
|
12KW
|
Surge Power
|
12KW
|
15KW
|
18KW
|
24KW
|
30KW
|
36KW
|
Waveform
|
Pure sine wave/ same as input (bypass mode)
|
Nominal Output Voltage RMS
|
104-110-115-120/208-220-230-240VAC(optional)
|
Output Frequency
|
50Hz/60Hz +/-0.3 Hz
|
Inverter Efficiency(Peak)
|
>85%
|
Transfer Time
|
10ms(max)
|
SOLAR CHARGER
|
Maximum PV Charge Current
|
80A
|
120A
|
Maximum PV Array Power
|
5000W
|
7000W
|
Number of independent MPP trackers/strings per MPP tracker
|
1/1
|
2/1
|
MPPT Range @ Operating Voltage(VDC)
|
60-145VDC
|
Maximum PV Array Open Circuit Voltage
|
150VDC
|
Maximum Efficiency
|
98%
|
Packing
Projects
