Push Back Pallet Racking

Push Back Pallet Racking is more convenient to store pick up goods and utilize high efficiency of space comparing with Drive-in and Double-deep rack, this type of rack can be stored no more then 5 depths pallets or carts.






Push Back Pallet Racking

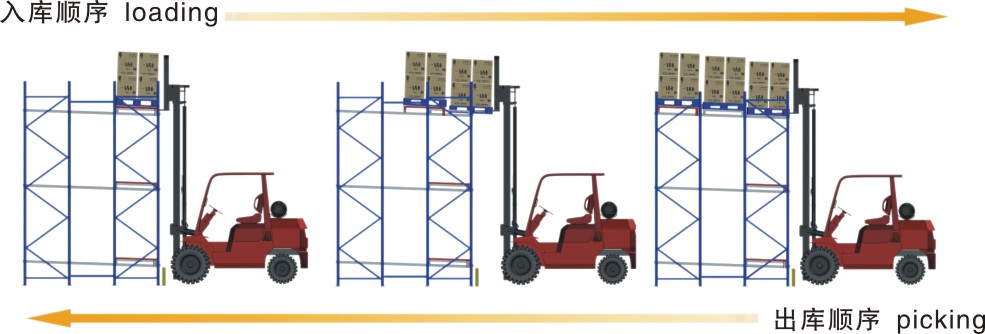

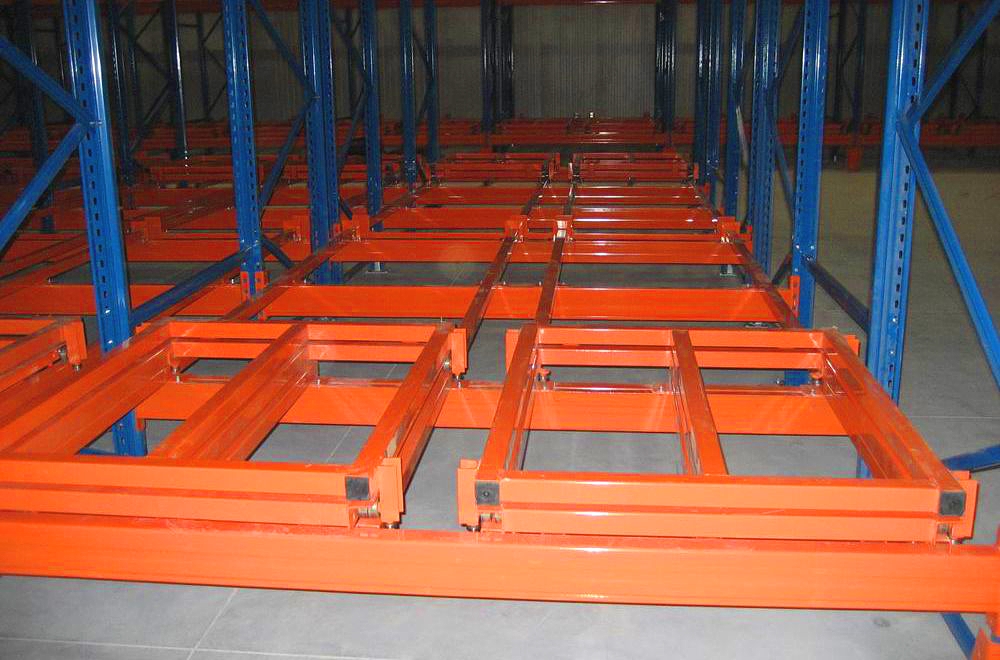

Push-back pallet racking consists of upright frames , beams ,raiks ,cars and etc. carts are nested on the pre-designed slanting rails and the later in goods will push the first in goods along with rack's depth direction. when picking up goods the last in will be taken out firstly and the following goods will automatically slide down by gravity reason so to achieve the FIRST-IN LAST-OUT (FILO) storage principle.

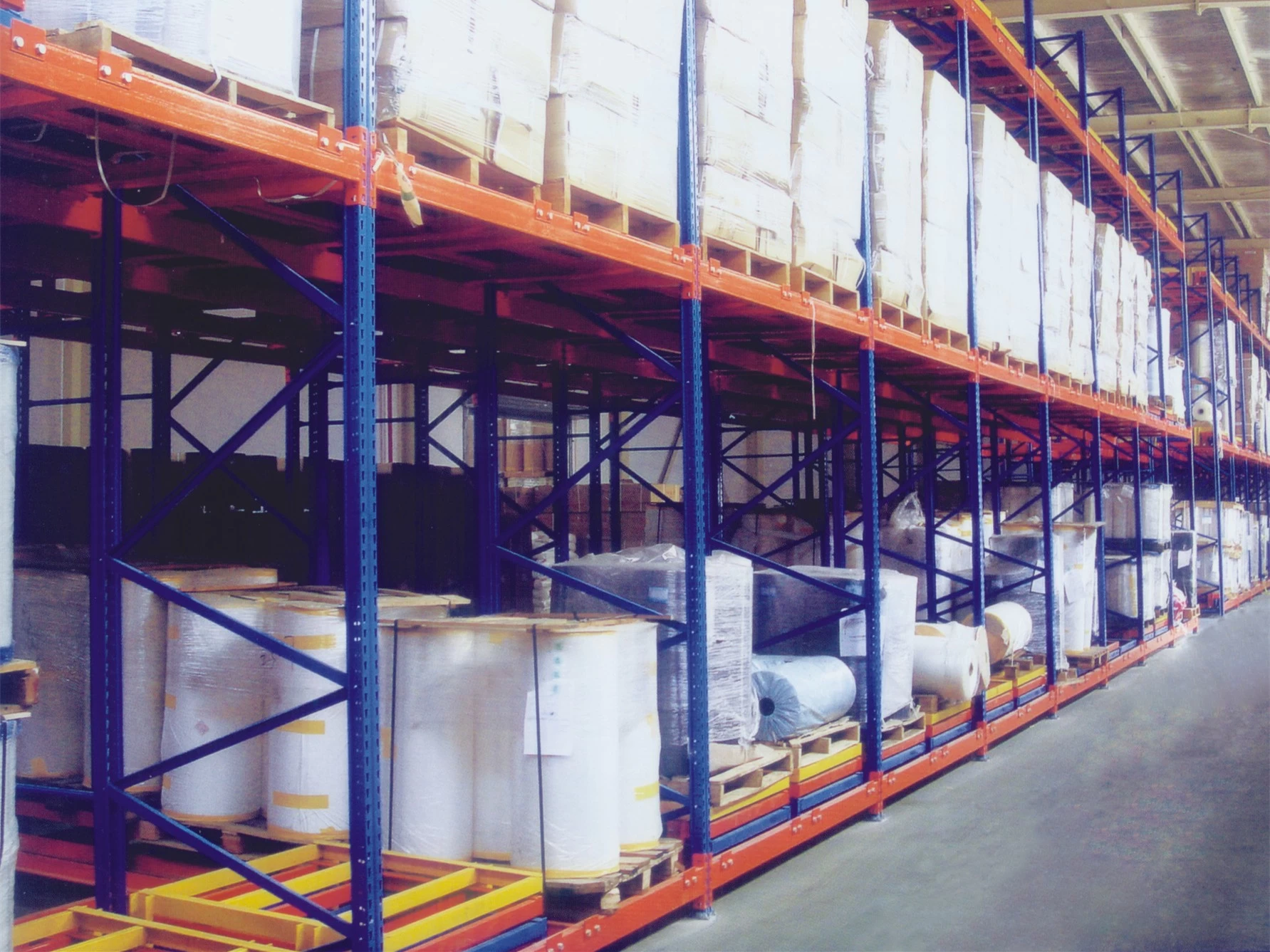

push back storage rack


Product Names:

Push-back Pallet Racks / warehouse metal racks / Push-back racks / heavy duty racks/

Push Back Racking/Heavy Duty Push Back Shelf etc.

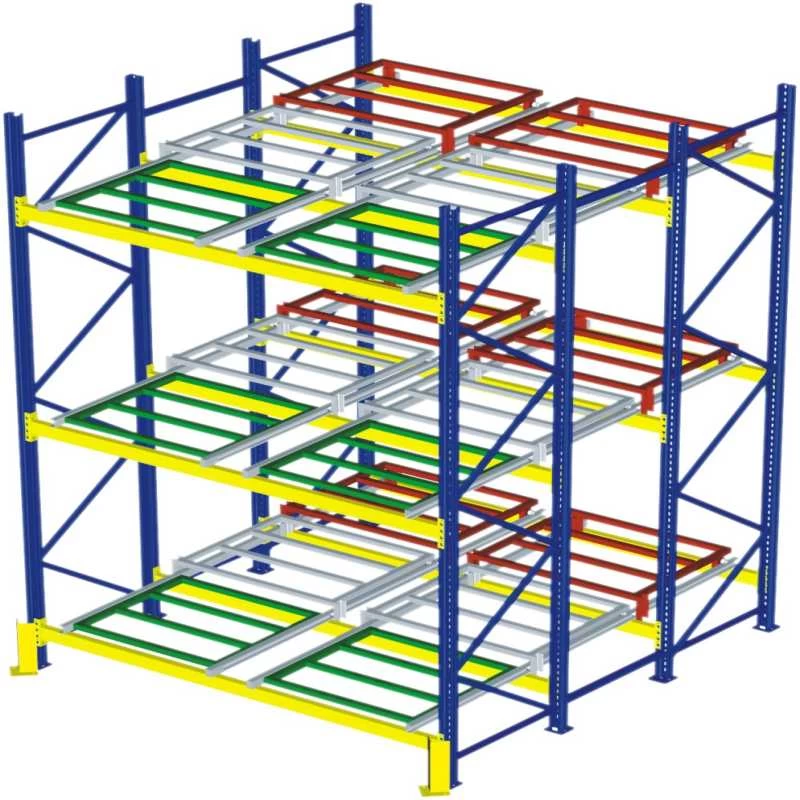

Push back Pallet Rack system

Warehouse Storage Pallet Rack Pallet racking is most extensive and simplest of all

storage systems, can use all kinds of transit equipment,

100% freely storage and get goods, simple to install

and economic usage.

This kind of rack offers more versatile storage than Drive-In rack because each lane flows independently and vertical storage operates separately from lanes below.


Features of push back rack:

1) Pallets can be located, accessed and moved individually.
2) Rapid handling of almost all types of palletized goods.
3) Infinitely adjustable and offering a wide range of options and
components to accommodate specialized needs.
4) Maximizes space use in any warehouse configuration
while retaining optimum product accessibility.
5) Strength and rigidity prevents compression damage to goods.
6) Bottom level of pallets can be stored on the floor, lowering
structure costs.

We offer design customized, so need following rack's factor:

Any types of longspan shelving , boltless shelving ,push-back racks,also parts for it like beams , upright post .etc...

Weight of goods( include pallet or container)
Dimension of pallet and goods(WxDxH)
Pallet's entrance of fork direction
Storage ares( Length, wide, height)
Type and parameter of forklift( include lift height and turn radius)
Storage goods quantity and storage requirement.

Sample :
we will send you sample for your reference, but have to pay from your side;
And we will refund the fee once you have an order with us!

Services:
Our free services include consultations and sample CAD layouts
of your proposed rack system. Don't hesitate to consider reviewing
the racking systems on site or at our headquarters.

Get the racking system you need at the best price guaranteed.
