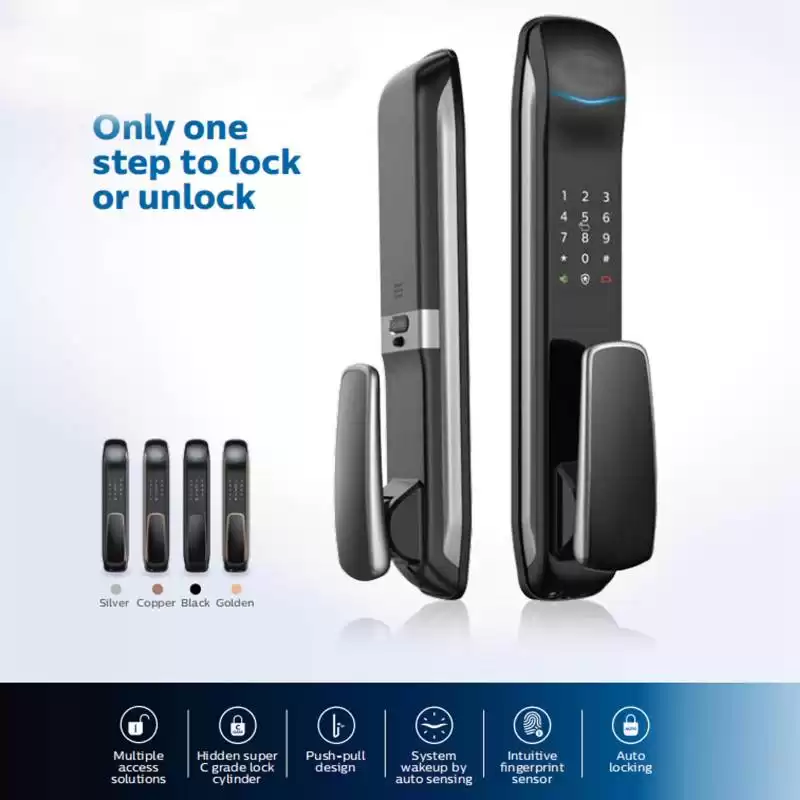

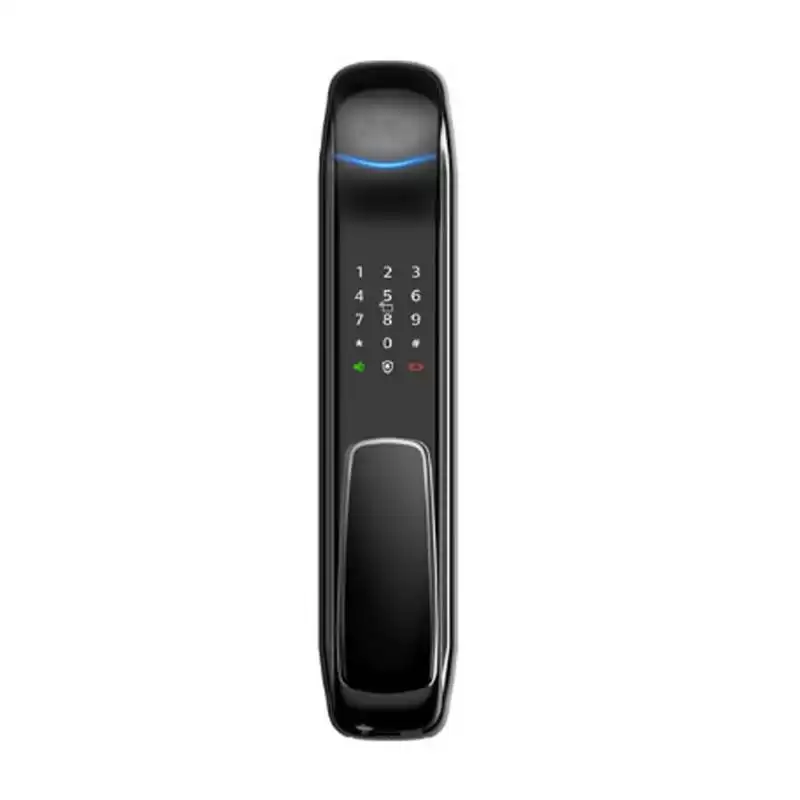

Product Name:Push Pull Handle Smart Door Lock Matte Fingerprint Recognition Infrared SensorDual Mode Color Lamp
Feature
●Push-pull handle design, only need to push or pull, which is different from the fixed mode of the traditional door lock handle that needs to be pressed, returning to the instinctive action of opening and closing the door.
●The external arc design can better fit the palm of your hand. Matte texture treatment, non-slip and sweat-proof, bring a very comfortable touch.
●Blind touch fingerprint recognition, the fingerprint sensor is hidden inside the handle, and when the hand grasps the handle, the finger can naturally fall in the recognition area. With the push-pull handle, unlocking and opening are performed simultaneously without complicated operations. The hidden design can also effectively protect the fingerprint sensor and extend the service life.
●With infrared sensor function, when it is close to the body 50-70 cm, it will automatically wake up the panel, light the light, and verify directly without the need to manually activate the system. The wisdom of technology and the warmth of humanity are perfectly matched.
●Dual mode operating system: safe mode, general mode. You can choose a more personalized security mode, set exclusive identification information, or you can choose a general mode for simple operation.
●Multicolor smile indicator light, the door lock status is clear at a glance: fluorescent white smile, has awakened; matcha green smile, successfully unlocked, welcome home; cherry red smile, the door is locked, all the way downwind.
Specifications
|
Fingerprint
|
√
|
|
PIN code
|
√
|
|
Card
|
√
|
|
Bluetooth
|
Optional
|
|
Mechanical key
|
√
|
|
Smart Door Lock Function
|
|
Safety
|
Safe handle
|
|
Fake PIN code
|
|
Outside forced lock
|
|
Dual verification
|
|
Mortise
|
Full auto mortise
|
|
C-grade lock cylinder
|
|
Locking
|
Electronic deadlock
|
|
System lock
|
|
Alarming
|
Anti-prying alarm
|
|
Outside forced lock alarm
|
|
Easy Operation
|
|
Indicator light
|
Low battery indication
|
|
Lock status indication
|
|
Mute status indication
|
|
System lock indication
|
|
Anti-theft mode indication
|
|
Voice guide
|
Human voice guide
|
|
Design and Appearance
|
|
Handle
|
Push-pull handle
|
|
Fingerprint sensor
|
Semiconductor
|
|
Main material
|
Zinc alloy
|
|
Finishing
|
Electroplating
|
|
Color
|
Copper Black Silver Golden
|
|
Ergonomic design
|
Push-pull opening
|
|
Emergency escape
|
Indoor fast opening mortise
|
|
Capacity
|
|
Fingerprint
|
100
|
|
Card
|
100
|
|
Master PIN code
|
1
|
|
User PIN code
|
10
|
|
One-time PIN code
|
1
|
|
Mode
|
|
Operation mode
|
Manual mode
|
|
Auto mode
|
|
System setup mode
|
Normal mode
|
|
Dual verification mode
|
|
Power
|
|
Battery type
|
Alkaline battery
|
|
Power supply
|
4 AA batteries
|
|
Maximum battery capacity
|
8
|
|
Working voltage
|
4.5-6V
|
|
Service time
|
10 months*
|
|
Emergency power
|
5V power bank
|
|
Installation
|
|
Door thickness
|
38-60 mm
|
|
60-90 mm
|
|
90-120 mm
|
|
Other range*
|
|
Door opening direction
|
Left-in Left-out Right-in Right-out
|
|
Door type
|
Wooden/Copper/Security doors
|
|
Multi lock points
|
N
|
|
Accessories
|
|
Mortise
|
√
|
|
Mounting plate
|
√
|
|
Drilling template
|
√
|
|
User manual
|
√
|
|
Quick start guide
|
√
|
|
Warranty card
|
√
|
|
Certificate
|
√
|
|
Card
|
2
|
|
Mechanical key
|
2
|
|
Battery
|
4 AA batteries
|
|
Installation kit
|
√
|
|
Scouring pad
|
√
|
*10 months:May be less depending on actual usage.
Dimension
The external arc design can better fit the palm of your hand,bring a very comfortable touch.
Application
Blind touch fingerprint recognition,With the push-pull handle, unlocking and opening are performed simultaneously without complicated operations.
