Product Name:Push Pull Smart Door Lock Compact Modern Design One Step Door Opening Full Auto Mortise IML Brushed
Feature

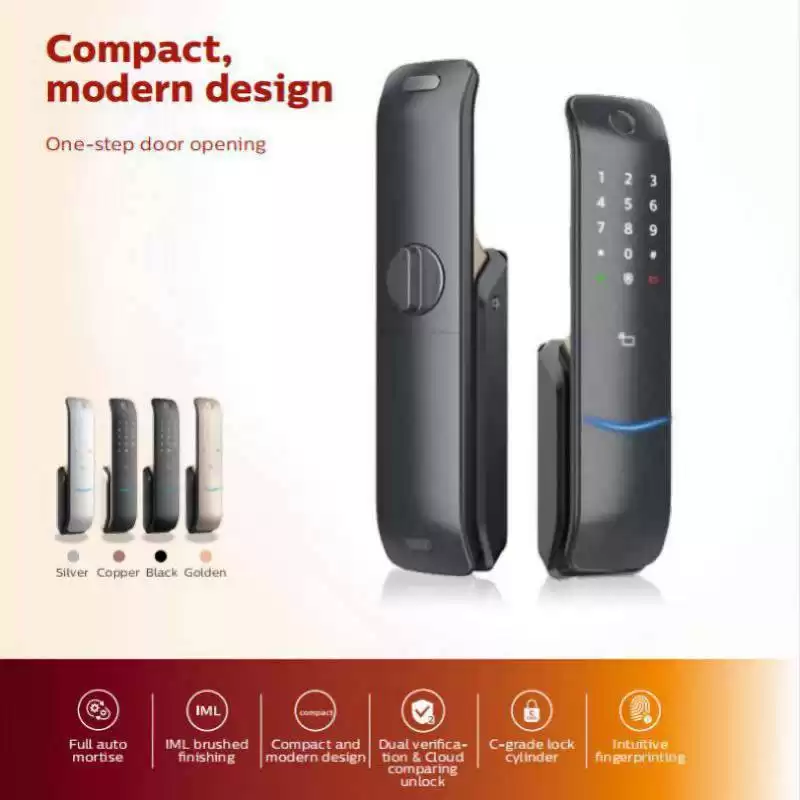

●Extraordinary design, pursuit of excellent experience. Smaller body, simple and compact design, IML drawing process.
● Four unlocking methods, one-step quick door opening, embracing intelligent light life, and enjoying the easy door opening experience.
● Set multiple protections in one to protect home security in all directions. Double authentication, one-button arming, and instant alarm when the door is opened indoors. The virtual password effectively prevents the leakage of the real password. C-class anti-theft lock core, hidden design, double anti-theft performance.
● Fully automatic lock body upgrade, one-step unlocking, smooth and convenient.
● Automatic locking, avoid the trouble of repeated locking, and leave immediately after closing the door.
●The one-time temporary password will expire immediately after use, which is convenient for friends and cleaning.
● Voice navigation prompts make operation settings easier.
●Smart life, excellent "lock". A variety of intelligent unlocking methods, bid farewell to the era of a single key.
●The wireless network expands functions to connect the new intelligent life in the future.
● Automatic and manual dual mode, users can switch according to their needs.
●Emergency power supply interface, low battery reminder, safe to use every day.
Specifications
|
Model
|
ANSDEN FAS1006
|
|
Access Solution
|
|
Fingerprint
|
√
|
|
PIN code
|
√
|
|
Card
|
√
|
|
Bluetooth
|
－
|
|
Mechanical key
|
√
|
|
Smart Door Lock Function
|
|
Safety
|
Fake PIN code
|
|
Outside forced lock
|
|
Dual verification
|
|
Mortise
|
Full auto mortise
|
|
C-grade lock cylinder
|
|
Locking
|
Electronic deadlock
|
|
System lock
|
|
Alarming
|
Anti-prying alarm
|
|
Anti-dismantling alarm
|
|
Anti-theft alarm
|
|
Easy Operation
|
|
Indicator light
|
Low battery indication
|
|
Lock status indication
|
|
Mute status indication
|
|
System lock indication
|
|
Voice guide
|
Human voice guide
|
|
Design and Appearance
|
|
Fingerprint sensor
|
Semiconductor
|
|
Main material
|
Zinc alloy
|
|
Finishing
|
Electroplating
|
|
Color
|
Copper Black Silver Golden
|
|
Ergonomic design
|
Push-pull opening
|
|
Emergency escape
|
Indoor fast opening mortise
|
|
Capacity
|
|
Fingerprint
|
100
|
|
Card
|
100
|
|
Master PIN code
|
1
|
|
User PIN code
|
10
|
|
One-time PIN code
|
1
|
|
Mode
|
|
Operation mode
|
Manual mode
|
|
Auto mode
|
|
System setup mode
|
Normal mode
|
|
Dual verification mode
|
|
Power
|
|
Battery type
|
Alkaline battery
|
|
Power supply
|
4 AA batteries
|
|
Maximum battery capacity
|
8
|
|
Working voltage
|
4.5-6V
|
|
Service time
|
10 months*
|
|
Emergency power
|
5V power bank
|
|
Installation
|
|
Door thickness
|
38-60 mm
|
|
60-90 mm
|
|
Other range*
|
|
Door opening direction
|
Left-in Left-out Right-in Right-out
|
|
Door type
|
Wooden/Copper/Security doors
|
|
Accessories
|
|
Mortise
|
√
|
|
Mounting plate
|
√
|
|
Drilling template
|
√
|
|
User manual
|
√
|
|
Quick start guide
|
√
|
|
Warranty card
|
√
|
|
Certificate
|
√
|
|
Card
|
2
|
|
Mechanical key
|
2-Jan-00
|
|
Battery
|
4 AA batteries
|
|
Installation kit
|
√
|
|
Scouring pad
|
√
|
*10 months:May be less depending on actual usage.

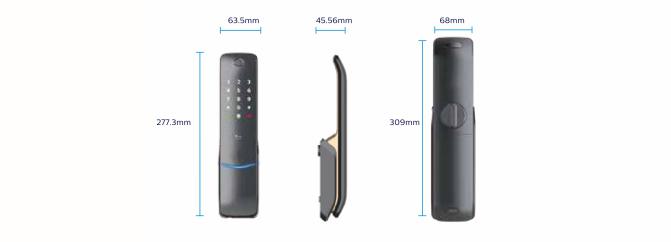

Dimension
Four unlocking methods, one-step quick door opening, embracing intelligent light life, and enjoying the easy door opening experience.
Application
Smart life, excellent "lock". A variety of intelligent unlocking methods, bid farewell to the era of a single key.
