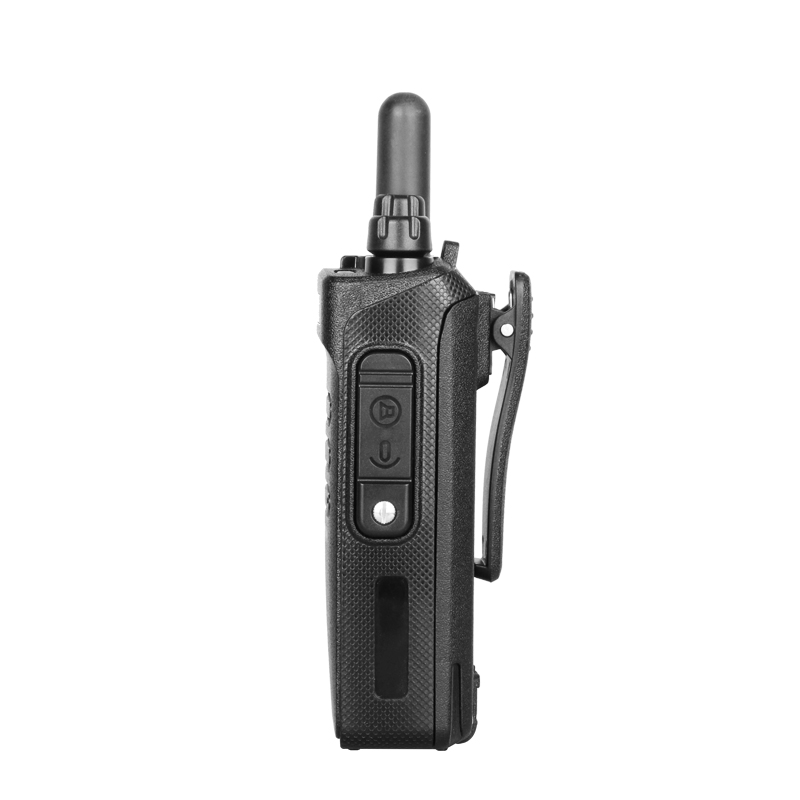

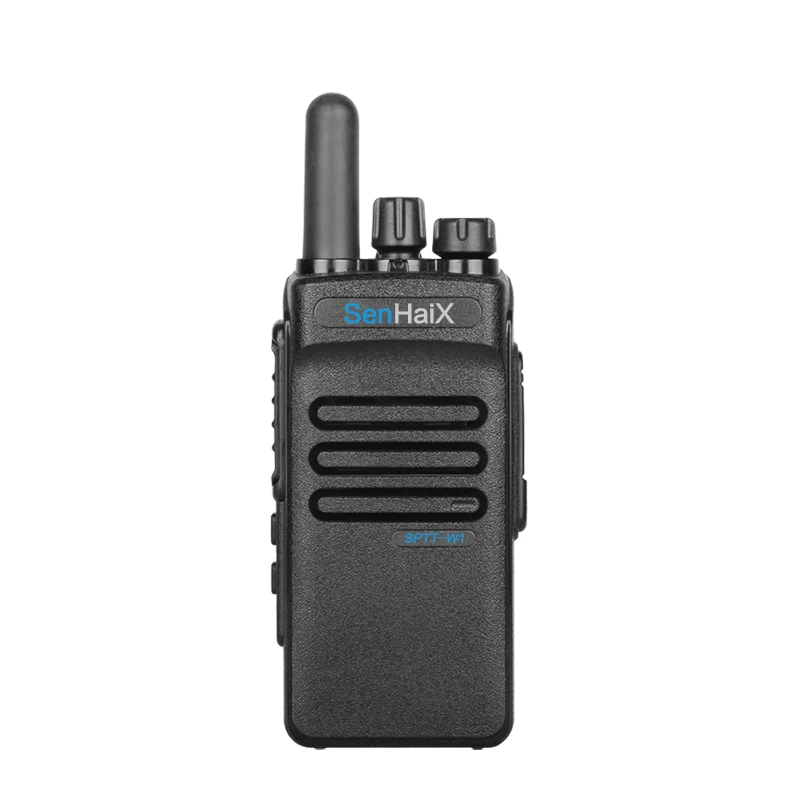

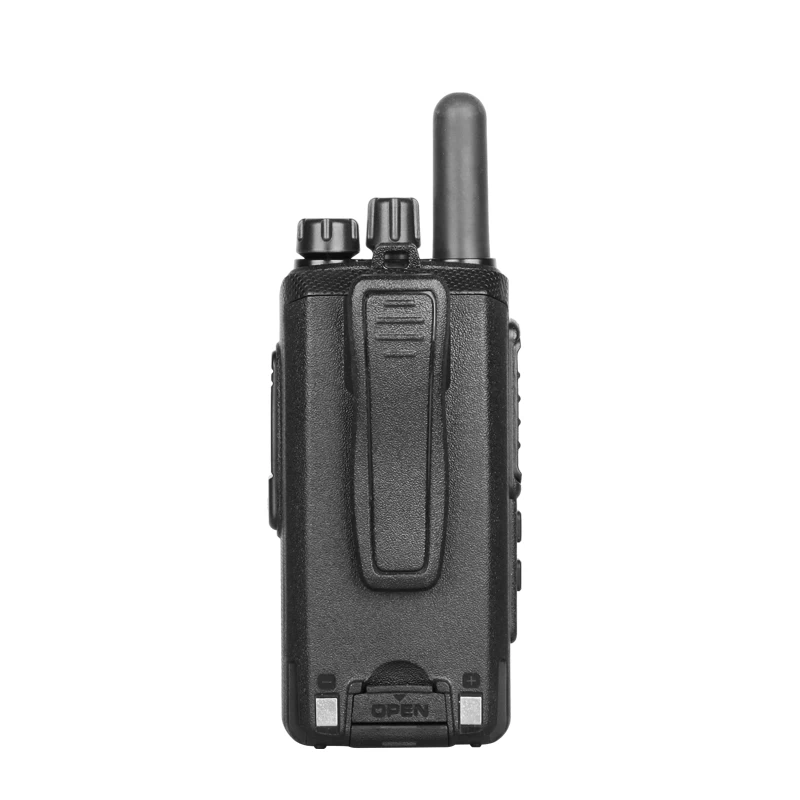

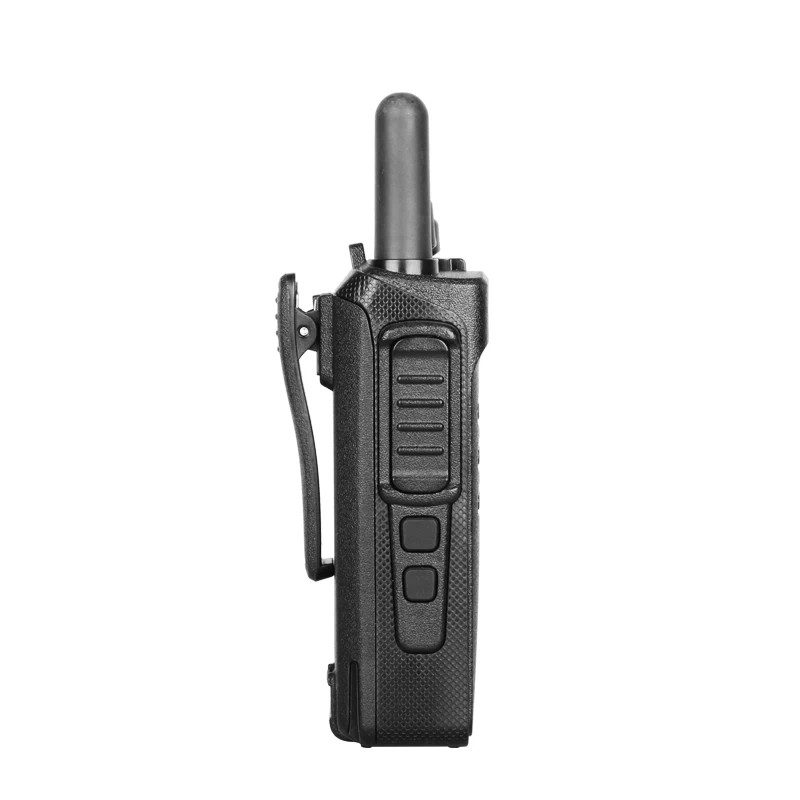

Product Name: Push-To-Talk Over Cellular WCDMA 2 Way Radio
Product Features
1. Unlimited Groups
2. Unlimited Friends
3. Unlimited Users
4. Voice Prompt
5. Back light Setting
6. Radio Information
7. Version Information
8. GPS Function(Logitute&Latitute Location)
9. Support 2G/3G , WCDMA/GSM
10. Support Signal strength te
11. Support GPS position signal test
12. Online upgrade
13. All Call, Group Call & Individual Call
Technical Specifications
|
General Specification
|
|
Model No.
|
SPTT-W1
|
|
Dimension
|
64x42x135mm
|
|
Weight
|
290g
|
|
Working Voltage
|
DC 3.6-4.2V
|
|
Working Current
|
250mA@UMTS 2100/900
|
|
220mA@GSM 900
|
|
Peak Current
|
0.8A
|
|
Working Temperature
|
-30℃ to +75℃
|
|
RF Parameter
|
|
Frequency Range
|
GSM 850/1900MHz 900/1800MHz
|
|
WCDMA 850/1900MHz 900/2100MHz
|
|
Maximum Output Power
|
WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm)
|
GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm)
|
GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)
|
|
Receiving Sensitivity
|
WCDMA 2100: ≤-108dBm
|
|
WCDMA1900: ≤-109dBm
|
|
WCDMA900: ≤-109dBm
|
|
WCDMA850: ≤-109dBm
|
|
GSM850/900/1800/1900: ≤-107dBm
|
|
GPS
|
|
GPS
|
GPS Positioning, 1.57542GHz
|
|
Sensitivity
|
Catch -144dBm, Track -159dBm
|
|
Technical Sensitivity
|
|
Data Speed Rate
|
GSM CS: UL 9.6kpbs/ DL 9.6kpbs
|
|
GPRS: Multi-slot Class 10
|
|
EDGE: Multi-slot Class 12
|
|
WCDMA CS: UL 64kpbs/ DL 64kpbs
|
|
WCDMA PS: UL 384kpbs/ DL 394kpbs
|
|
Protocol
|
HSDPA/WCDMA/EDGE/GPRS/GSM
|
SENHAIXUN is a professional 3G Walkie Talkie manufacturer. We are seeking distributor globally!
Standard Accessories
