| Product name |

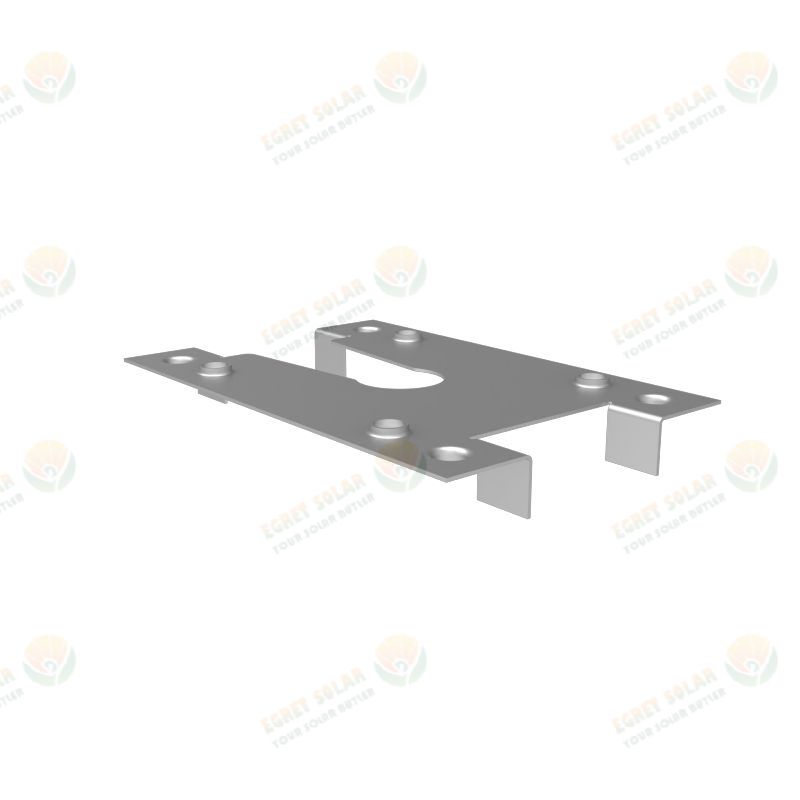

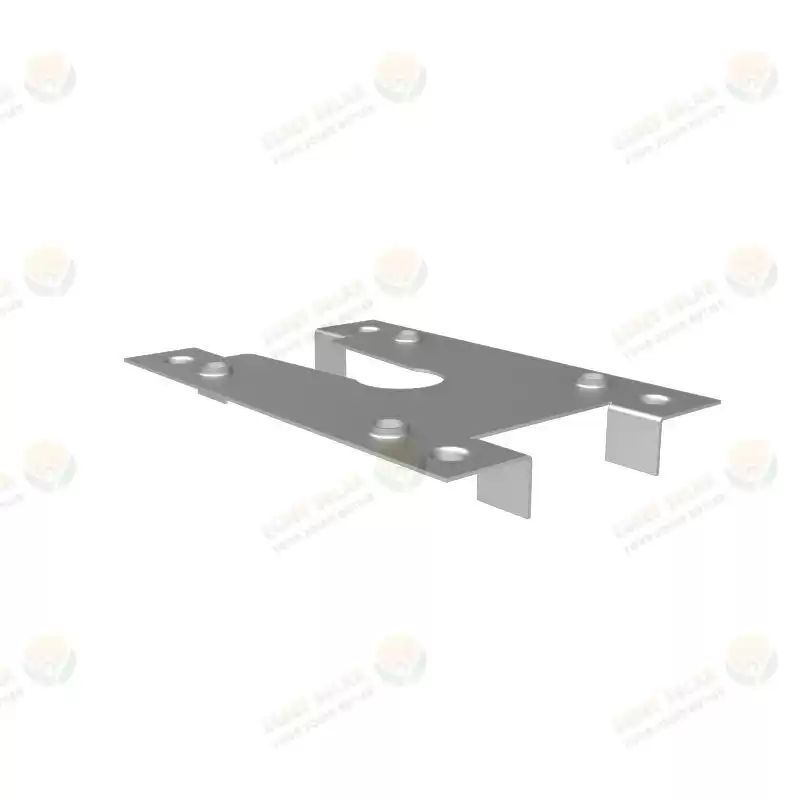

1# Grounding Washer |
| Model Number |
EG-AS-GW01 |
| Installation Site |
Solar Panel Mounting system |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
12Years |
Product Description
The Grounding Washer is used for the conductive system of the roof mounting system, ground mounting system, agricultural greenhouse mounting system, carport mounting system and other system. It is used with the mid clamp and the end clamp. Its main purpose is to pierce the aluminum alloy bracket and the surface oxide film of the aluminum alloy frame of the battery board to realize the conduction between the battery plate and the aluminum alloy bracket.
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
