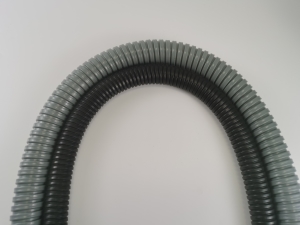

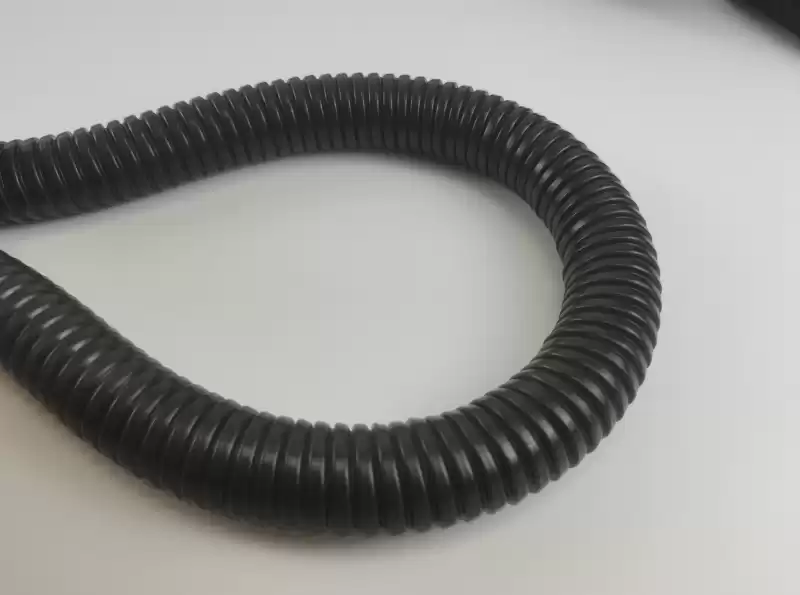

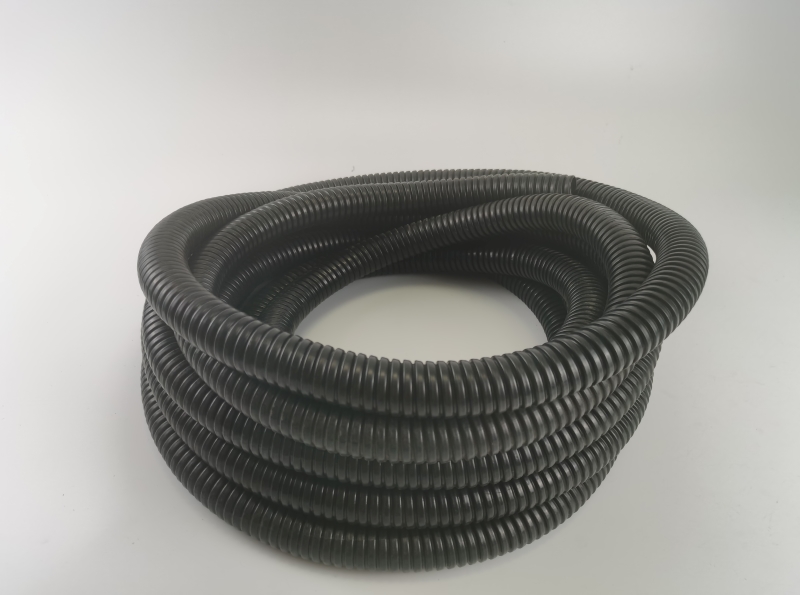

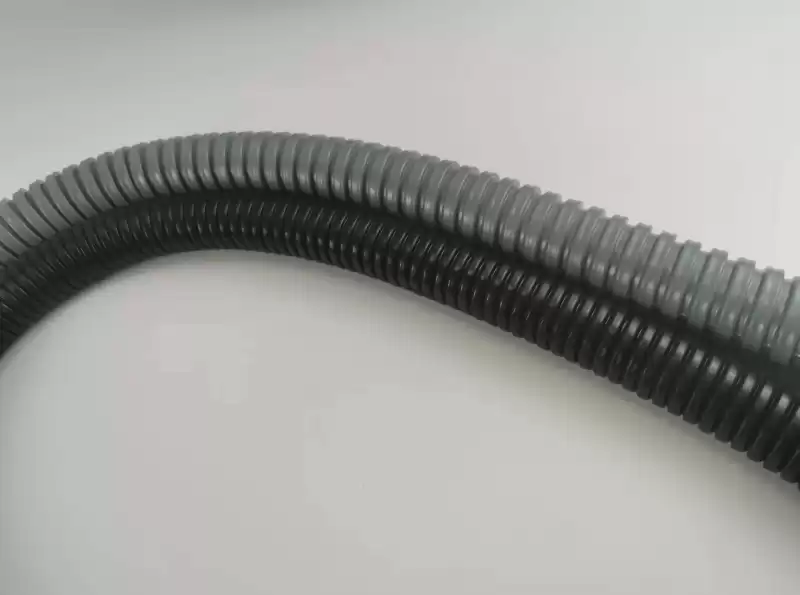

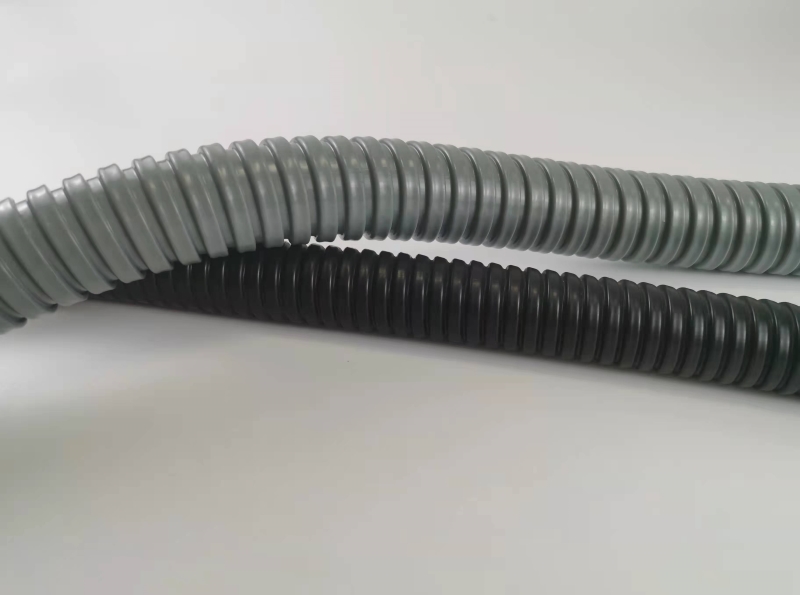

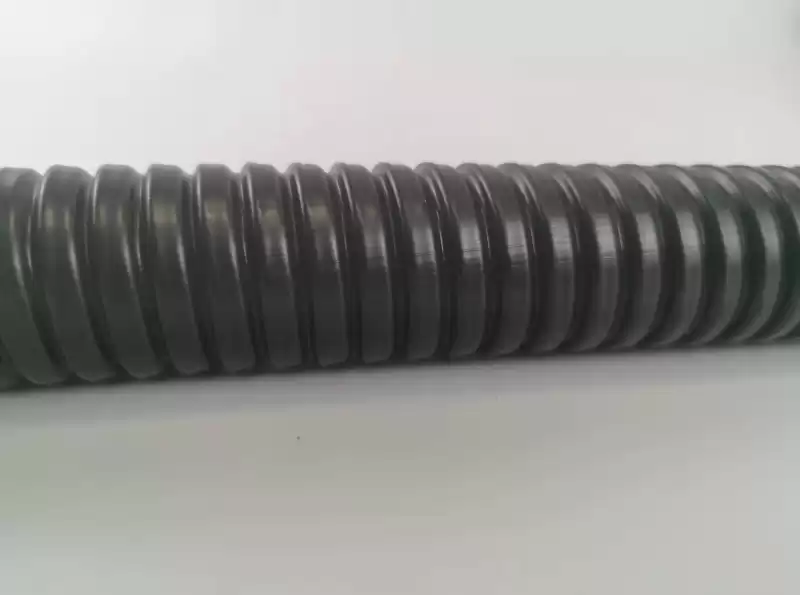

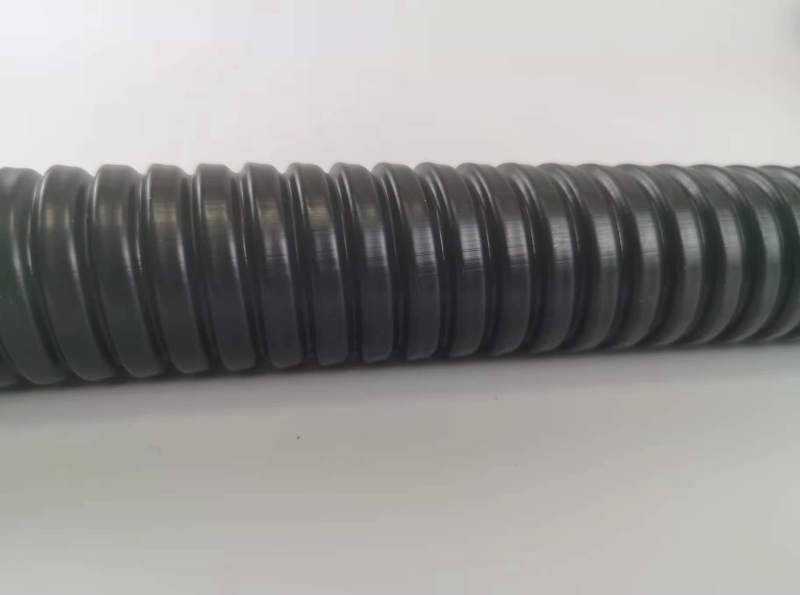

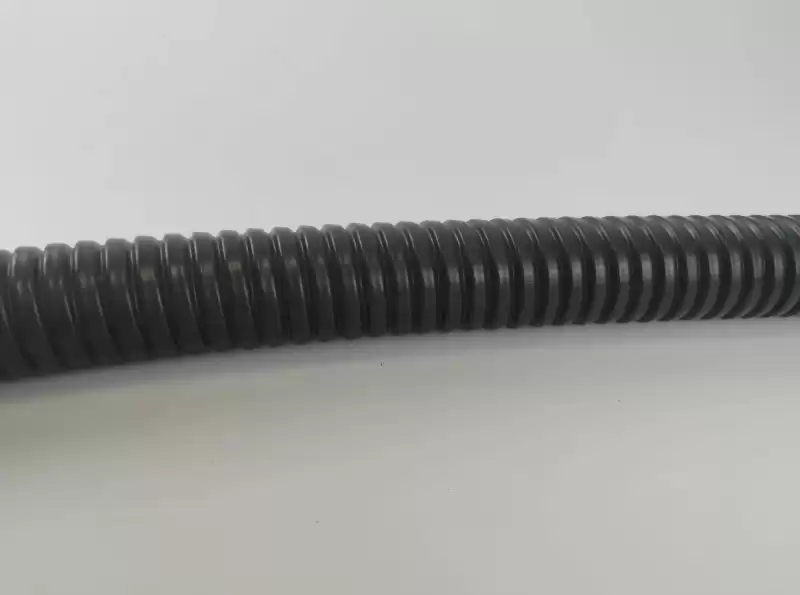

PVC Coated Stainless Steel Felxible Hose

Feature's PVC Coated Stainless Steel Felxible Hose maintain the high quality of standard products, delivery on-time and non-standard custom.

Products Econimic, widely used in Public & Commercial buildings & Outdoor installations. Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature, most suitable for tight-spot installation and in places where certain water tightness is required and so on.



PVC Coated Stainless Steel Felxible Hose


  • Meterial: (inner): Stainless Steel tape

                        (outer): UL approved PVC

  • Construction: Helically Wound Square lock Flexible Conduit oversheath with PVC. The Hose will be uniform. in diameter through our it's length. The internal surface of the conduit will be free from burrs&sharp edges.

  • Specification

         1.Fireproof Class: UL94V-2

         2.Color: black\gray

         3.Work T.: -40℃~+100℃

         4.High mechanical strength, low smoking, poison free

         5.IP rating: Ip68



  • Productions Advantages: Econimic, soft and perfect flexible PVC coated Stainless Steel Flexible Hose

          1.Good waterproof, insulated, retension, High mechanical strength

         2.PVC wrapped, Fire retardant is added to PVC, PVC is UV and inflammation resistant

         3.Uneasy to break and construction changing, for its special design

         4.Super soft andexcellent bending performance, smooth inside, make the wire and cable install easily



  • Application: Public & Commercial buildings, Outdoor installations, Railway, communicate project, air-dondition, machines, roboticized equipments, power plant ships, and protect wired or cable in house, equiments and so on.

  • Marking & Packing : Flexible Hose & Adaptors are Packed with Our Logo and also As per customer request. Strong HOPE bags / box & Wooden Pallette.

  • Cutting : We recommend use of fine tooth 32tpi. Hacksaw, short conduit length can be readily contractor packed.

  • Fittings: Female / Male NPT Thread With Zinc Locknut & PVC Sleeve. All Adaptors or manufactures to a fine tolerance to ensure a very tight fit with ease of removal flexible conduit.

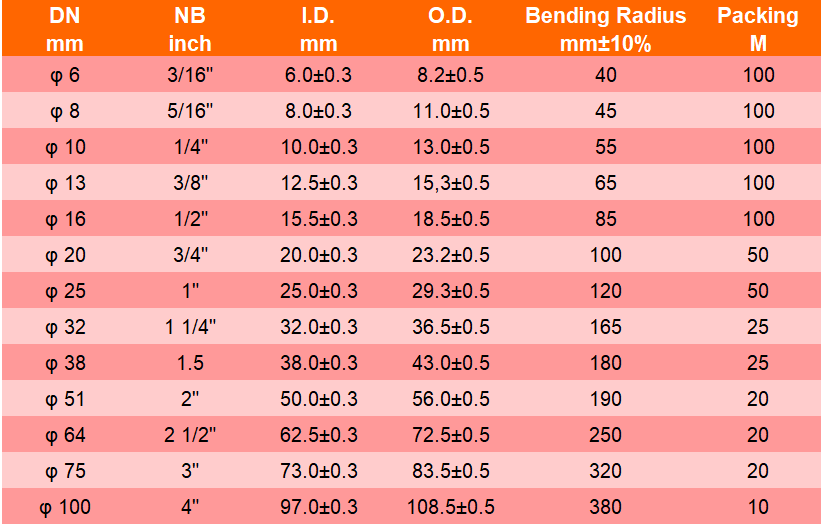

Technical Specification



  • Custom Service:

        1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.

        2.OEM/ODM service can provide what you wanted and custom design printed to your specification.

        3.Purchas a free sample order for test quality before place on full order.


  • Use Way: Insert the cables into the conduit, then fix by the correct connectors.

  • Functions: Protect wires and cables, insulated, waterproof.
