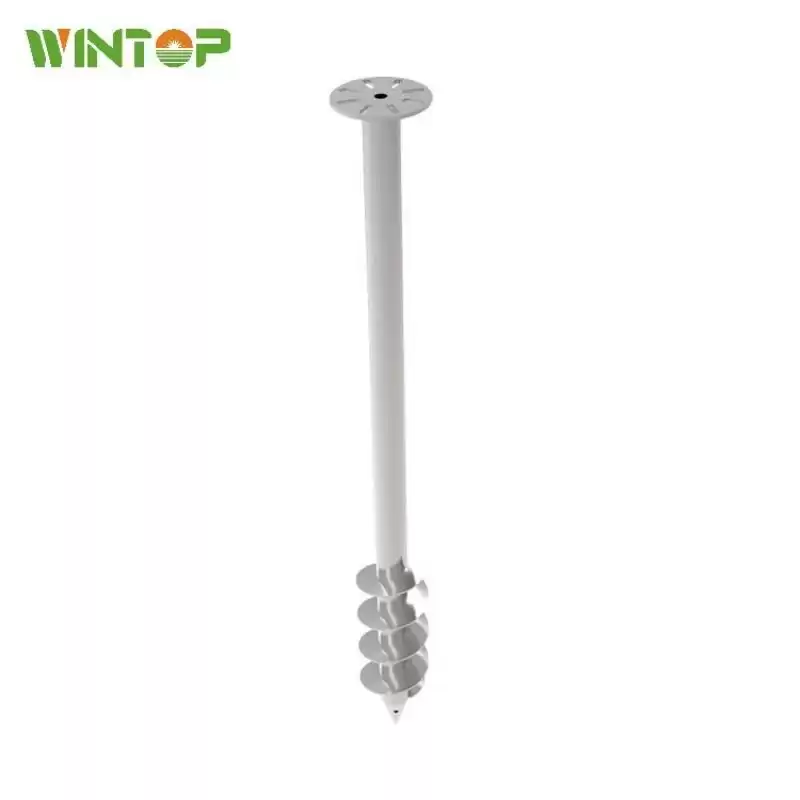

Q235 Hot-dip Galvanized Ground Screw for Solar System

Wintop solar galvanized ground screw are widely used in various soils such as sand and loam.


  • ModelDZ-0059
  • Service Lifemore than 20 years
  • Warranty10 years
  • BrandWintop

Q235 Hot-dip Galvanized Ground Screw for Solar System


Production process of hot-dip galvanized bolts

The bolts are degreasing and derusting to show a non-polluting and infiltrating surface. They are immediately immersed in a plating tank where the zinc is melted beforehand. The method of forming a layer of zinc coating on the surface of the workpiece.

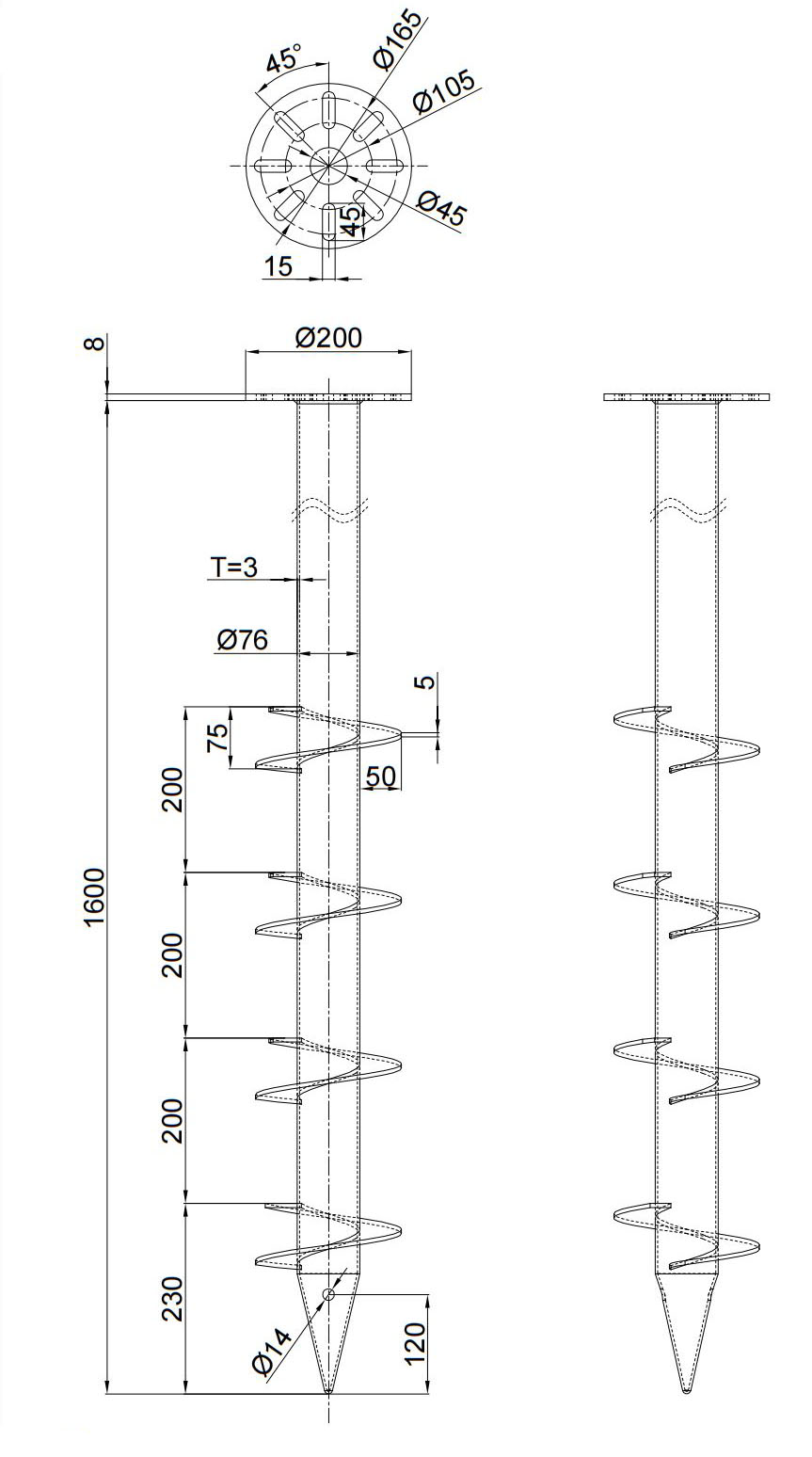

Dimensions


Technical Parameters

Installation location Ground
Wind load 60m/s (216kmh/133mph)
Snow load 1.4KN/m²
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material AL6005-T5(Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years


Features & Benefits

  • Strong anti-corrosion ability
  • Good adhesion
  • Hardness of the galvanized layer
  • Easy to install

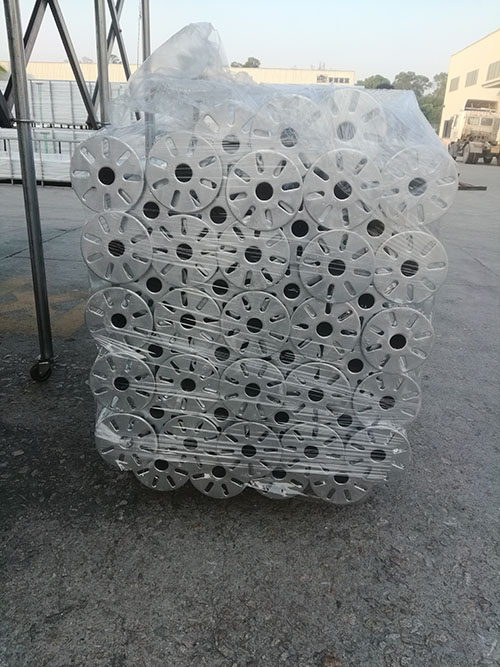

Package

ground screw packagesolar ground screw delivery



FAQ

1.Can I use a regular screw as a ground screw?
It's not acceptable to use a regular screw as a ground screw.WINTOP's ground screw is perfect matched the solar mounting structure as one of the ground solar mounting solutions.
2.How many kinds of your structures?
At present,N shape,W shape,A shape,2V shape and T shape are offered.If you need more info about them,please feel free to send inquiry here.
3.Can solar panels be mounted on the ground?
Mostly, when households are considering to install solar power system, rooftop solar will be their first choice. But if you don’t have enough space of rooftop to support solar panels, how can you do? Ground mounted solar panels can be an ideal choice. In comparison, ground mounted solar panels don’t have many limitations as rooftop. Even can DIY to provide larger power than rooftop system. That means it can not only save electricity, but also earn money for you sometime.
4.What is a qualified ground screw?
When it comes to high-quality ground screw, in a sense, it should be in good quality, longer life, better, however, we prefer to tell customers to choose the most suitable ground screw. Usually, we will do before construction of a soil survey report, then our engineers will design the most suitable for the customer's design, which is what we call "good."
5.What type of soil is suitable concrete?
Rock accounting for more than 70% in the soil, suitable as a concrete foundation.
6.What is the thickness of your product?
Most of them are 1.3mm, some special may be 1.4mm.
7.ground screw can load much support?
Depending on the type of soil. Higher soil density, can support heavier soil.
8.After the grounding screw drilled into the soil and then pull it out again, it will affect the load capacity?
Exactly! That is why the workers should be skilled.
