QMA Male to N Female RF Coaxial Adaptor

QMA adapters Features:

  • Allow to interface QMA connectors with QMA, N or SMA connectors;
  • Has female to male or male to female gender varieties;
  • Quick disconnect version of the SMA adaptor and shares the same internal construction;
  •  Excellent performance up to 18GHz;
  • Because of the innovative coupling mechanism, a 360-degree butt joint is maintained resulting in low RF leakage;
  • QMA series offers a more convenient installation than SMA;
  • The interface mates with a snap-on instead of a threaded coupling, has a significant time advantage.

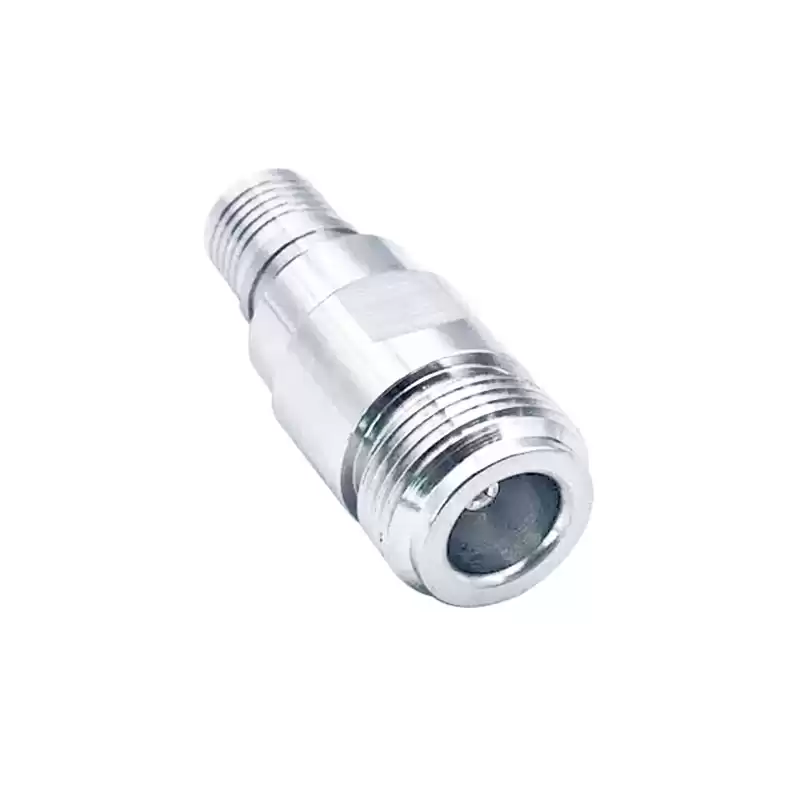

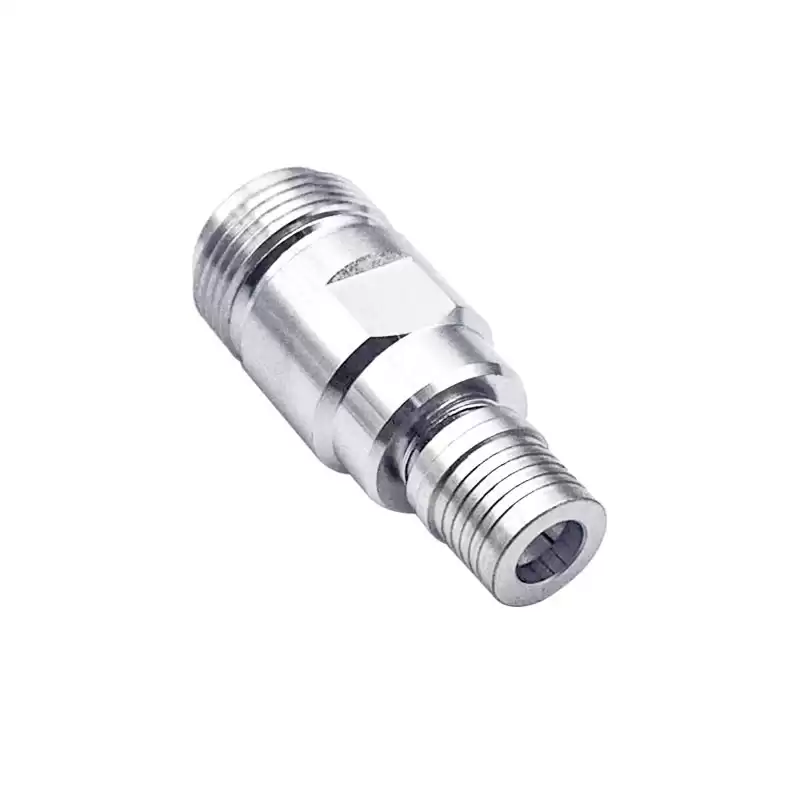

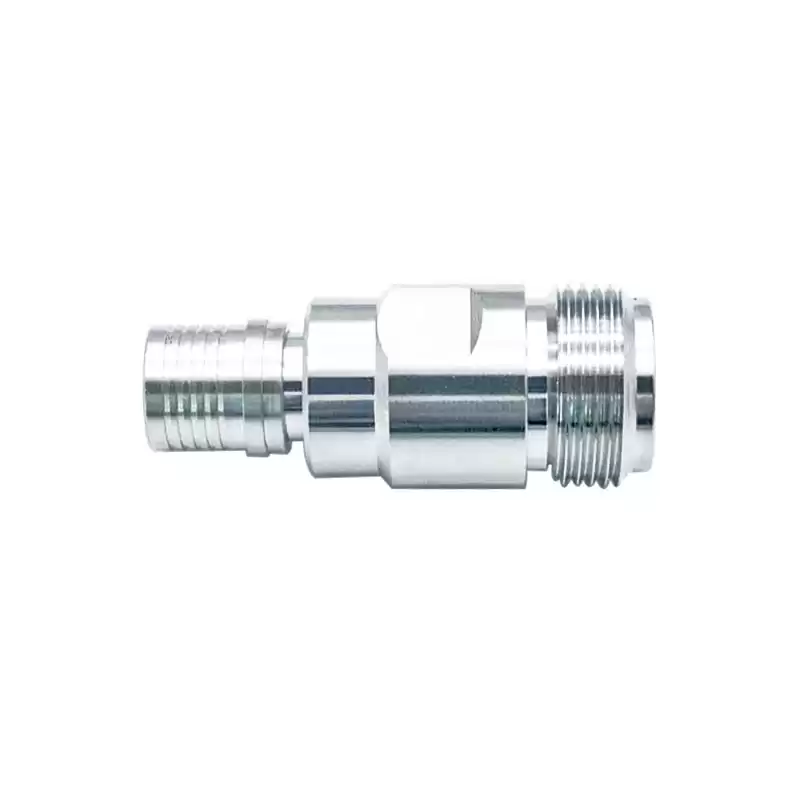

QMA Male to N Female RF Coaxial Adaptor



The QMA Adapter has different QMA to N adapter gender, is a between series coaxial adapter. The QMA to N adapters has female to male, female to female, male to female or male to male gender varieties. This QMA male to N female adapter has a maximum frequency of 11GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series QMA
Adapter Side 1 Style Male
Adapter Side 2 Series QMA
Adapter Side 2 Style Female
Frequency (Max GHz) 11
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Base stations
  • Wireless LAN
  • Broadcast systems
  • Microwave Radio
  • Radar equipment
  • Satellite systems




Product Tags QMA Male to N Female Adaptor          QMA to N Connector Adaptor          QMA to N Coaxial Adaptor          QMA to N RF Adaptor          QMA Male to N Adaptor          QMA to N Adaptor Male
