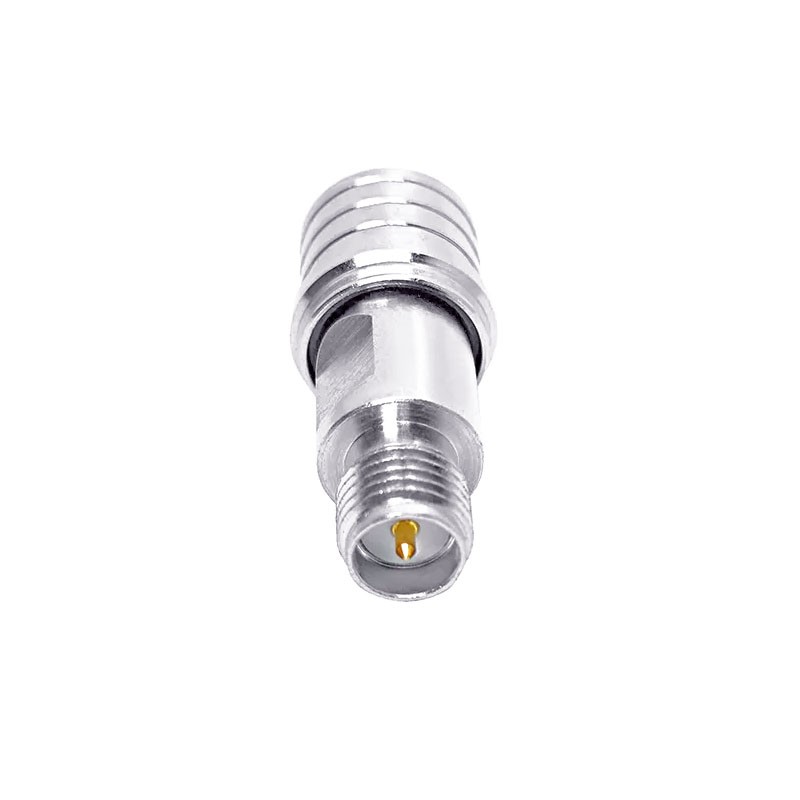

QMA Male to RP SMA Female RF Coaxial Connector Adaptor

QMA adapters Features:

  • Allow to interface QMA connectors with QMA, N or SMA connectors;
  • Has female to male or male to female gender varieties;
  • Quick disconnect version of the SMA adaptor and shares the same internal construction;
  •  Excellent performance up to 18GHz;
  • Because of the innovative coupling mechanism, a 360-degree butt joint is maintained resulting in low RF leakage;
  • QMA series offers a more convenient installation than SMA;
  • The interface mates with a snap-on instead of a threaded coupling, has a significant time advantage.



QMA Male to RP SMA Female RF Coaxial Connector Adaptor



The QMA Adapter has different QMA to SMA adapter gender, is a between series coaxial adapter. The QMA to SMA adapters has female to male, female to female, male to female or male to male gender varieties. This QMA male to RP SMA female adapter has a maximum frequency of 6GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series QMA
Adapter Side 1 Style Male
Adapter Side 2 Series RP SMA or SMA
Adapter Side 2 Style Female
Frequency (Max GHz) 6
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Base stations
  • Wireless LAN
  • Broadcast systems
  • Microwave Radio
  • Radar equipment
  • Satellite systems
