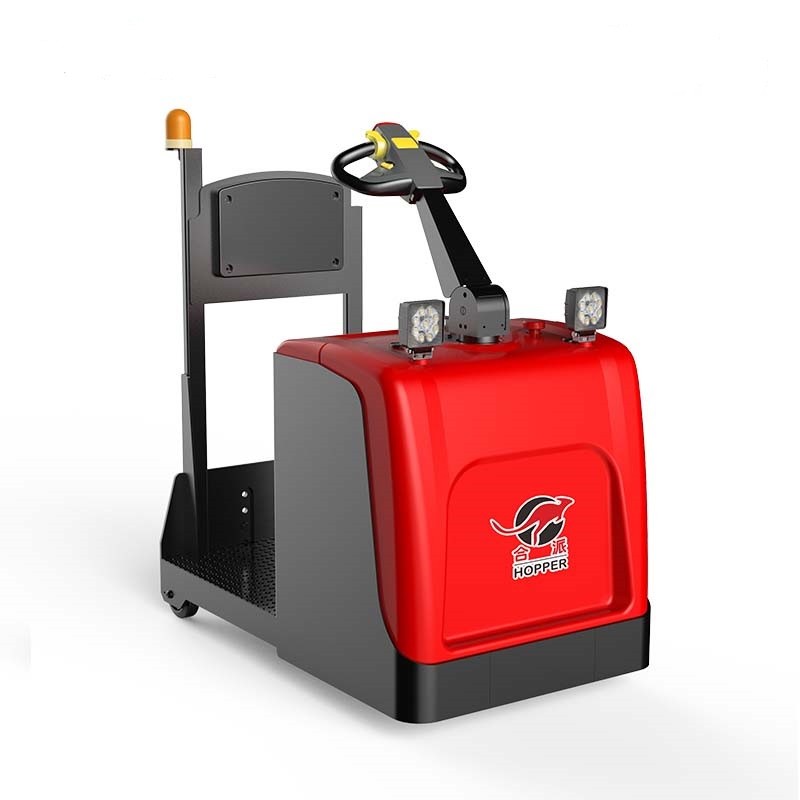

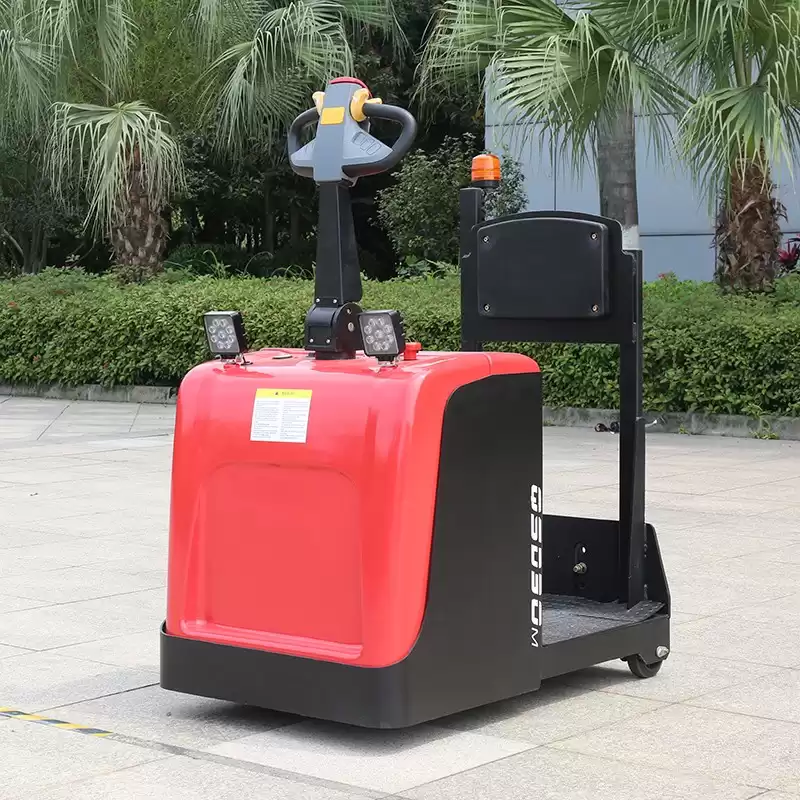

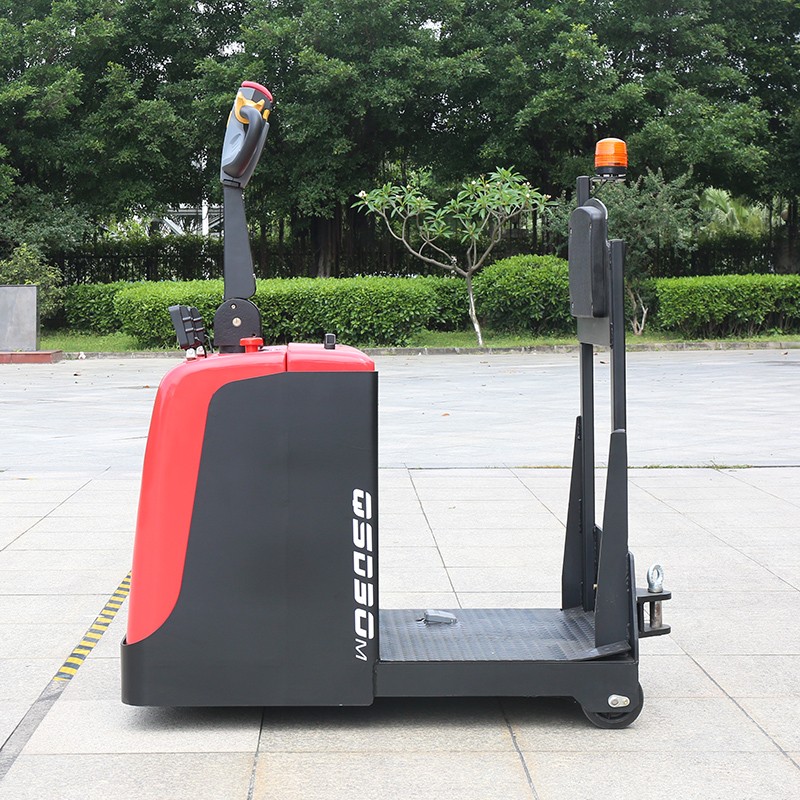

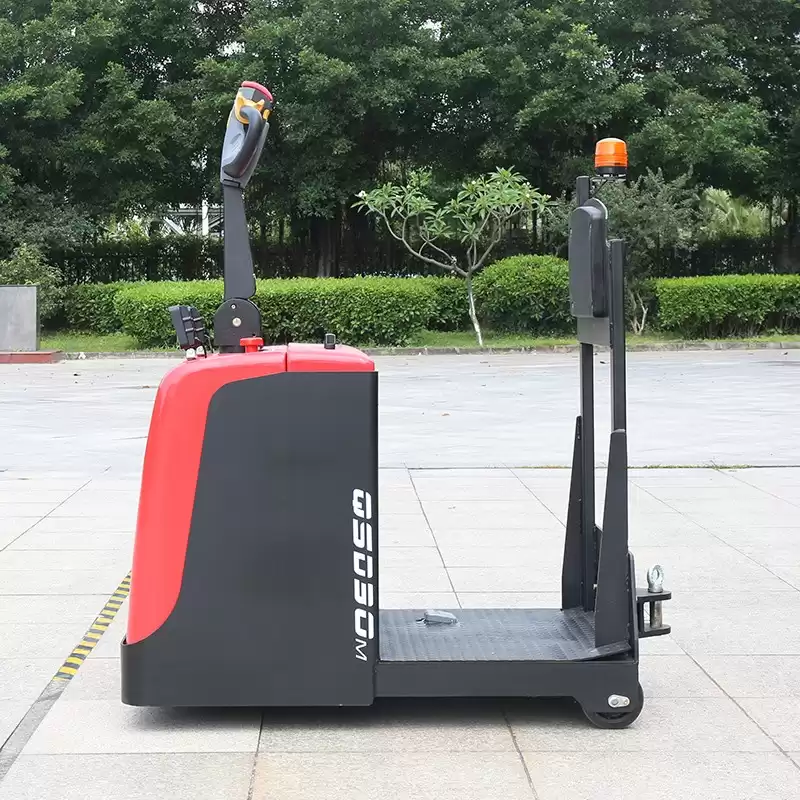

QSD30M站驾式牵引车

Load capacity/Rated load:  350KG



Overall length (Cargo fork):1 455MM



Overall width:800MM



Travel speed(aden/unladen):Referto the climbing curve



Imported CURTIS controller





ldentification 1.1 Manufacture's type designation                    HOPPER
1.2 Model     QSD20M QSD30M
1.3 Power Type     Electric
1.4 Type ofoperation     Stand-on
1.5 Steering Mode     Electric Power Steering
1.6 Wheelbase y mm 950 950
Weight 2.1 Total Weight(with battery)   kg 550 550
2.2 Axle Load(unladen):Drive side/Load-bearing side   kg 350/200 350/200
Dimension 3.1 Overall length L1 mm 1 455 1455
3.2 Overall width W1 mm 800 800
3.3 Overall height h14 mm 1610 1610

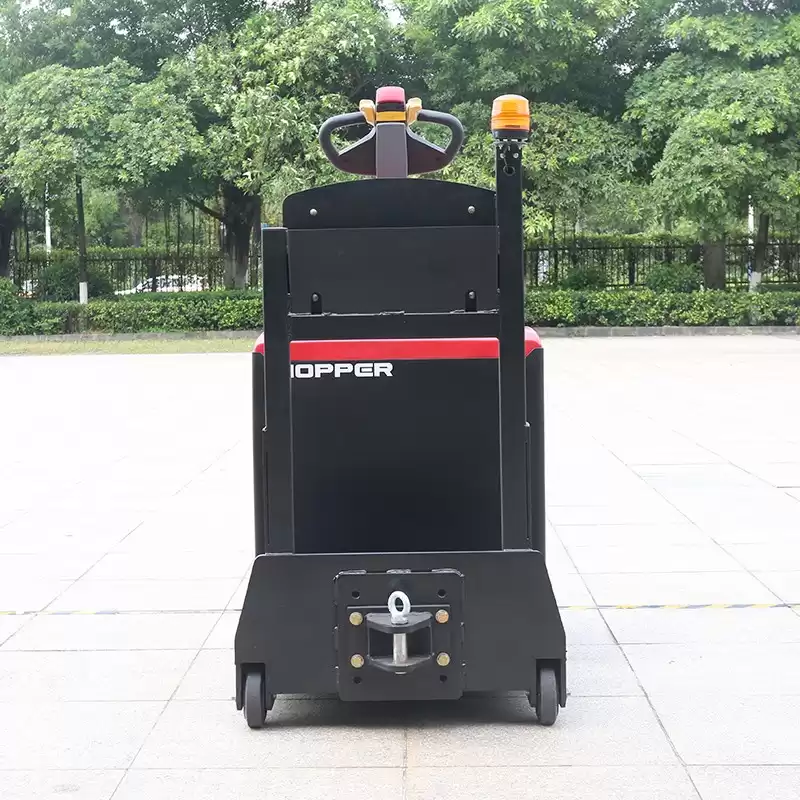

3.4 Couping Height(Hook center above ground) h10 mm 175/225/275 175/225/275
3.5 Standing Platform h2 mm 175 175
3.6 Ground Clearance at center of wheelbase (Min) m1 mm 65 65
3.7 Turning Radius Wa mm 1280 1280
Tyre 4.1 Tyre Type     Polyurethane/Rubber
4.2 Tyre Size(Front)   mm   230x75   230x75
4.3 Tyre Size(Rear)   mm   254x100   254x100
4.4 Wheels Quantity,front/rear (x=driving wheels)     1x/2 1x/2
Performance 5.1 Traveling Speed(laden/unladen)   Km/h Referto the climbing curve
5.2 Rated Draw-bar Pull F N 600 600
5.3 Max.Gradient Performance S25min laden/unladen)   % Referto the climbing curve
5.4 Service Brake Type     Electromagnetic
5.5 Parking Brake Type     Electromagnetic
Power Unit 6.1 Drive Motor Rating(AC) S2-60min   kW 1.5 1.5
6.2 Battery Vo ltage/Capacity K5   V/Ah 24/210 24/210
6.3 Battery Weight   kg 188 188
Others 7.1 Controller Brand     CURTIS CURTIS
7.2 Controller Model     1232E 1232E
7.3 Sound levelat driver's ear according to EN 12053   dB 65 65

Product Tags 3.0 Ton Seated Electric Tow Tractor QSD30M          seated electric tow tractor          electric tow tractor
