QTD125-5020 10t China Construction Machinery Luffing Tower Crane for Skyscrapers

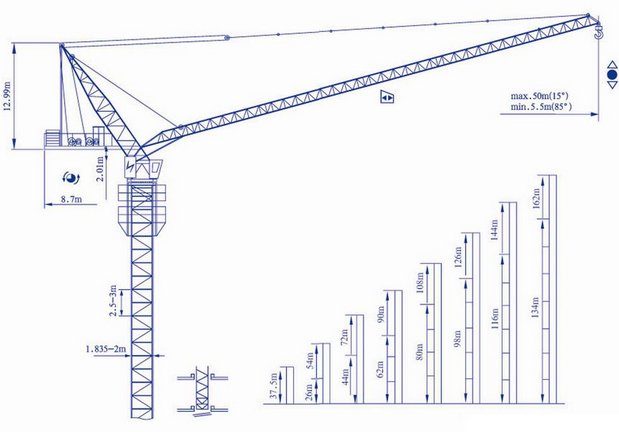

Main technical performance and parameter of 10t luffing tower crane QTD125-5020:
LOAD CAPACITY--China tower crane QTD125-5020
50m jib length
|
Radius(m)
|
3-18
|
20
|
25
|
30
|
35
|
40
|
45
|
50
|
2 falls(t)
|
5
|
4.000
|
2.990
|
2.320
|
2.000
|
4 falls(t)
|
10
|
9.090
|
7.050
|
5.350
|
4.000
|
2.990
|
2.320
|
2.000
|
Max. working range 50m, tip lifting weight 2t and max. lifting weight 10t
Hoisting mechanism fitted with three speed motor, stable braking and less shock when shifting
Trolleying mechanism can provide two operation speeds
Safety Devices:
Multi-functional travel limiter.
|
Electric alarms.
|
Anti - collision lights.
|
Hoisting load limiter.
|
Weight limiter
|
Load moment limiter
|
Height limiter
|
Slewing limiter
|
Grip block
|
Trolley brake
|
Advantages of 8t self-erected luffing crane:
1.Elements from Simens and Schneider are adopted in electrical system,performance of which is stable and reliable.
2.Main part of the tower crane is welded with CO2 gas protected welding and full-auto submerged arc welding that makes the stability of the whole machine be improved considerably.
3.The whole machine runs stably with good adjustable performance.
4.Using assembled mast section of production.
Light weight,Low air resistance, convenient transportation. It can reduce the quantity of containers
and save freight cost. Rotary dual rotary body,lifting body uses double-speed wound motor drag,
operating smoothly.
5. Material: "H" beam, Size:210*110*9mm Base size:1625*1625
Bolt No.:M33, 10.9 grade Bolt size:1200mm
after-sale service
1.One year warranty will be offered,
2. a full set of accessories are provided
3. a full set of quick-wear parts are provided
4. Besides, Professional service team is available to give technical support for the installation and maintenance of Tower Crane and construction hoist.
5. Consulting hotline to receive customers’s inquiry and regularly inquiry the customer machine usage condition, and offer technical guidance and solution to problems in operation and maintenance.
6. tower crane oversea service: for installation and debug, We shall send one technician to the site to provide guidance on installation and debugging and the training of operators if necessary.
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
Looking forward your kindly inquiry and hope to help your strong business in near future!
