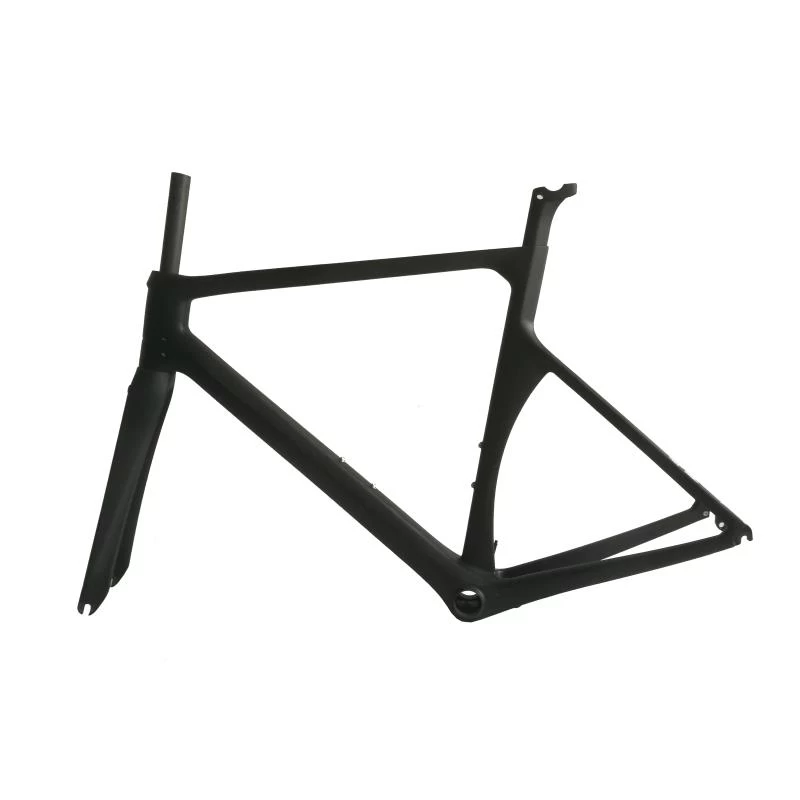

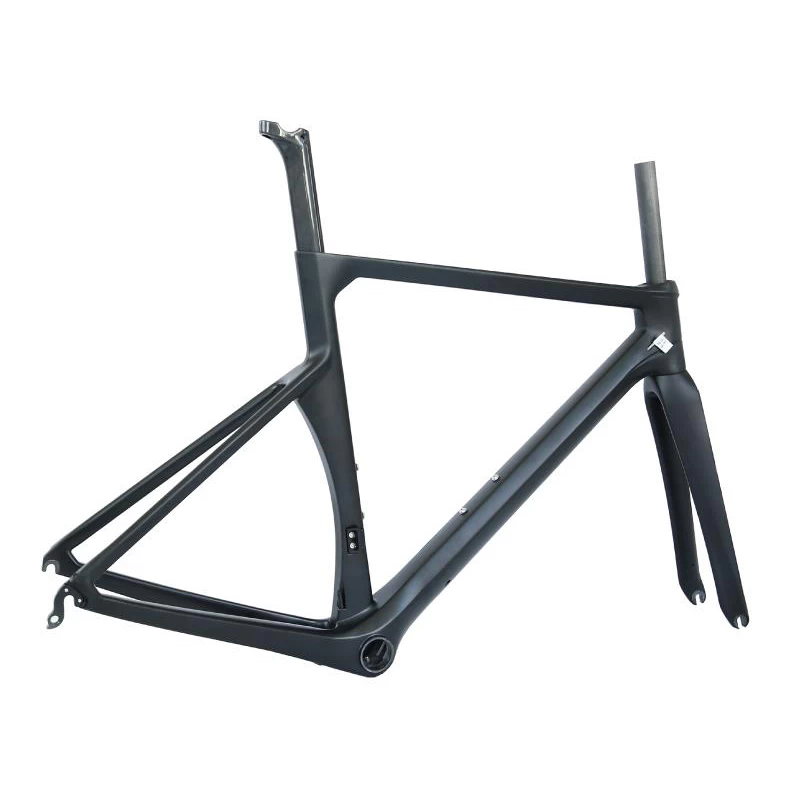

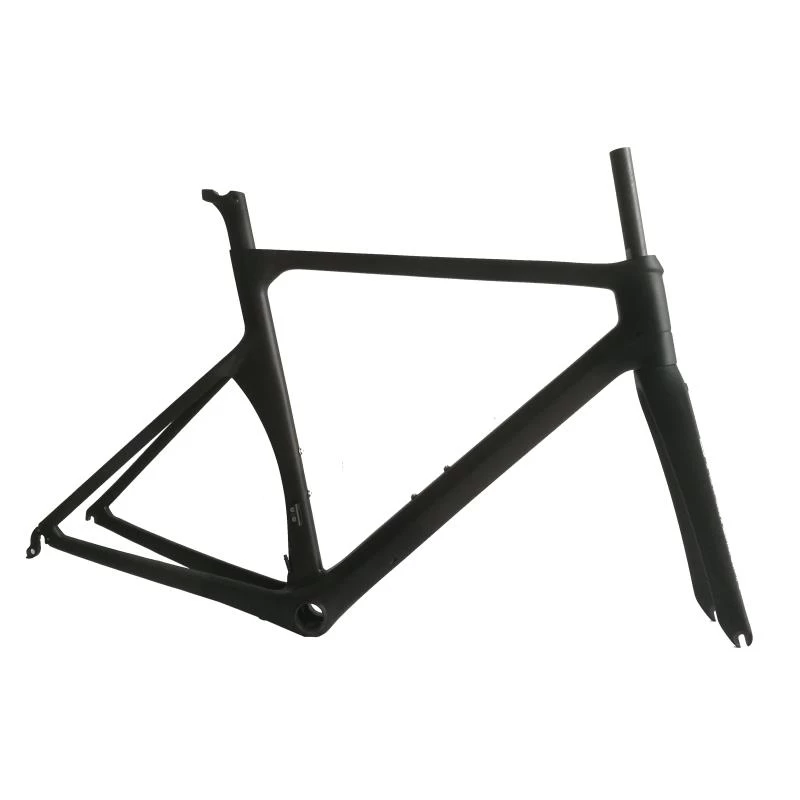

QTOUR Carbon Aero Racing Road Bike Frame R02-C

- Carbon Aero Road Bike Frame R02-C

- Caliper brake or V brake

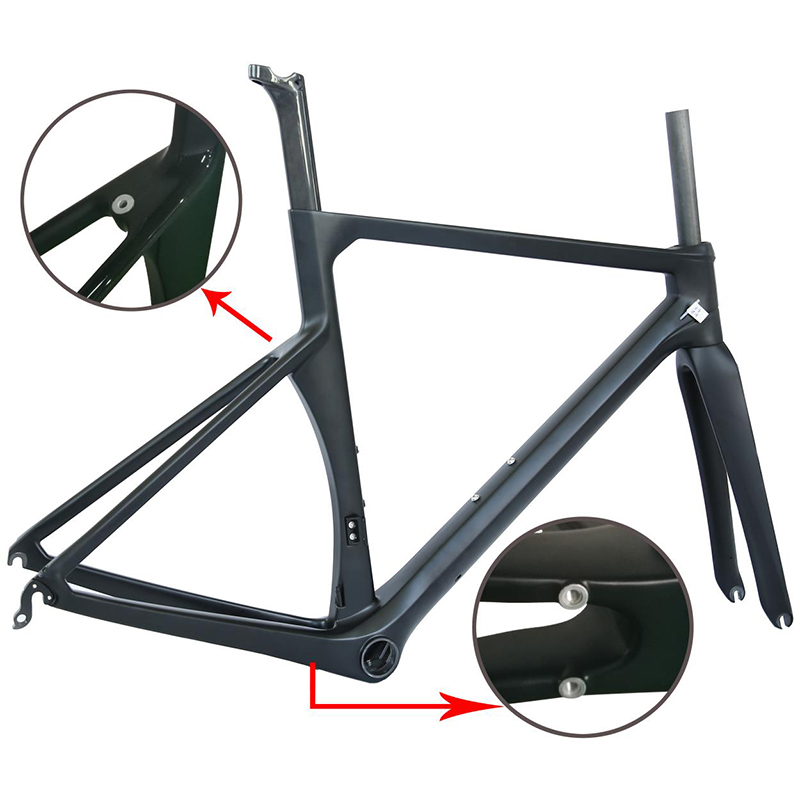

- Full internal cable routing
- Machanical and Di2 groupset compatible
- Toho carbon fiber



QTOUR Carbon Aero Racing Road Bike Frame R02-C

ADVANTAGES:
1, Material: Toho carbon fiber.
2, EPS foam molding process, inner smoothly, better strength.
3, Customized painting / Decals is acceptable.
4, Strict develop test and mass production test. (exceed 30% of ISO4210)


PRODUCTS DESCRIPTION:

Light weight carbon road racing bike frame;

With two types, one is disc brake version, another is caliper brake version, this frame is aero design;

This carbon frame will provide you a wonderful riding experience.

PRODUCT DETAIL:

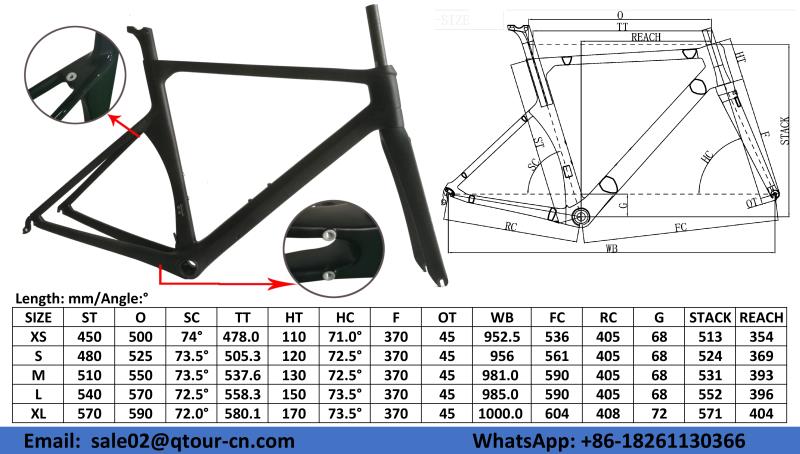

Frame: QTOUR 700C full carbon aero racing bike frame                                Model: R02-C +F02 + P02

Size: 450mm / 480mm / 510mm / 540mm /570mm                                   Brake: Caliper brake

Headtube: Tapered 1-1/8'', 1-1/2''                                                           Seatpost: Aero seatpost

O.L.D (Frame): 130mm*φ10mm                                                              Bottom Bracket: BB86 press fit

O.L.D (Fork): 100mm*φ9mm                                                                  Weight: Frame 920g±50g, Fork 425g±20g

Finish: UD matt / glossy (customized painting acceptable)                            Max Tire: 700C*28C

Test Standards: ISO4210                                                                        Warranty: 2 years


OUR FACTORY:
1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.
    Our plant covers 8.5 acres, 42,000m2 workshop, 450m2 testing room.
2, Production Capacity per year:
120,000 sets Carbon Bicycles Parts,
(Include Carbon Frame, carbon e-bike frame, carbon Rim, carbon Fork, carbon Handlebar ect)
3, We have over 10 years production experience in carbon fibre business.
4, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,
    laser cutting tech, EPS foam molding, monocoque and robot painting equipments.
5, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.
6, Small order and sample order are accepted, OEM & ODM avilable too.


Test Standards: ISO4210. In order to make our products more stiff and strong we have raised up 30% for strict test.

Carbon road bike frame, carbon e-bike frame, carbon e-mtb frame, carbon e-racing frame, carbon e-gravel frame, carbon mtb frame,

Carbon Road Bike Racing Frame; Carbon Aero Road Bike Frame;
