QTZ40(4808) 4t electric self erecting topkit tower crane

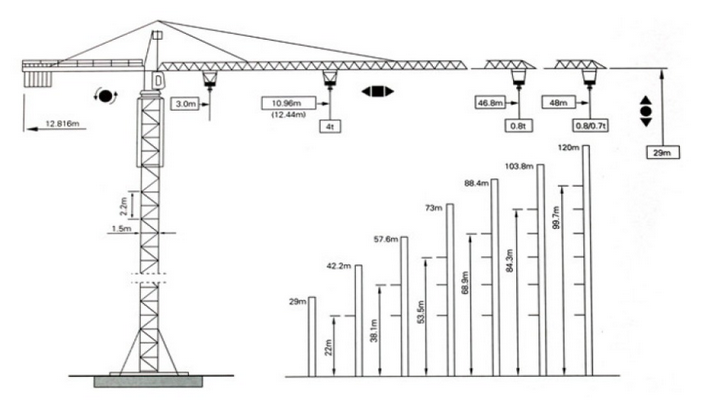

1.The Design Drawing for QTZ40 series 4808 model top kits tower crane self erecting tower crane 4t electric tower crane
2. The Technical Specification for QTZ40 series 4808 model top kits tower crane self erecting tower crane 4t electric tower crane
Series
|
QTZ40
|
Standard Model
|
4808
|
Max. Lift Load
|
4t
|
Tip Load
|
0.8t
|
Free Standing Height
|
29m
|
Max.Anchorage Height
|
120m
|
Jib Length
|
48m
|
Mast size
|
1.5×1.5×2.2m
|
Lift Mechanism
|
Lifting Speed
|
(a=2) 70/35/9 m/min
(a=4) 35/17.5/4.5 m/min
|
Lift motor
|
15/15/4 kw
|
Wire rope diameter
|
12.5 mm
|
Trolley Mechanism
|
Trolley speed
|
39/26 m/min
|
Trolley Motor
|
1.5/2.2 kw
|
Slewing Mechanism
|
Slewing Speed
|
0.62 r/min
|
Slew Motor
|
3.7 kw
|
Jacking Mechanism
|
Jack Climbing Speed
|
0.4 m/min
|
Jack Climbing motor
|
4 kw
|
Power
|
380V/50Hz/3P
|
Luxury Operate Cabin,Schneider Electric Parts
|
3. Feature & advantage of QTZ40(4808) topkit tower
1.suitable for all kinds of construction project and can work under all kinds of work condition.
2.It has high working speed, good speed-adjusting performance, steady operation and
high efficiency.
3.The crane has complete set of safety devices, which can guarantee the safe and high efficienct
operation of the equipment.
4.Three-speed motor and mono-speed ratio decelerator are applied in the lifting struction, which
enables heavy load low speed and light load high speed.
5.Planet gear decelerator is applied in the circumgyrating structure, together with moment-limiting
hydraulic coupler, which can relize high load capacity, steady starting and reliable operation.
4. Safety features:
1. Overload protection:If the material is over the capacity, the crane will give a sharp warning for
protection itself.
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the
emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection
