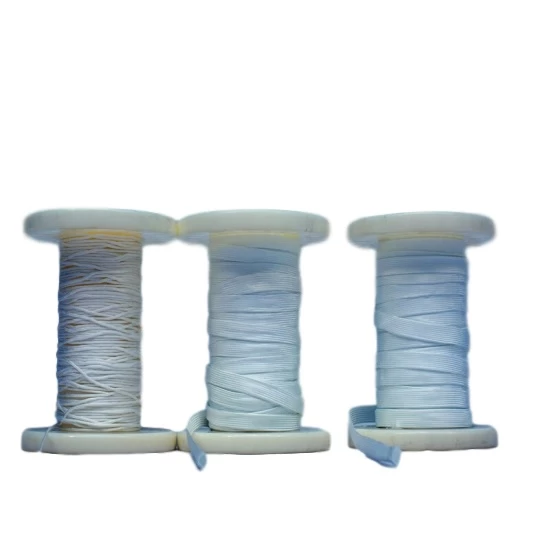

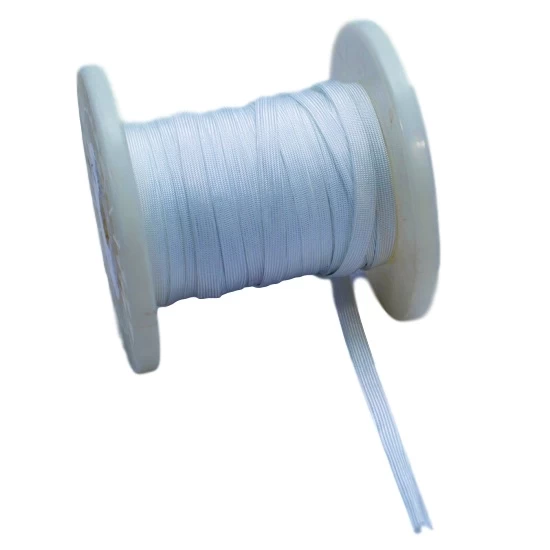

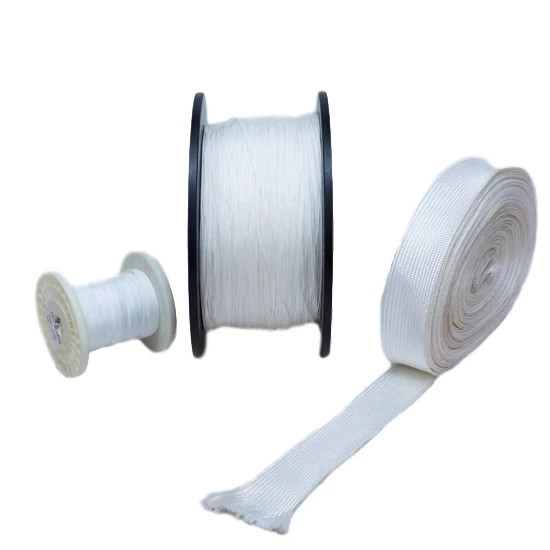

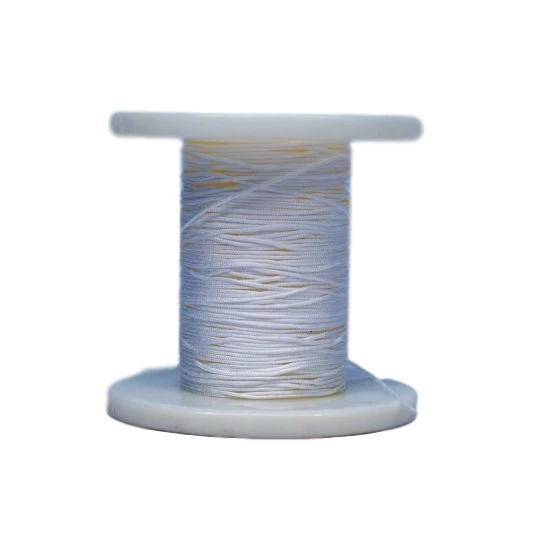

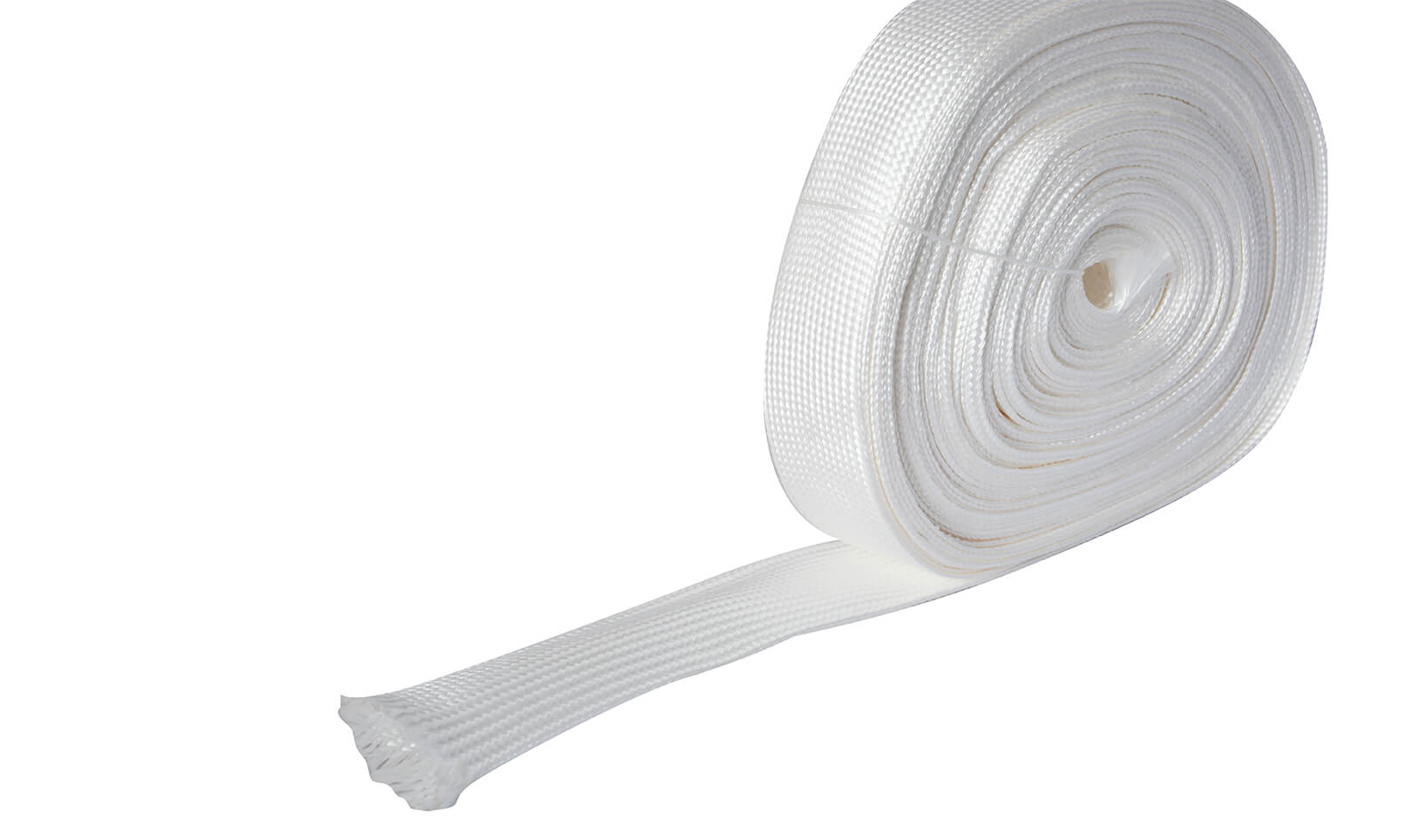

Quartz Fiber Braided sleeve
1.Product Introduction
ZBAO Quartz Fiber Braided sleeve is braided by Quartz fiber, SiO2≥99.9%. This fire sleeve is outstanding high temperature resistant and outstanding electrical insulation properties. Its dielectric constant and dielectric loss factor is the best of all Mineral fiber.Working temperature: Continues working at 1050℃, short term 1700℃.
ZBAO Quartz Sleeve is widely used in aerospace, military industry, semiconductor, oil chemical industry, building construction, electrical and electronic as thermal insulation and high temperature filtration material.
2.Product Characters
|
Size/inner diameter
|
0.5mm-70mm
|
|
Material
|
Sio2 Fiber
|
|
Colour
|
White
|
|
Working temperature
|
1050℃
|
|
Character
|
Smooth, soft, extreme high tempt. & flame resistant, high insulation, low friction
coefficient ,chemical resistant，avoiding splashing of the molten iron and electric
spark.
|
3.Standard Specifications
|
ZBAO Part No.
|
Inner diameter/mm
|
Weight(g/m)
|
Roll Length/m
|
|
ZBQF-S-1
|
1
|
1.7
|
50-100
|
|
ZBQF-S-2
|
2
|
2.7
|
|
ZBQF-S-3
|
3
|
3.4
|
|
ZBQF-S-5
|
5
|
5.2
|
|
ZBQF-S-8
|
8
|
7.09
|
|
ZBQF-S-10
|
10
|
10.7
|
|
ZBQF-S-15
|
15
|
20.5
|
|
ZBQF-S-20
|
20
|
30
|
|
ZBQF-S-22
|
22
|
35
|
|
ZBQF-S-25
|
25
|
40.5
|
|
ZBQF-S-30
|
30
|
46.3
|
|
ZBQF-S-35
|
35
|
53
|
30-50
|
|
ZBQF-S-40
|
40
|
59.7
|
|
ZBQF-S-45
|
45
|
66.5
|
|
ZBQF-S-50
|
50
|
74
|
|
ZBQF-S-55
|
55
|
83
|
|
ZBQF-S-60
|
60
|
90.5
|
|
ZBQF-S-65
|
65
|
110
|
|
ZBQF-S-70
|
70
|
132
|
