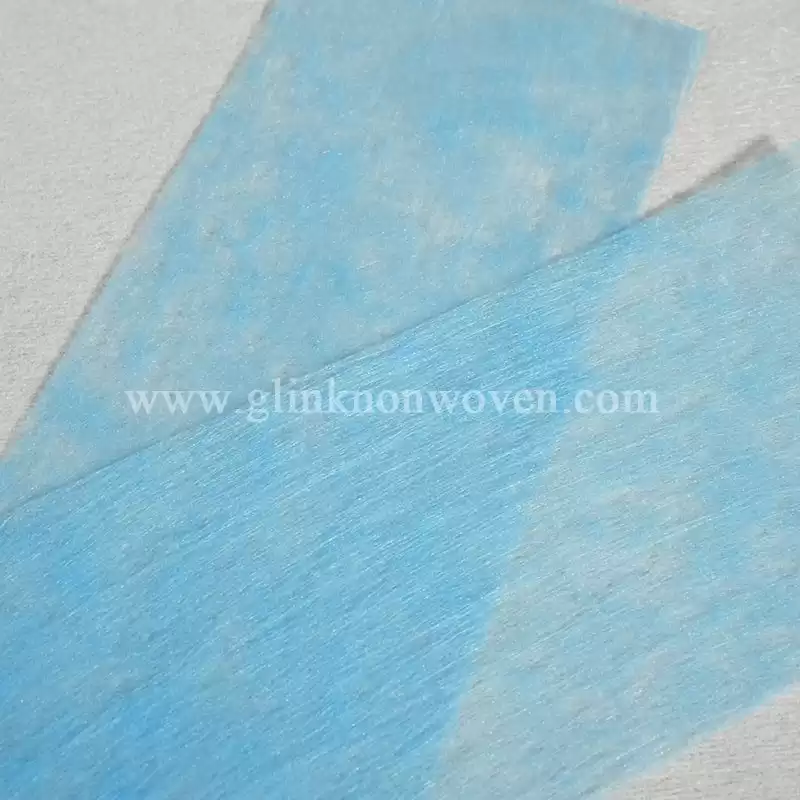

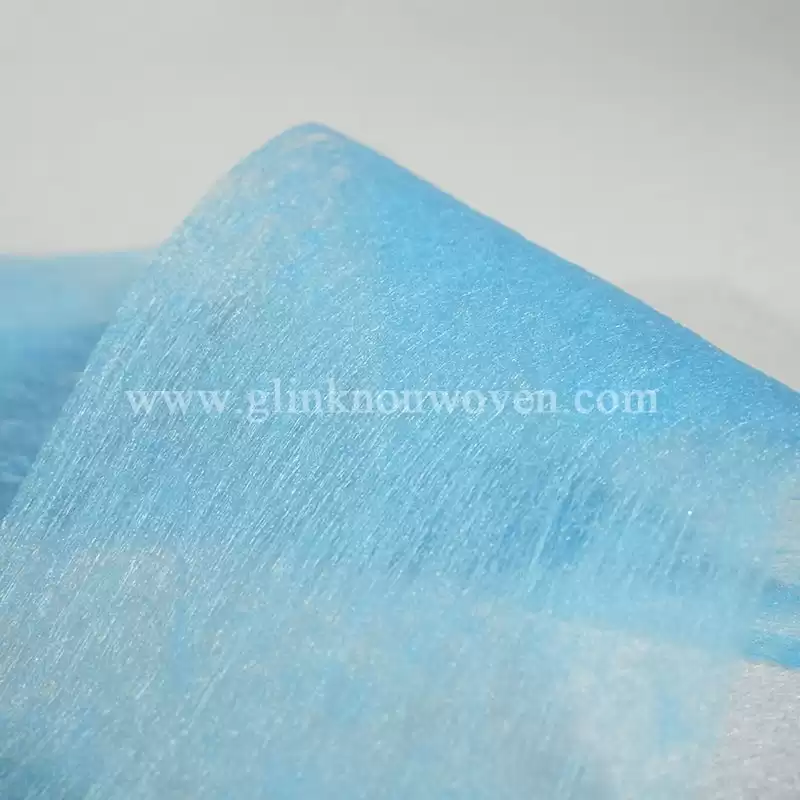

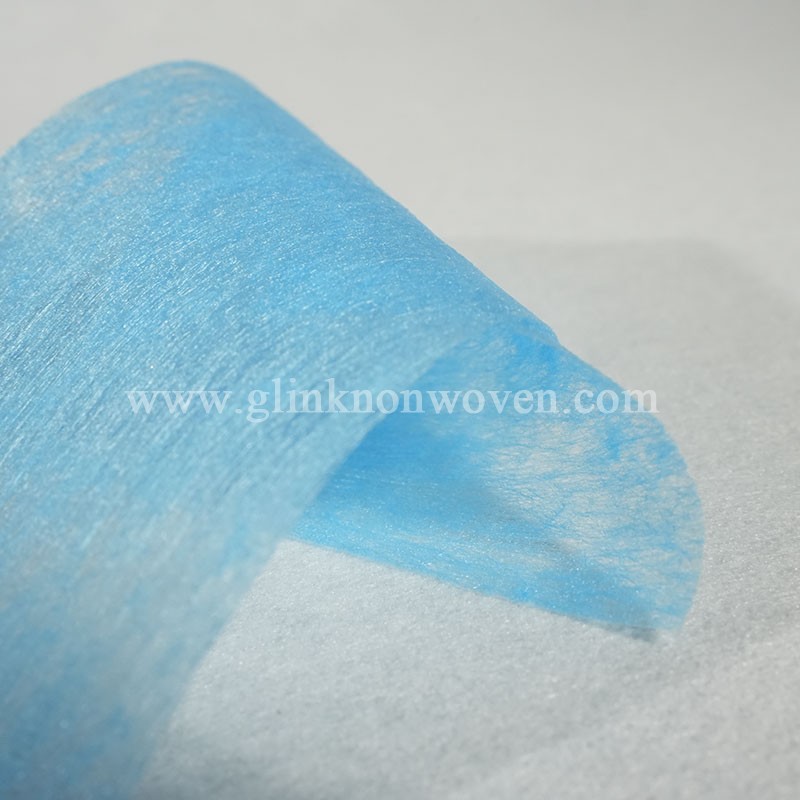

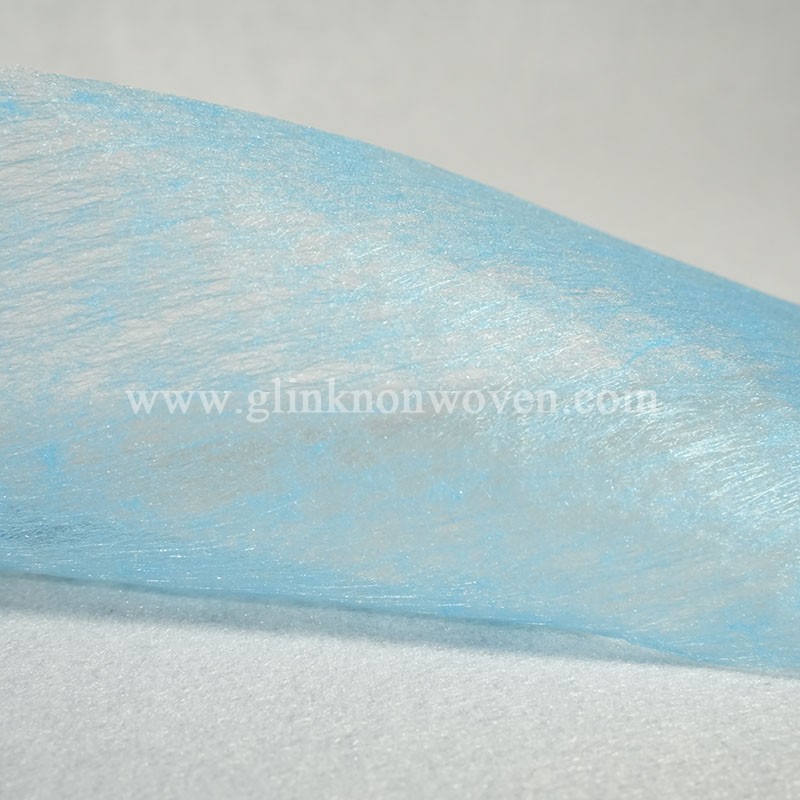

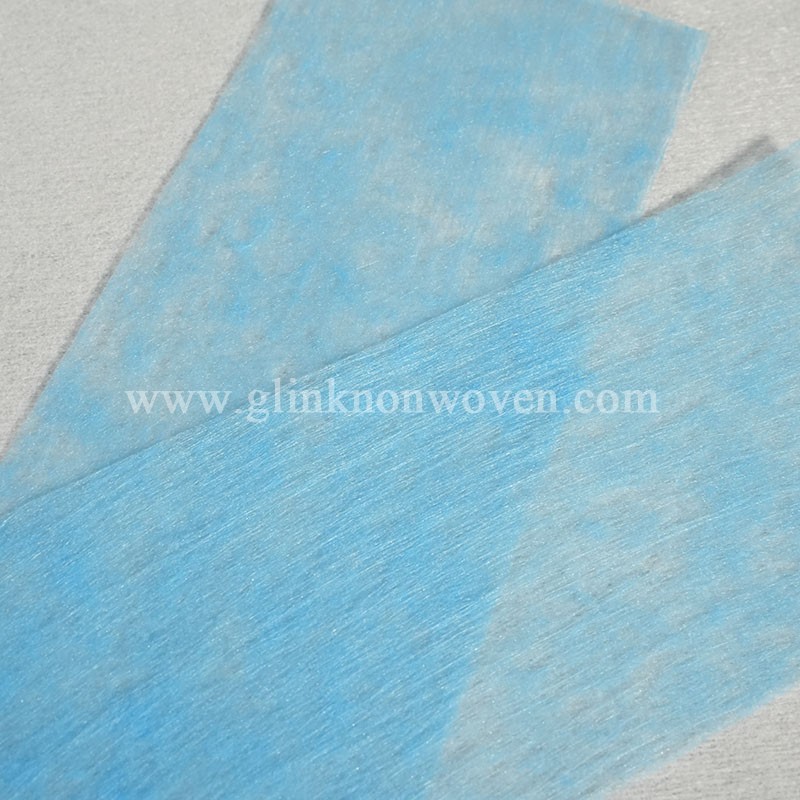

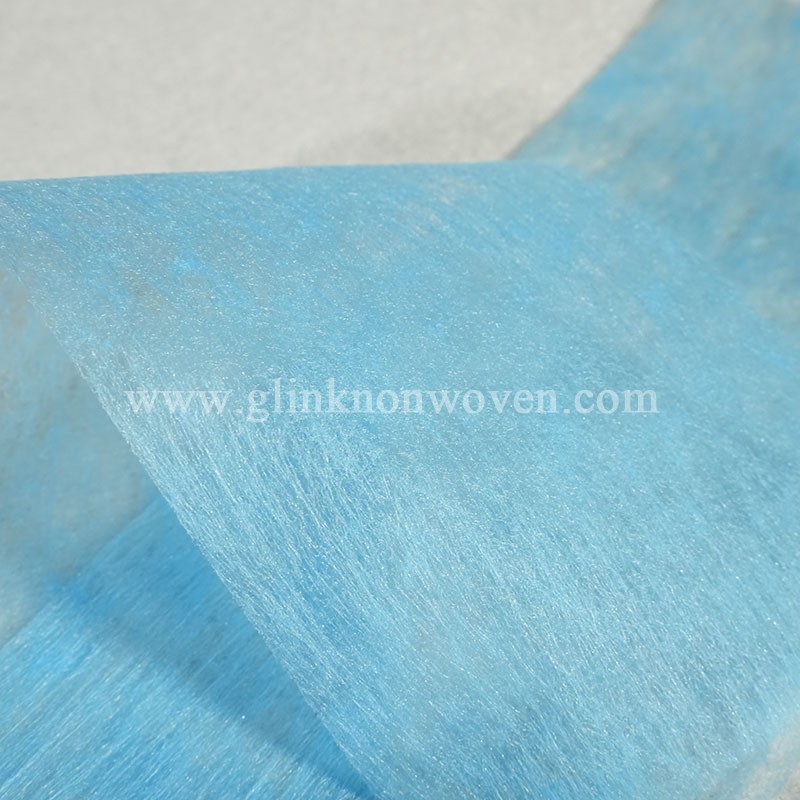

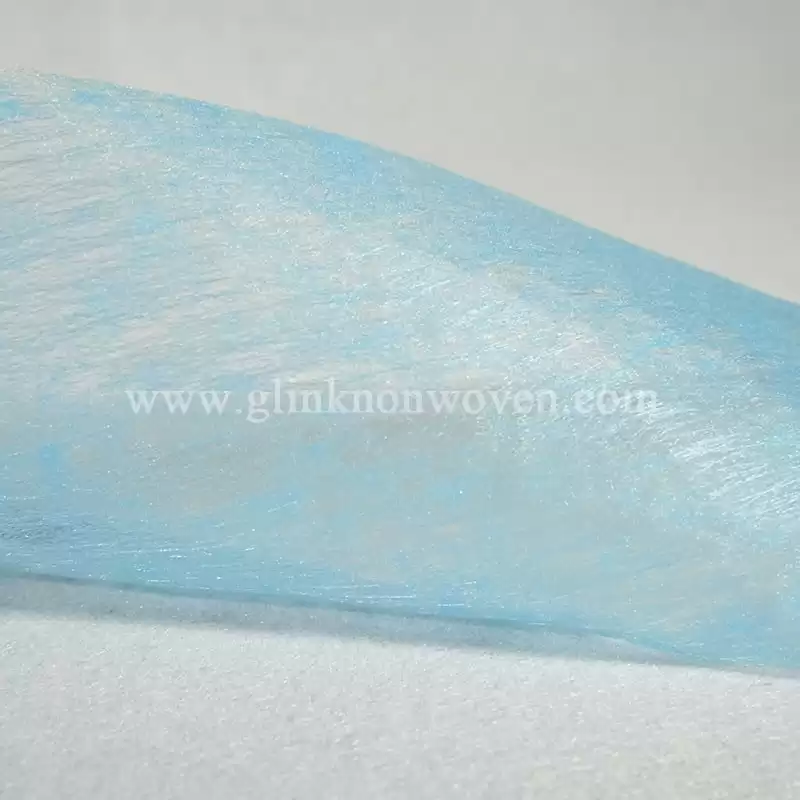

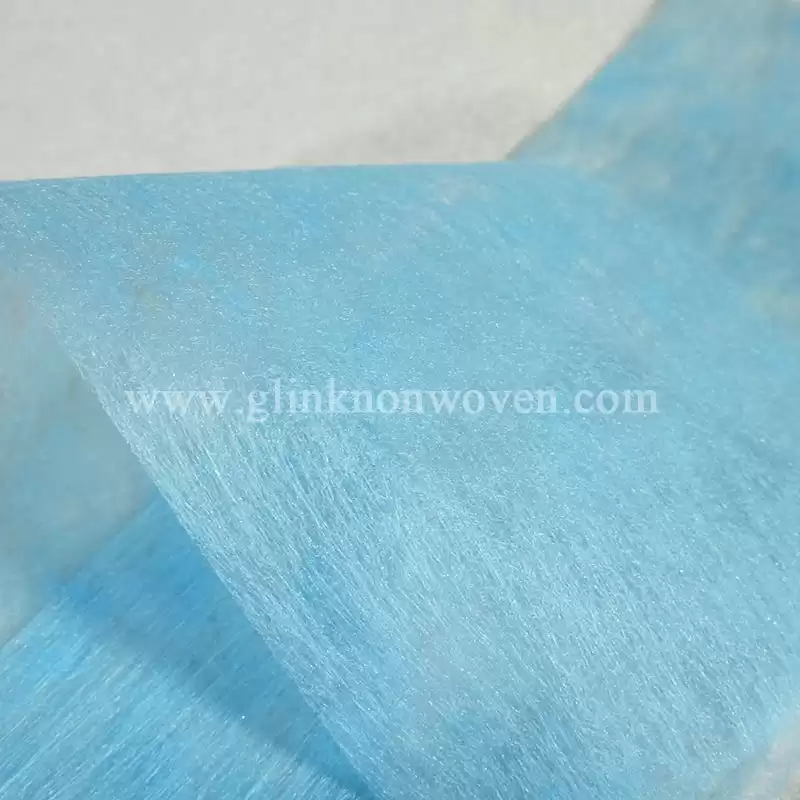

Quick absorence ADL flow guiding layer non-woven fabric for pants diaper

The ADL flow guiding layer plays a crucial role in baby diapers. It is a specially designed non-woven fabric layer located between the surface material and the absorbent core of the diaper.



Product Description

ADL nonwoven raw material is one of the core materials that enable diapers to function efficiently. ADL flow guiding non-woven fabric has excellent flow guiding performance. After the baby's urine is discharged, it can quickly and evenly spread the urine, avoiding the concentration of urine in one place, reducing the time for the baby's skin to be soaked in urine locally, and effectively reducing the probability of red buttocks. At the same time, the good water absorption of absorbency core ADL nonwoven for baby diaper can quickly lock in urine and keep the surface dry. Compared with ordinary materials, ADL flow guiding non-woven fabric has higher liquid absorption speed and volume, keeping babies' little buttocks in a comfortable state at all times.

Product Attributes

Items Unit Requirement Result Test Method Judging
Basic weight gsm 35±2 34.6 Electronic scale OK
Width mm 80±2 80 Thickness gauge (micrometer) OK
3D- Dimensional Thickness mm 0.65±0.2 0.65 Meter ruler OK
Tensile strength MD N/5cm ≥56.5 59.5 JIS L1085-2005 OK
CD ≥12.8 13.6 JIS L1085-2005 OK
Breaking elongation MD % ≥36.1 38.4 JIS L1085-2005 OK
CD ≥67.9 69.8 JIS L1085-2005 OK
Fluid Penetrating Rate 1st S 2 1.11   OK
2nd 3 2. 37   OK
3rd 4 3. 28   OK
Softness / Soft Soft   OK
Fluorescence reaction / No No   OK
Material was suitable to use in hygiene product.



Product Application

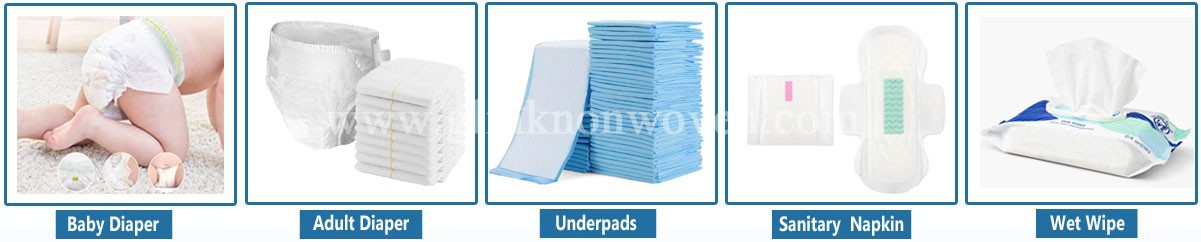

The essential component for manufacturing diapers, ADL nonwoven fabric, finds its application in the production of various hygiene products such as baby diapers, adult incontinence diapers, disposable nursing pads, and sanitary napkins.

ADL Layer

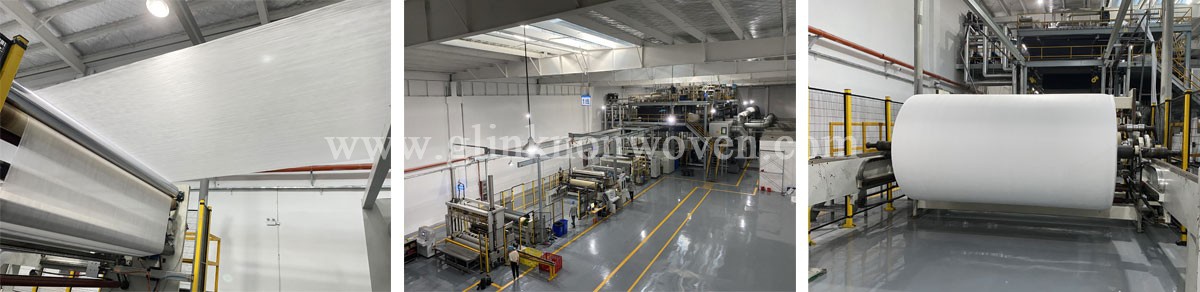

Factory Workshop

The production process of ADL non-woven fabric mainly includes fiber pretreatment, web formation, reinforcement, and post-treatment to form a fabric with flow guiding function.

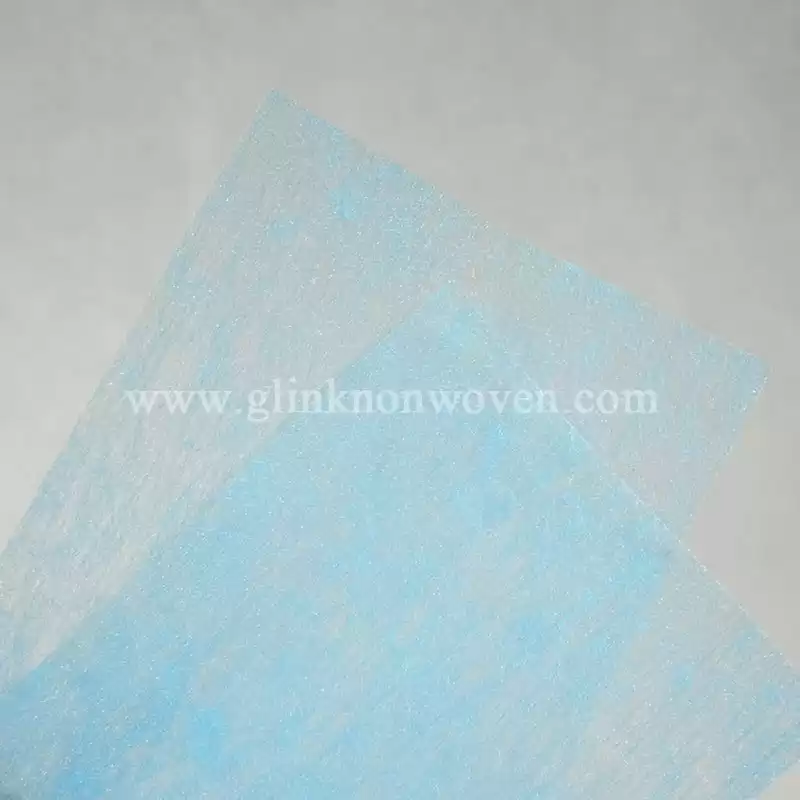

ADL nonwoven fabrics

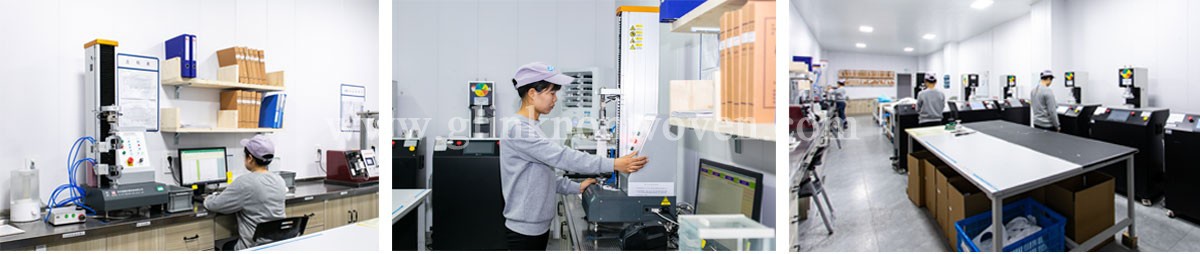

Lab & Testing

Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.

hygiene materials ADL



Related Products

Our products cover spunbond nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.

sanitary pads raw materials

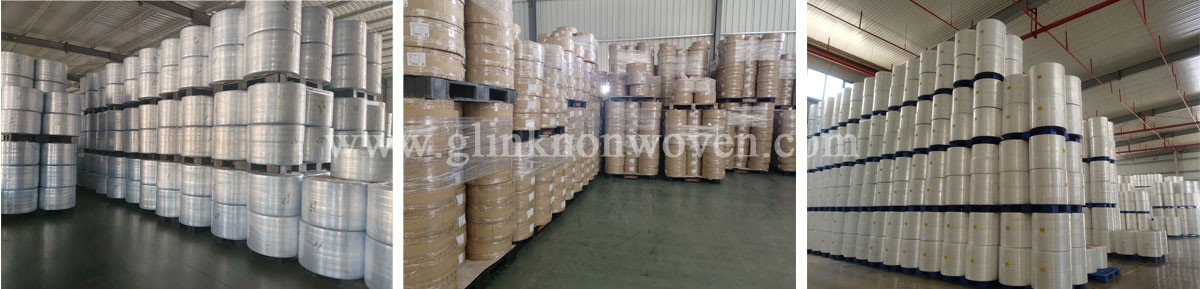

Warehouse

We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.

ADL nonwovens

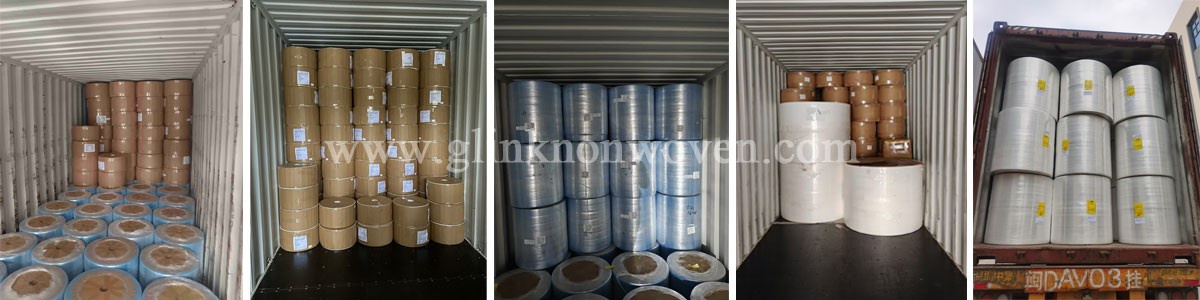

Packing & Shipment

Renowned for our integrity within the industry, formidable capabilities, and top - notch product quality, we have successfully exported our products to regions including Southeast Asia, Africa, and South America. Backed by a professional and proficient service team and a firm dedication to honesty, we are certain that we can continuously provide value to our customers and establish successful partnerships, thus ensuring a prosperous future. ADL in diaper making



Our Service

1. Intensive procurement to reduce costs

2. Double quality control

3. Focus on the hygiene products industry, professional manufacturers and one-stop service providers

4. Worry-free after-sales service

5. R&D team and invention certificate

6. 15+ professional equipment engineers one-to-one technical support service

7. Core members of the service team, with more than 15+ years of industry experience

8. Professional design team provides free design solutions
