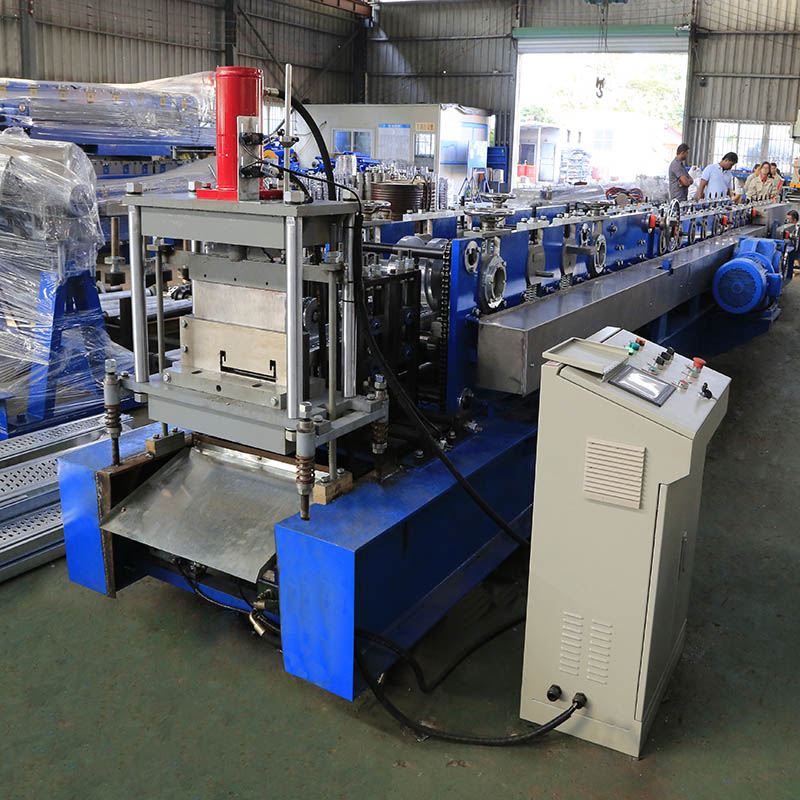

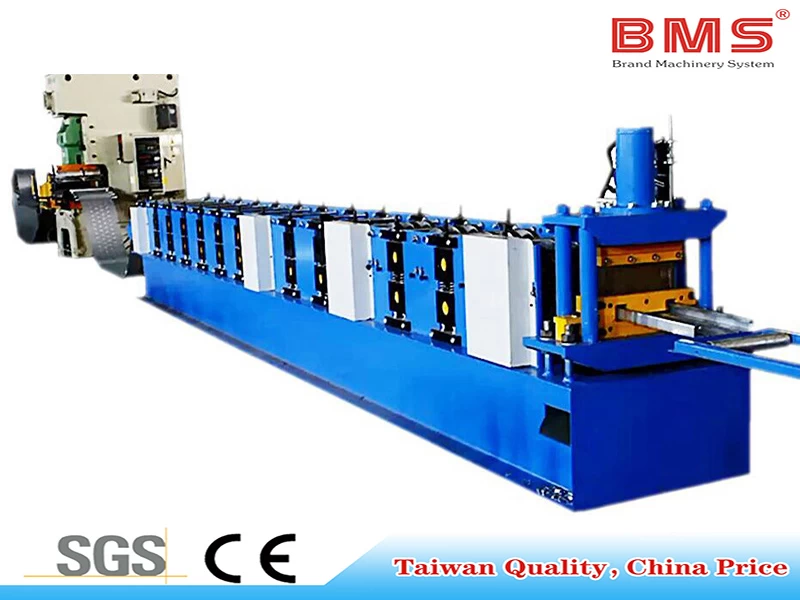

Quick Change Scaffold Plank Roll Forming Machine

Use indepent punching machine will improve the produce speed.




Quick Change Scaffold Plank Roll Forming Machine



Click Here To View The Video:Other Video;Scaffold Plank Welding Video.


scaffold plank roll forming machine

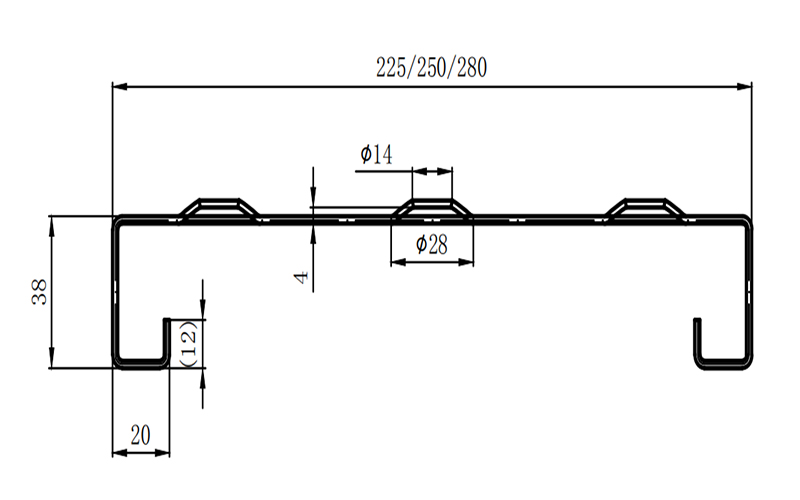

Profile(Change Size By Spacer)

scaffold plank roll forming machine



Material

Material Thickness:1.5-2.0mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :245-550Mpa

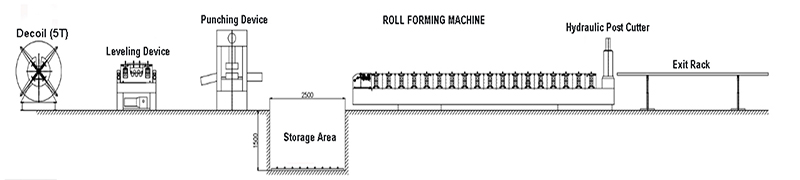

Work Follow

Decoiler→Leveling Device→Punching Machine→Guide Feeding→Roll Forming System→Hydraulic Post Cutter →Exit Rack


scaffold plank roll forming machine



Machine Components

1) Manual Decoiler: one set


Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 500mm,coil ID range 508mm±30mm Capacity: Max. 5 Ton.

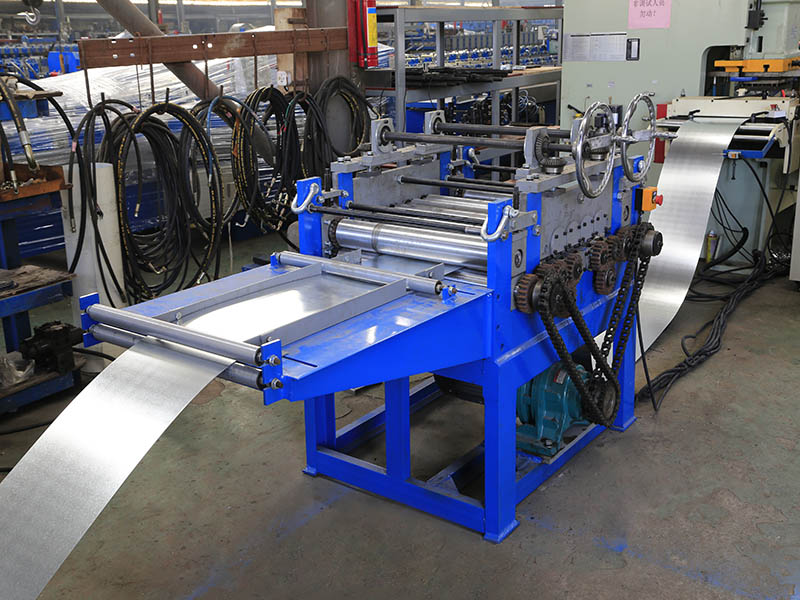

2) Leveling Device


With feeding material guide, body frame made from H450 type steel by welding.
Side wall thickness:Q235 t20mm.
Shafts manufactured from 45# steel,Diameter=φ75/90mm,precision machined.
Motor power:4KW.


scaffold plank roll forming machine

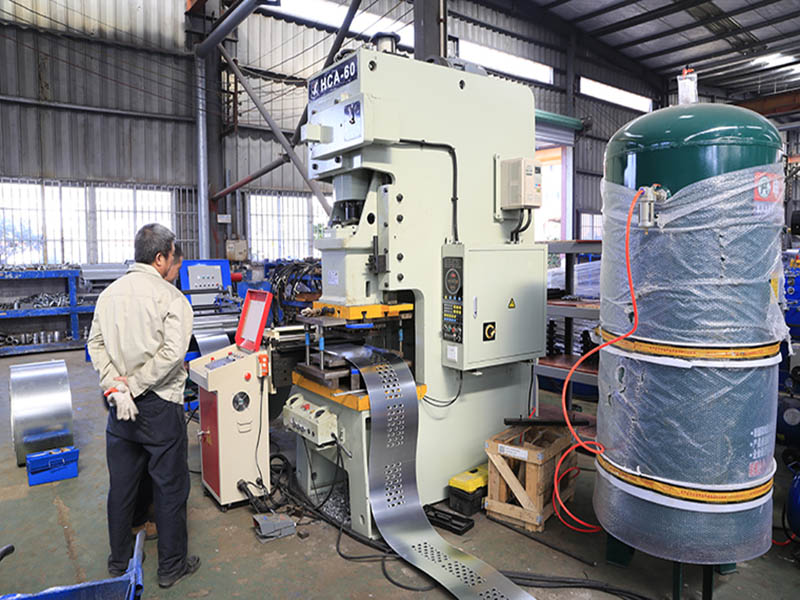

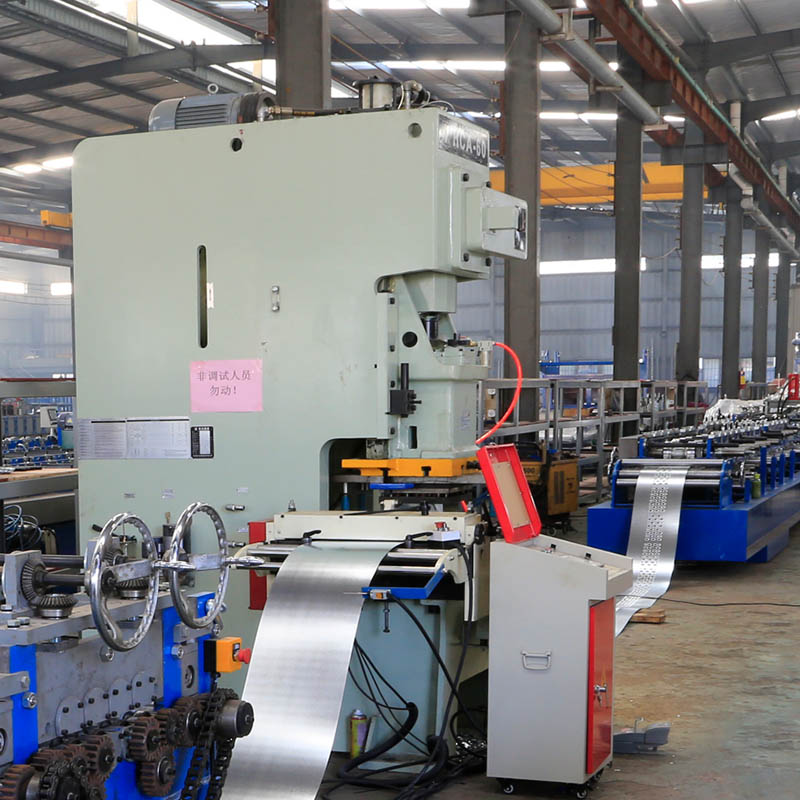

3) Serve-Drive& Punching Machine


63tons HIGH SPEED punching machine before roll forming, equip with Three sets of punching model.Punching machine four sides with safety cover and one side with open the door.By PLC system control.Material sending by the servo motor for punching more accuracy, servo motor power 3 KW.



scaffold plank roll forming machine



scaffold plank roll forming machine

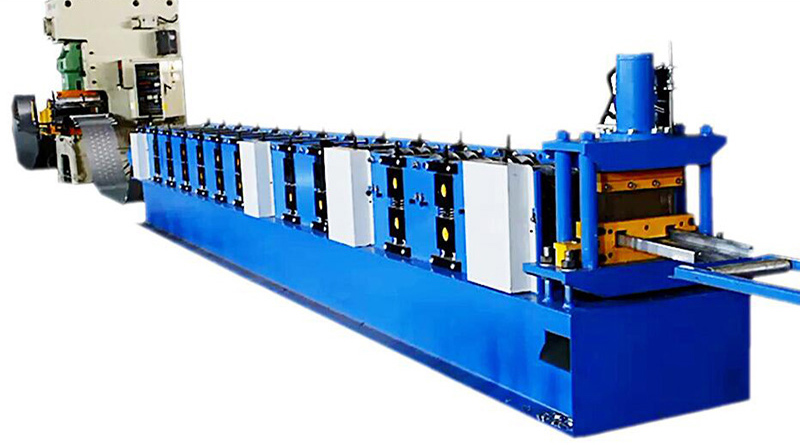

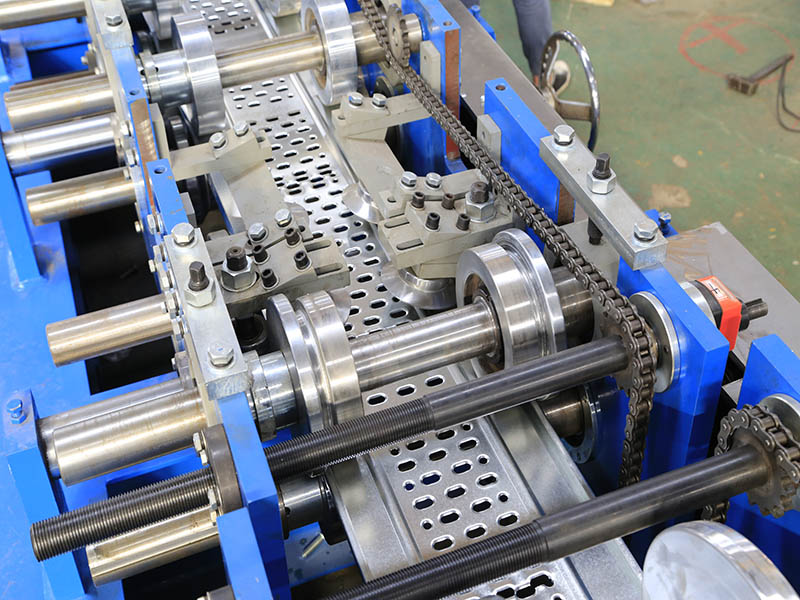

3) Main Machine


Body frame made from H450 type steel by welding.
Side wall thickness: Q235 t20mm.
Rollers manufactured from GCr15 Steel(=EN31 steel), precision machined,heat treatment,HRC58-62
Shafts manufactured from 45# steel,Diameter=φ75/95mm,precision machined,Quenching and tempering,Size-changing by spacer.
Gear/Sprocket driving, about 18-step to form.
Main Motor(Polaroid brand)=11KW , Frequency speed control.
Speed reducer motor:K series.
Production speed: 5-8m/min(including punching and cutting).





scaffold plank roll forming machine

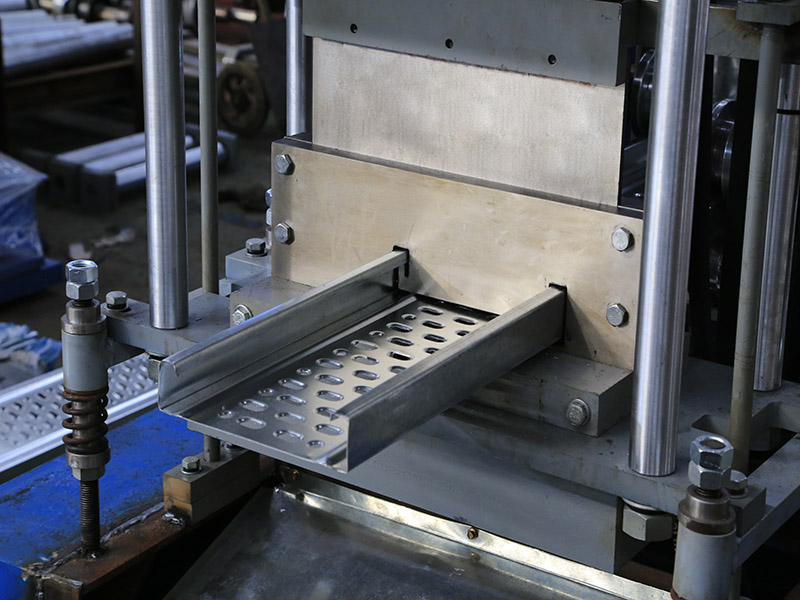

4) Hydraulic Post Cutter

Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking.
Hydraulic motor:5.5KW.
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the main engine hydraulic station.


scaffold plank roll forming machine




5) PLC Control System

Control The Quantity And Cutting Length Automatically.

Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


scaffold plank roll forming machine

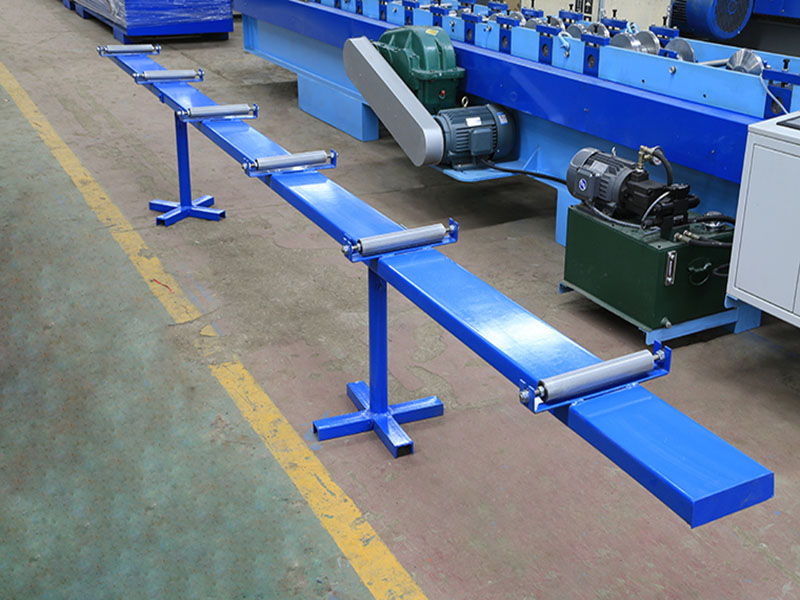

6)Exit Rack

Un-powered, one unit,with rollers on it for easy movement



scaffold plank roll forming machine

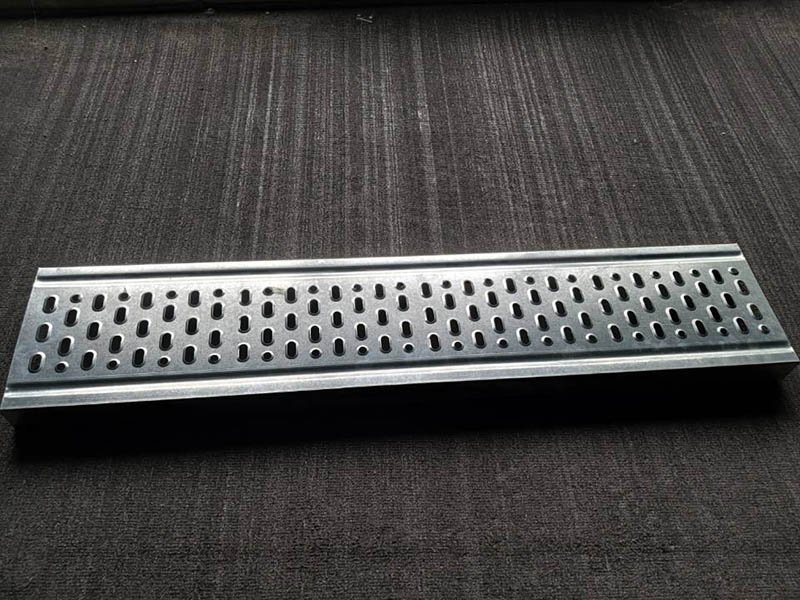

7)Product Show


scaffold plank roll forming machine




After-Sale Service


1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost



Terms Of Trade


1.Minimum order quantity (MOQ): 1 Set

2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc


Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
