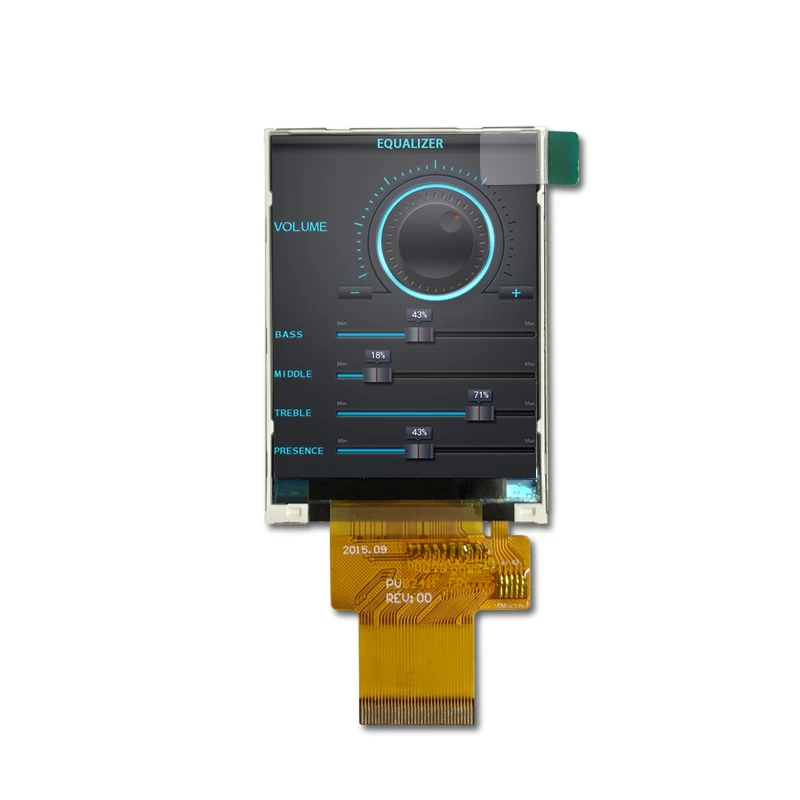

QVGA 240x320 resolution 2.4 inch IPS TFT LCD display with new ST7789V

QVGA 240x320 resolution 2.4 inch IPS TFT LCD display with new ST7789V


Facebook Twitter Pinterest LinkedIn 分享
Specification
LCD type 2.4 inch IPS tft display module
Display type 2.4" TFT, 262k color
Driver element a-si TFT Active matrix
Outline Dimension(mm) 42.72x59.46x2.30
A.A.(mm) 36.72x48.96
Driver IC ST7789V
Resolution(dots)_ 240*RGB*320
Viewing Direction All
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Operating Volatge 3.2v
Logic Voltage 1.8v-2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Brightness 300 nits
Weight(g) TBD
Interface MCU/SPI/
SPI+RGB
Module lifetime(Hours) 50,000-100,000
