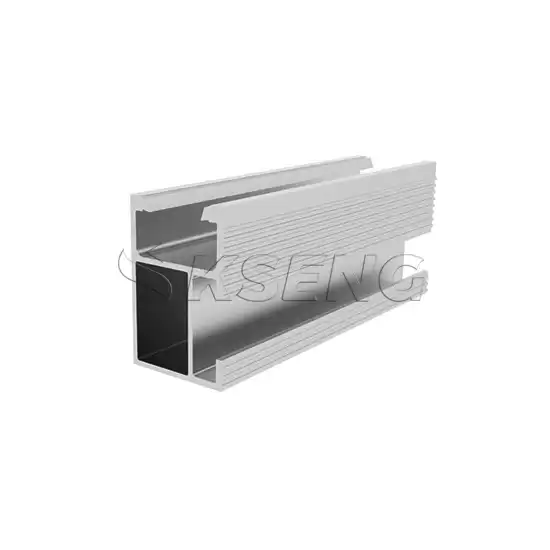

R040 Solar Roof Racking Rails

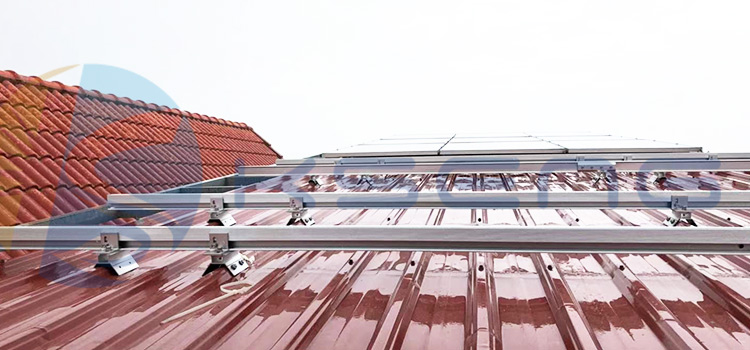

The solar aluminum rail can matchs with other solar component to install solar panel, such as 50*50mm L feet and RF0001 roof clamps(refer to the following case diagram). The solar rail aluminum profile length can be cutomized as your need.Silvery / black color aluminum alloy mounting rails for option.
L=2100mm
L=3200mm
L=3450mm
L=4200mm
L=5200mm
..................
Features:
1.Regular solar rail is widely used.
2.High corrosion resistance, salt tolerance.
3.Lightweight, easy transportation and installation, safe construction.
4.It is durable and recyclable.
5.It is high strength , steady and long time service life.
6.Compatible to various types of solar PV modules.
|
Product Name:
|
Solar Mounting Rail
|
|
Material:
|
Aluminum 6005-T5
|
|
Surface Treatment:
|
Anodized
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
Color:
|
Silver/Black
|
Application:
|
roof / flat ground
|
|
Certification:
|
ISO9001/CE/UL/SGS
|
|
Delivery:
|
7 Days after Payment Received
|
