Overview
|
Brand Name:
|
EMI
|
|
Model Number:
|
LXSD-15~25E
|
|
Type:
|
Single Jet
|
|
Keyword:
|
home water meter|small water meter
|
|
Standard:
|
ISO 4064 Class B
|
|
Material:
|
Brass
|
|
Size:
|
DN15-DN25
|
|
Function:
|
Totalizer , flow rate
|
|
Application:
|
Household/Resident
|
|
Feature:
|
Horizontal/Anti Magnetic
|
|
Water Type:
|
Cold
|
|
Product
name:
|

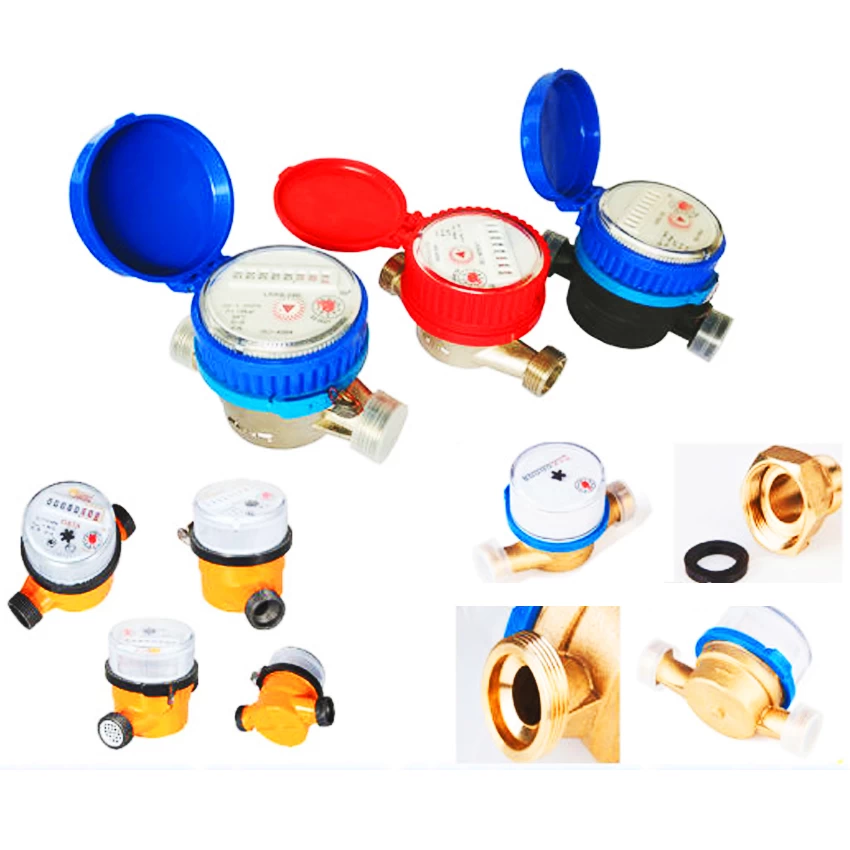

Single Jet Vane Wheel Dry Type Pulse Output Water Meter With
Reed Switch Option
|
|
Operating condition:
|
PN: 1.0(10bar)
|
|
The water temperature:
|
Cold water up to 40℃ and hot water up to 90℃
|
|
Standard:
|
ISO9001, ISO4064
|
|
Medium
Pressure:
|
General Water Meter
|
|
Medium
Temperature:
|
Cold(Hot) Water
|
|
Size:
|
DN13~DN25mm
|
|
Work
Environment:
|
Liquid Sealed Water Meter
|
|
Counter
Instructions :
|
Digital and Analogue
|
|
Application:
|
Measuring the volume of cold potable water passing through the
pipeline
|
|
Brand name:
|
EMI
|
|
Certificate:
|
ISO,SGS and the third party inspection
|
|
Delivery
detail:
|
within 20-30 days after receipt the 70% balance
|
|
Packing:
|
Carton, pallet and as per customer's requirement.
|
Supply Ability
|
Supply Ability:
|
10000
Piece/Pieces per Month home water meter
|
Packaging & Delivery
|
Packaging Details
|
wooden
crates or as per customers' requirements
|
|
Port
|
Shanghai Port,China
|
|
Lead
Time :
|
Shipped in 25 days after payment
|
Main
Features
Single jet, dry dial;
Optimum accuracy and performance at all times;
Accurate measurement
Single-Jet meter Class “B”,
Magnetic transmission;
Excellent wear resistance and good performance at low flow rates;
Performance at or above the required ISO 4064; Register super dry IP68;
Register versions: Copper+Glass, Plastic. Optional
Maximum registration 99.999m³;
Customer logo in register;
Pulse Enable reed switch K=10L / 1P
Liquid sealed register,small and light,easy reading, etc.
its sensitivity is high, starting flow can reach 5L/h
Working condition:
temperature:≤40℃
Pressure:≤1Mpa
Maximum Permissible Error:
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.
