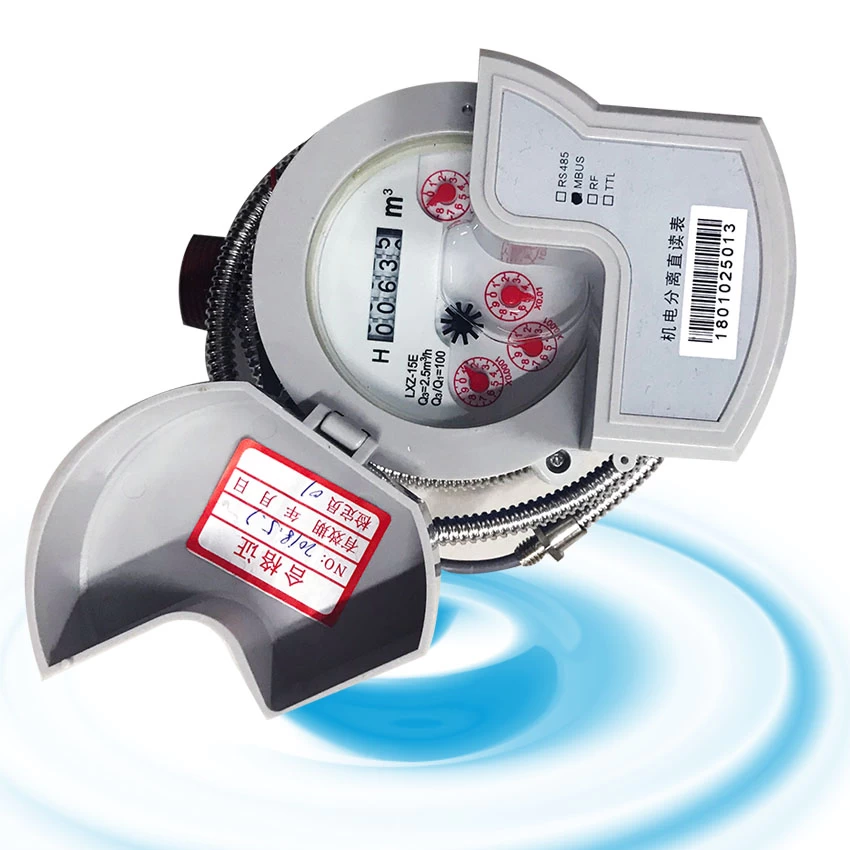

R80，100 Electromechanical Synchronous Photoelectric Direct Reading Water Meter
The electro-mechanical separation wire direct reading meter does not change the water meter structure and does not affect the precision and sensitivity of the traditional wet water meter. After the calibration period of the meter only needs to change the water meter base meter. Using Decimal Decoder technology, the mechanical position data of code disk can be read more accurately, photoelectric reading wheel position data, there is no wheel 0 and 9 carry problem, there is no critical state, read accuracy rate of 100%, You can choose wired or wireless mode to achieve remote transmission function. The electronic components are installed in an independent fully sealed chamber with waterproof properties up to the ip68 level, no interference of light, and extremely simple production process, which is more suitable for large-scale and standardized production.
Name: electronic reading water meter
Material: brass
Type name: Photoelectric direct reading remote reading water meter
Certificate: ISO4064 ISO9001:2008
warranty: 1 year
Installation: Horizontal
Water temperature: ≤30℃
Working pressure: ≤1MPa
Diameter Size: 15mm~32mm
An electromechanical direct-reading photoelectric water meter has an exploded design and the basic gauge and electronic dispenser are completely separated. The electronic dosing unit is located in a separate, fully sealed chamber with excellent water resistance. The basic water meter is a traditional wet water meter structure that has high measurement accuracy and high sensitivity. After a period of use, the motherboard can be replaced, so installation and maintenance are simple and convenient.
Product Features:
Apply design of split structures, which facilitates installation and maintenance; and after the water meter maintenance period has elapsed, only the basic unit needs to be replaced;
Without a built-in battery, there is no need to add electricity at all times.
advanced encoding and data verification technology to ensure high communication reliability;
Accept the wet rotorary wheel type meter and maintain high accuracy of measurement and sensitivity
Meet standards in an electronic water meter for remote reading (CJ / T 224-2012);
Meet the standards according to technical requirements for the transmission of utility meters data (CJ / T 188-2004);
Meet Standards in Reading Systems for Housing Transmissions (JG / T 162-2009);
Compatible with a range of communication protocols: internal, DL / T645, CJ / T188, MBUS or customer-specific protocol;
Meet the design requirements EMI and other electronic products for electromagnetic compatibility, and reach industry-leading level;
Program update online;
Combination with host computer system and introduction of remote automatic meter reading control system, actual implementation of automation of reading and monitoring of the meter.
Main Tech. Parameters：
