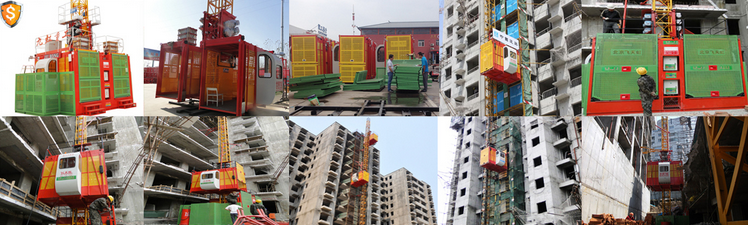

Rack and Pinion Construction Lifting Hoist for Material and Passengers
1.Double cages, single cages
2. rack and pinion construction hoist
2.Construction lifting hoist for material and passengers
3.Max Lifting Height:200m
SC series construction hoists are with very good quality and finishing to our global customers, the capacity of cage ranges from 1000kg,1200kg, 2000kg,2700kg,up to 3200kg, and controlled by direct motor driven and frequency conversion driven , to reach the lower speed of 36 m/min, middle speed 0-63m/min and high speed 0-96m/min. And also provide the different dimension of cage to satisfy the special demand from the customers.
| Elevator classification |
Cage |
Model |
Rated load capacity(kg) |
Lifting speed(m/min) |
Moter power(kw) |
Dimension inside cage(L*W*H)(m)
|
| Normal frequency construction elevator |
single cage |
SCD200 |
2000 |
33 |
2*11 |
3.0*1.3*2.4
(3.2*1.5*2.4)
|
| SC200 |
2000 |
33 |
3*11 |
| double cage |
SCD200/200 |
2*2000 |
33 |
(2*2) *11 |
| SC200/200 |
2*2000 |
33 |
(2*3)*11 |
| SS100/100 |
2*1000 |
24 |
2*7.5 |
| Frequency construction elevator |
Single cage |
SCD200 |
2000 |
0-63 |
3*15 |
| SC200 |
2000 |
0-63 |
3*15 |
| Double cage |
SCD200/200 |
2*2000 |
0-63 |
(2*3)*15 |
| SC200/200 |
2*2000 |
0-63 |
(2*3)315
|
Commercial Terms
MOQ: 1set
Tradeterms: FOB (Qingdao) or as per your request
Theabroad market: MiddleEast, South Asia, Africa, Russia, etc.
Deliverytime: 10-15 days after receiving 30% advanced payment
Termsof Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Package:nude in 1*40"HQ containers for basic height (50m)
Warranty:12 months
Our Service
----timely delivery, in time shipping notice
----1 year warranty of products quality and full set ofspare parts
----training installation, guidance of operation and maintenance
----engineers have rich experience, can solveall your problems
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
Looking forward your kindly inquiry and hope to help your strong business in near future!
