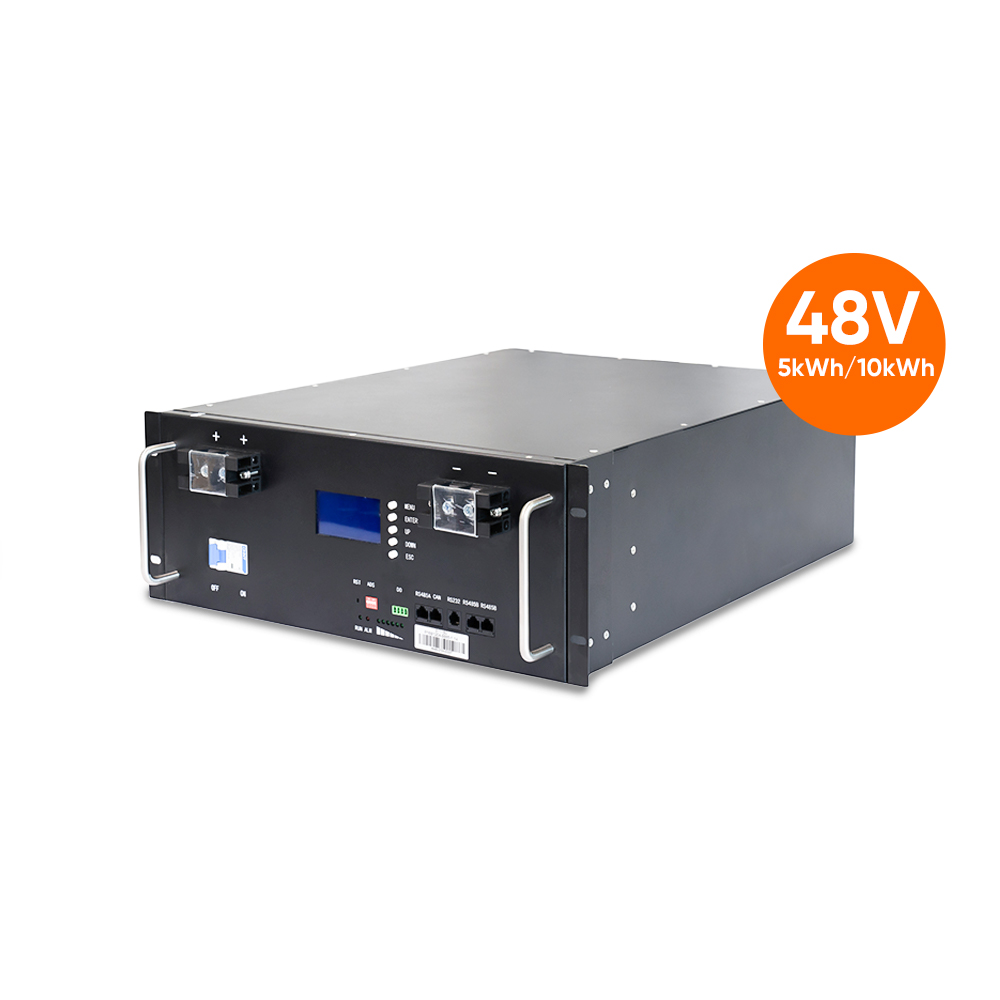

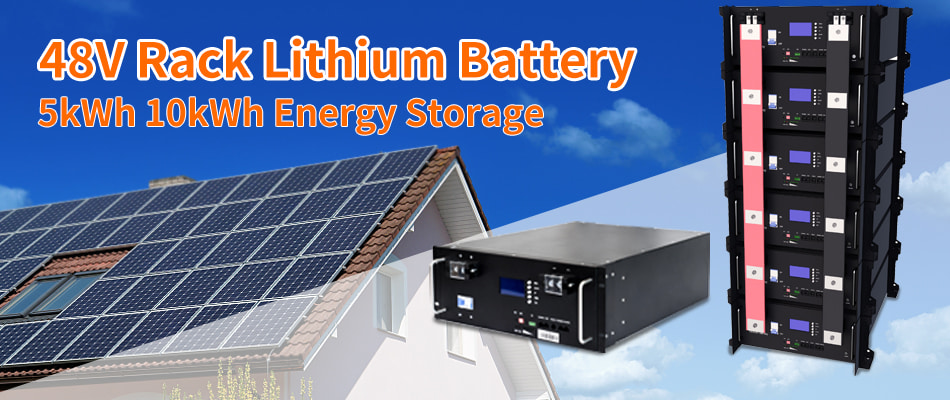

Rack design Li-ion battery 48V 51.2V 100Ah 200Ah Lifepo4 Solar Storage Battery

A Lithium-ion or Li-ion battery is a is a type of rechargeable battery which uses the reversible reduction of lithium ions to store energy.

Lithium-ion is a low maintenance battery, which are commonly used for energy storage system off-grid and hybrid battery system.

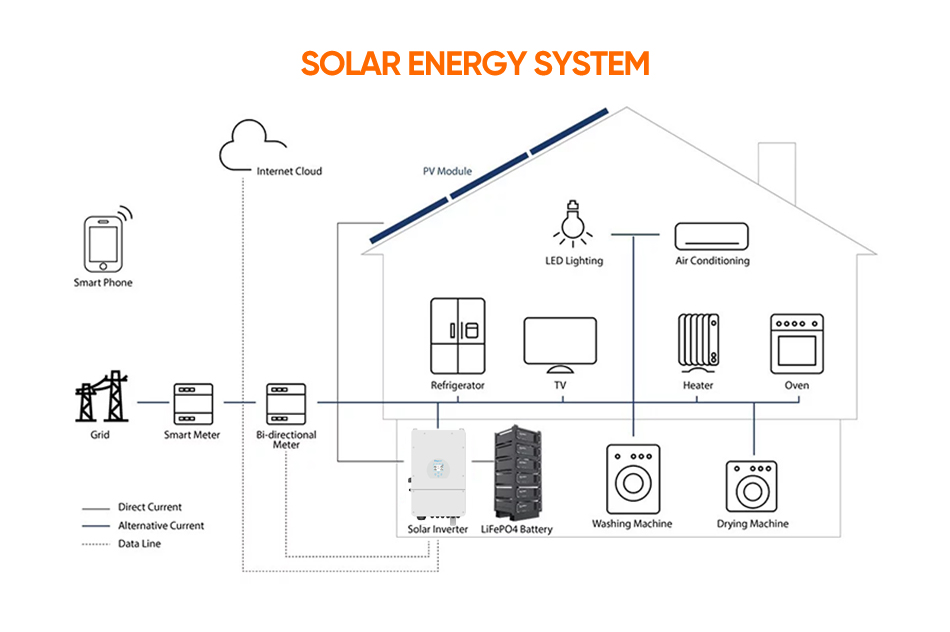

For home use lithium battery most popular model are 48V 51.2V, main capacity 5kwh or 10kwh for each single module.



United Energy founded in 2009, National high-tech enterprise,focus on solar panel and solar system R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!



United Energy has strategic cooperation with many battery manufacturers Sony, Panasonic, LG, Samsung and the largest domestic automotive battery manufacturers like CATL, CALB, BYD etc. Focusing on independent R&D of low-voltage and high-voltage energy storage products more suitable for household lithium iron phosphate lifepo4 solar storage battery bank , as well as industrial and commercial use.



Battery Specification:

Model UE-R-5kWh UE-R-10kWh
Nominal Voltage 48V
Rated Capacity 100AH 200AH

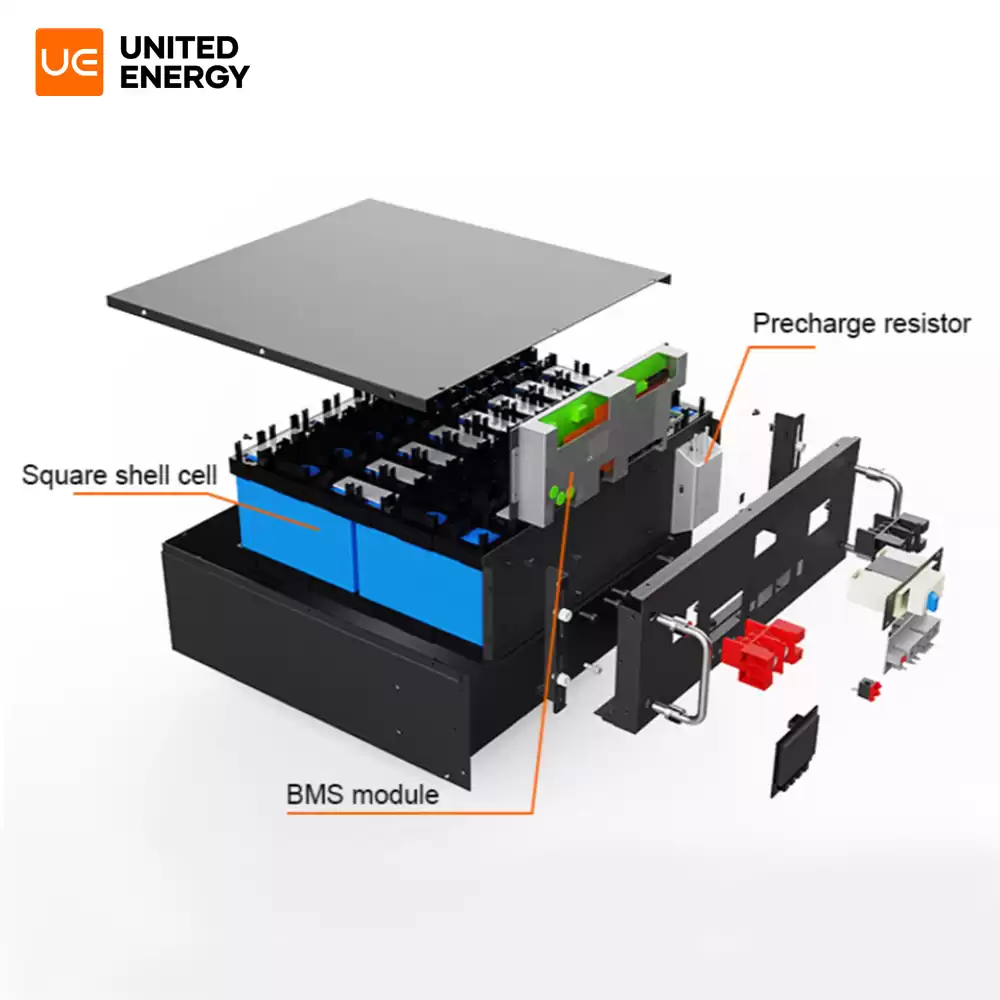

Battery Cell 3.2V 100Ah Prismatic Battery Cell
Parallel Capacity Yes,15units maximum
Max Charging Current 100A
Max Discharging current 100A
Charging Voltage 54V
Discharge Cut-off Voltage 41V
Design Life 15+ Years(25°C/77°F)
Cycle Life >6000 Cycles,25°C

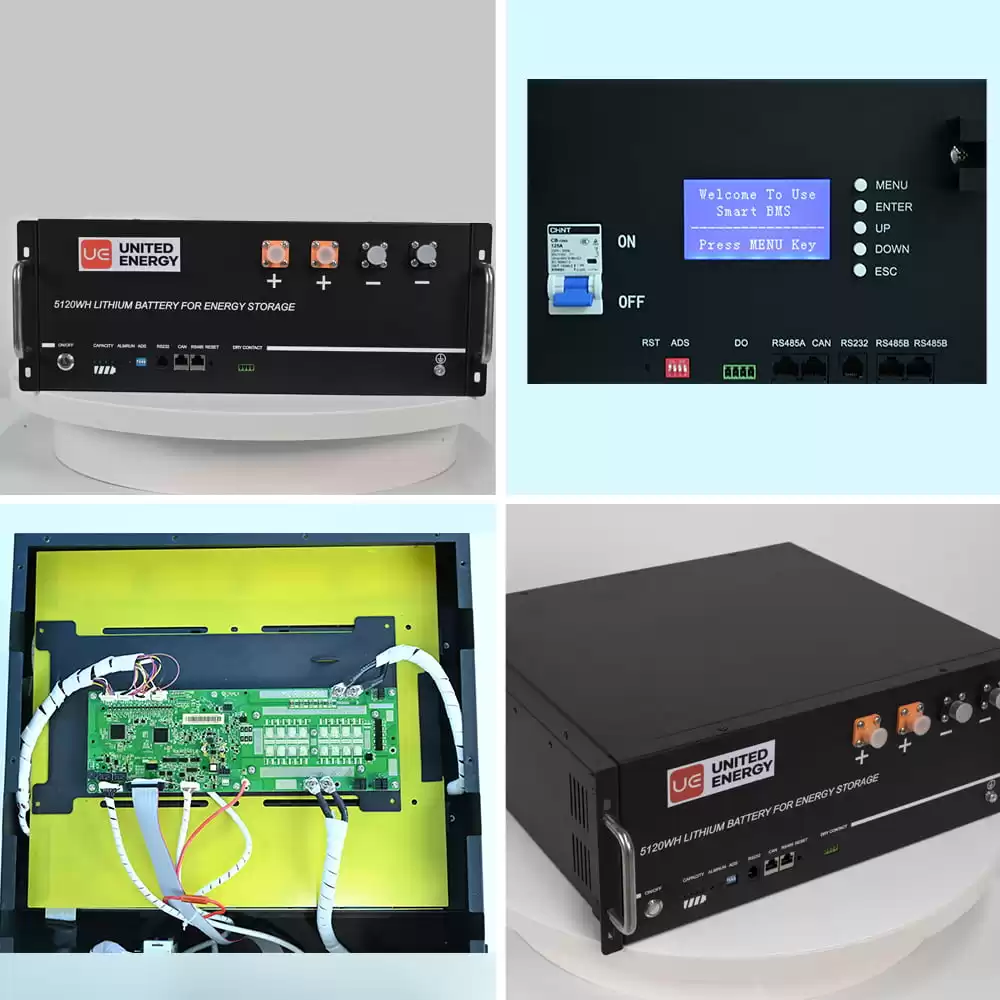

Communication Port CAN,RS485,RS232
Size(L*W*H) 460*442*180mm 680*442*180mm
Weight 46Kg±1Kg 85Kg±1Kg
Operation Temperature Range Charge:0~55℃/Discharge: -20~55℃
Certification IEC/CE/UN38.3





Product Advantage:

1,  International Certifications,  guarantee quality;

2,  High Safety: Overvoltage protection; Overcurrent protection; Temperature protection;Short-circuit protection;

3,  Higher stability:non-toxic, non-polluting, no rare earth metals, no explosion, no fire.

4,  Long service life:15+ years designed lifespan, up to 6000 cycles.



Advantage comparing with Lead Acid Battery?

Compared to lead-acid and lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power.

LiFePO4 batteries often come with a higher price tag, but a much better cost over the life of the product. No maintenance and super long life make them a worthwhile investment and a smart long-term solution.

Partners:

Our Sales Engineer is 7/24 Online, welcome your Inquiry to get further details:

Karen

Mobile/Wechat/Whatsapp:  +86 132 7579 2676

Email:  info@ue-pv.com
