Product Description
48V/51.2V 100Ah Household Solar Energy Storage Battery, works as a building block for home energy storage system with reliable and accurate battery management system.Together with storage inverter, the system can realize the functions below:
Electricity Bills Reduction:
Charge the battery during off-peak period and discharge the battery during peak period |
Self-Consumption:
Store excess energy generated by solar panels and use it whenever needed |
Back-up Power Supply:
Provide the power during grid blackouts. |
Smart Energy Management:
Real-time monitoring and managing. You can know how much energy generated and consumed in real-time. |
KEY Features
♦ Scalable to 200kWh
♦ Long Cycle Life, >6000 Cycles (80% DOD)
♦ Modular Design, Easy Installation
♦ Maintenance free, Easy Replacement
♦ Self Developed BMS, 10 Years Tested. Accurate & Stable
♦ Compatible with mainstream ESS inverterss
♦ 10 Years Global Warranty
♦Compatible with mainstream inverters such as Growatt, Goodwe, DEYE, SRNE, Luxpower, Megarevo, etc.

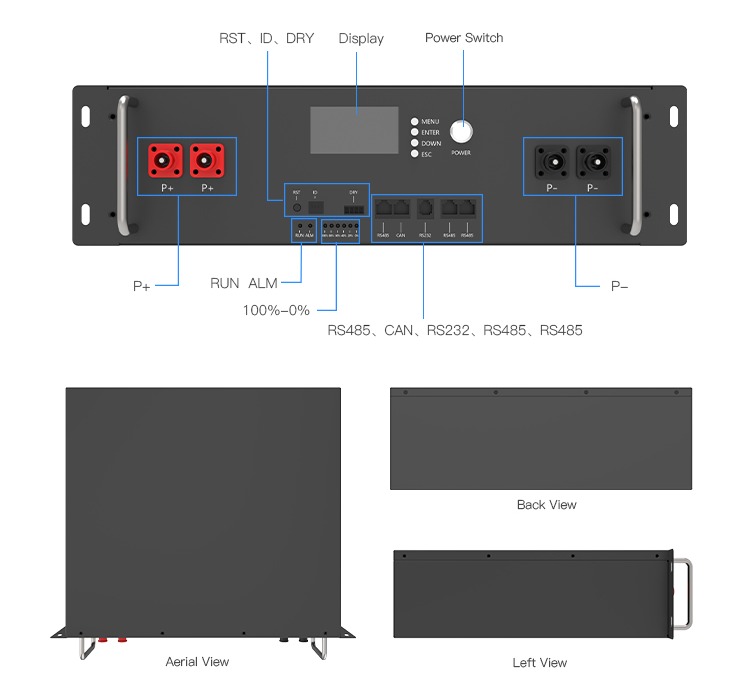

Detailed Function display

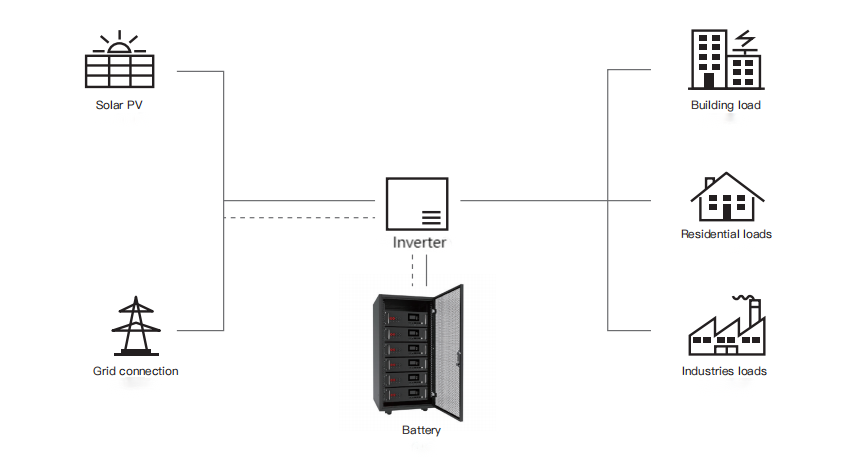

System Schematic
Technical Parameter
| ZL-GS5000W |
| Basic Parameter |
| Rated Voltage（V） |
51.2 |
| Rated Capacity（Ah） |
100 |
| Rated Energy（Wh） |
5120 |
| Operation Parameter |
| Charge Voltage Range（V） |
44.8-56 |
| Charge Voltage Range（V） |
55.2-56 |
| Cut-off Voltage（V） |
44.8 |
| Recommend Charge Current（A） |
50 |
| Max Charge Current（A） |
100 |
| Max Discharge Current（A） |
100 |
| Physical Parameter |
| Dimension：L*W*H（mm） |
470*452*160 |
| Weight（kg） |
46 |
| Communication Port |
RS485、CAN |
| Display |
LED+LCD |
| Terminal |
Plug-in |
| Compatible Inverter |
Growatt,Goodwe,Sol-Ark,SRNE,DEYE |
| Environment Parameter |
| Humidity（%） |
5-95%RH |
| Charge Temperature Range（℃） |
0-45 |
| Discharge Temperature Range（℃） |
-80 |
| Storage Temperature Range（℃） |
-65 |
| Cycle Life |
| Cycle Life |
＞6000（0.5C@25℃，80%DOD） |
| Certification |
| Safety&Certification |
CE，EMC，TUV（IEC62619），UL1973 |
| Transportation |
UN38.3 |

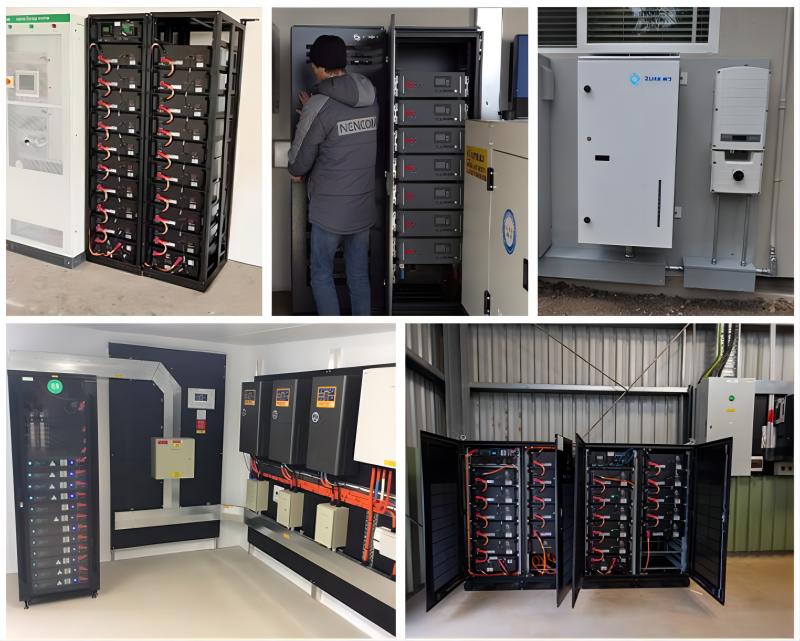

Application Scenarios
1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications
FAQ
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
