RACOR Fuel Water Separator Assembly 1000FG 1000FH
Fuel Water Separator Assembly 1000FG Parameter：
|
Part Number
|
1000FG, 1000FH
|
|
Parts Name
|
Fuel Water Separator Assembly
|
|
Brand
|
RACOR
|
Fuel Water Separator Assembly 1000FG Specifications:
|
Basic Models
|
1000FG
|
|
Maximum Flow Rate:
(one unit online)
(two units online)
(three units online)
|
180 GPH (681 LPH)
N/A
N/A
|
|
Port Size
|
7/8”- 14 UNF (SAE J1926)
|
|
Min. Service Clearance
(above assembly)
(below assembly)
|
10.0 in. (25.4 cm)
2.0 in. (5.1 cm)
|
|
Replacement Element:
(2 micron)
(10 micron)
(30 micron)
|
(1 Per Assembly)
2020SM- OR
2020TM- OR
2020PM- OR
|
|
Height
|
22.0 in. (55.9 cm)
|
|
Depth
|
7.0 in. (17.8 cm)
|
|
Width
|
6.0 in. (15.2 cm)
|
|
Weight (dry)
|
10.0 lb (4.5 kg)
|
|
Clean Pressure Drop
|
0.43 PSI (3.0 kPa)
|
|
Maximum Pressure1
|
15 PSI (1 bar)
|
|
Water In Bowl Capacity
(per bowl)
|
10.3 oz (305 ml)
|
|
Available Options:2
(water detection kit)
(12 or 24 vdc heater)
(vacuum gauge)
|
Yes
Yes
Yes
|
|
Operating Temperature
|
--40oto +255oF /-40oto +121oC
|

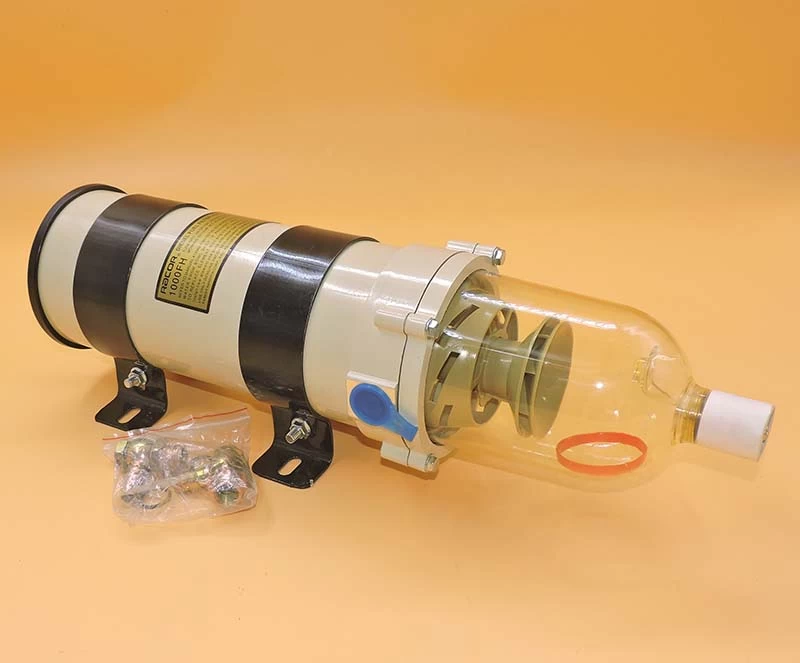

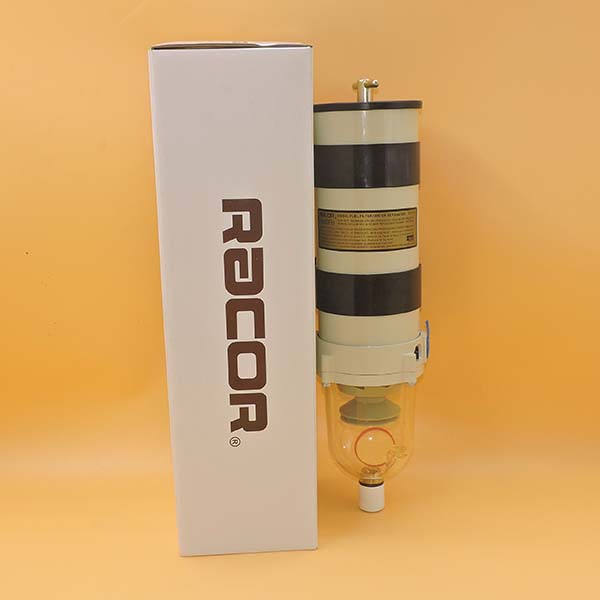

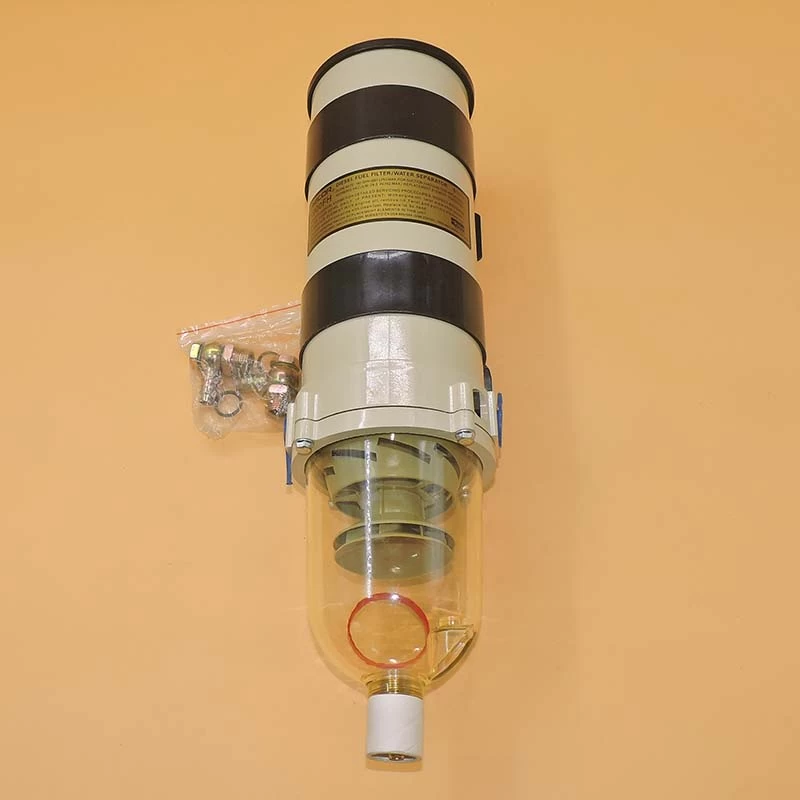

Fuel Water Separator Assembly 1000FG Picture:
