RACOR Fuel Water Separator Assembly 731000FH
Fuel Water Separator Assembly 731000FH Parameter：
|
Part Number
|
731000FH
|
|
Parts Name
|
Fuel Water Separator Assembly
|
|
Brand
|
RACOR
|
Fuel Water Separator Assembly 731000FH Specifications:
|
Basic Models
|
731000FH
|
|
Maximum Flow Rate:
(one unit online)
|
360 GPH (1363 LPH)
|
|
Port Size
|
3/4”- 14 UNF (SAE J476)
|
|
Min. Service Clearance
(above assembly)
(below assembly)
|
10.0 in. (25.4 cm)
2.0 in. (5.1 cm)
|
|
Replacement Element:
(2 micron)
(10 micron)
(30 micron)
|
(2 Per Assembly)
2020SM- OR
2020TM- OR
2020PM- OR
|
|
Height
|
22.0 in. (55.9 cm)
|
|
Depth
|
12.0 in. (30.5 cm)
|
|
Width
|
16.5 in. (41.9 cm)
|
|
Weight (dry)
|
26.0 lb (11.8 kg)
|
|
Clean Pressure Drop
|
1.7 PSI (11.7 kPa)
|
|
Maximum Pressure1
|
15 PSI (1 bar)
|
|
Water In Bowl Capacity
(per bowl)
|
10.3 oz (305 ml)
|
|
Available Options:2
(water detection kit)
(12 or 24 vdc heater)
(vacuum gauge)
|
Yes
Yes
Yes
|
|
Operating Temperature
|
--40oto +255oF /-40oto +121oC
|

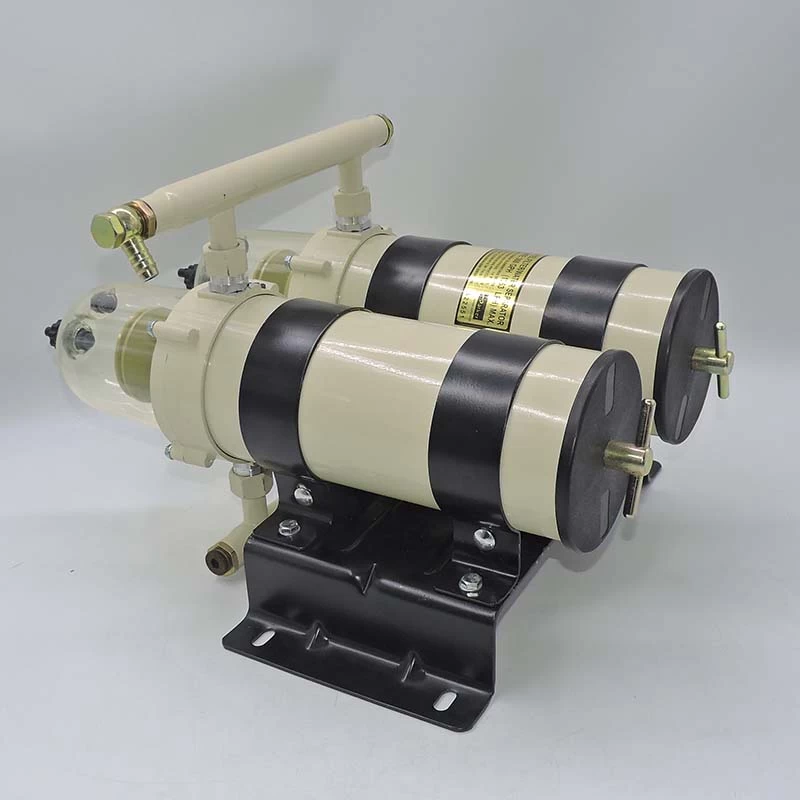

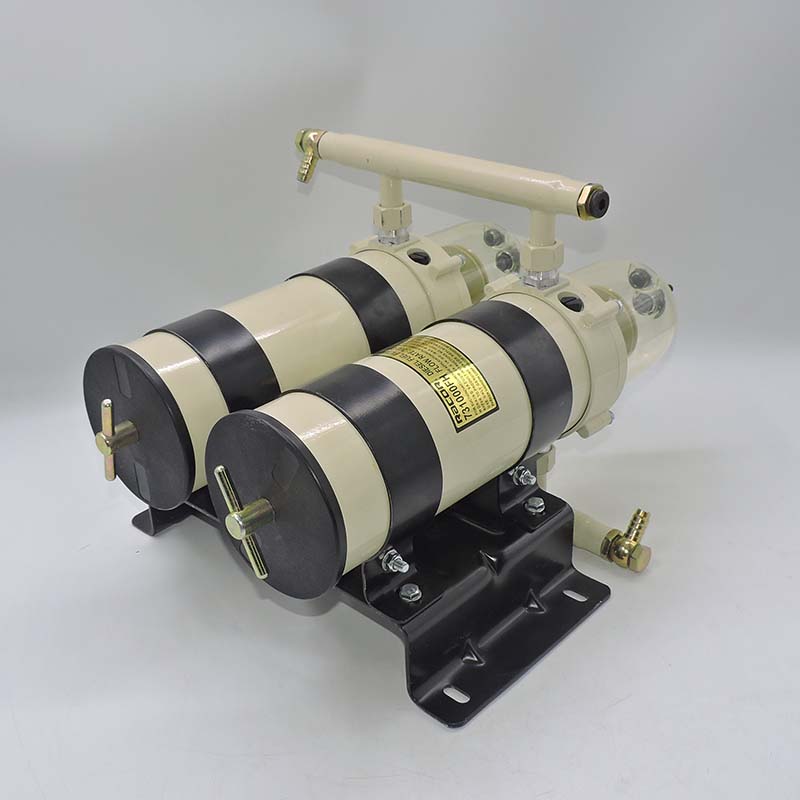

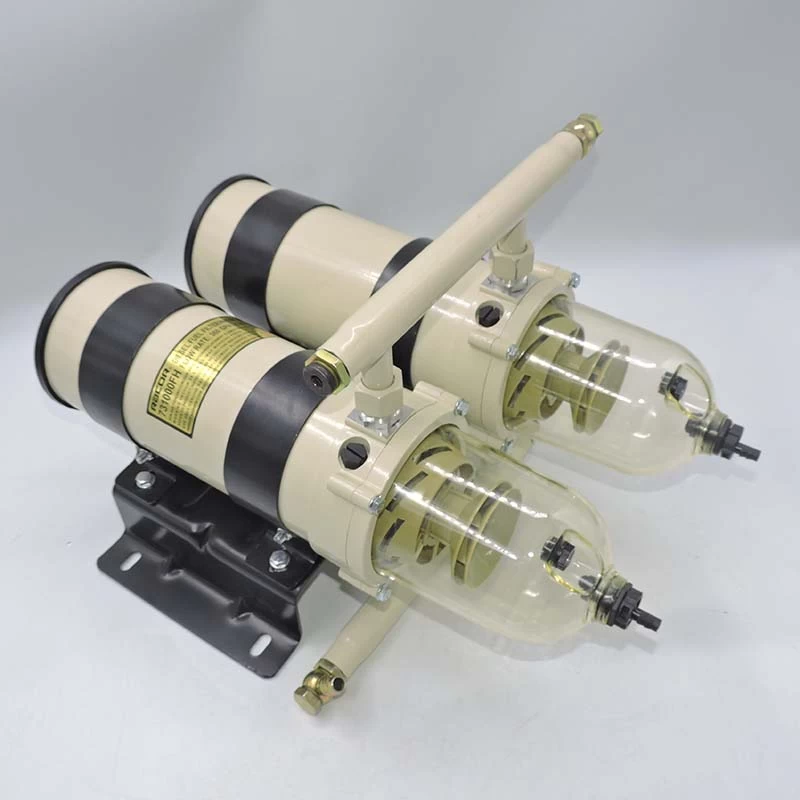

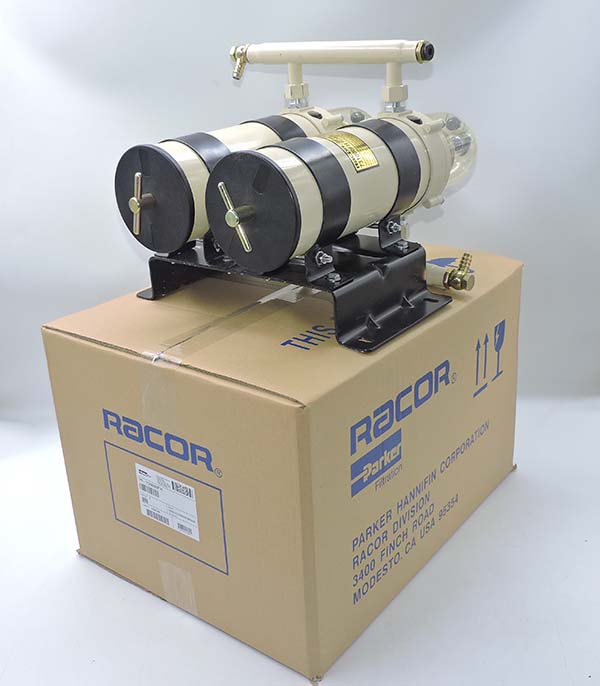

Fuel Water Separator Assembly 731000FH Picture:
