RACOR Fuel Water Separator Assembly 900FG 900FH
Fuel Water Separator Assembly 900FG Parameter：
|
Part Number
|
900FG, 900FH
|
|
Parts Name
|
Fuel Water Separator Assembly
|
|
Brand
|
RACOR
|
Fuel Water Separator Assembly 900FG Specifications:
|
Basic Models
|
900FG
|
|
Maximum Flow Rate:
(one unit online)
(two units online)
(three units online)
|
90 GPH (341 LPH)
N/A
N/A
|
|
Port Size
|
7/8”- 14 UNF (SAE J1926)
|
|
Min. Service Clearance
(above assembly)
(below assembly)
|
7.5 in. (19.1 cm)
2.0 in. (5.1 cm)
|
|
Replacement Element:
(2 micron)
(10 micron)
(30 micron)
|
(1 Per Assembly)
2040SM- OR
2040TM- OR
2040PM- OR
|
|
Height
|
17.0 in. (43.2 cm)
|
|
Depth
|
7.0 in. (17.8 cm)
|
|
Width
|
6.0 in. (15.2 cm)
|
|
Weight (dry)
|
6.0 lb (1.8 kg)
|
|
Clean Pressure Drop
|
0.3 PSI (2.1 kPa)
|
|
Maximum Pressure1
|
15 PSI (1 bar)
|
|
Water In Bowl Capacity
(per bowl)
|
10.3 oz (305 ml)
|
|
Available Options:2
(water detection kit)
(12 or 24 vdc heater)
(vacuum gauge)
|
Yes
Yes
Yes
|
|
Operating Temperature
|
--40oto +255oF /-40oto +121oC
|

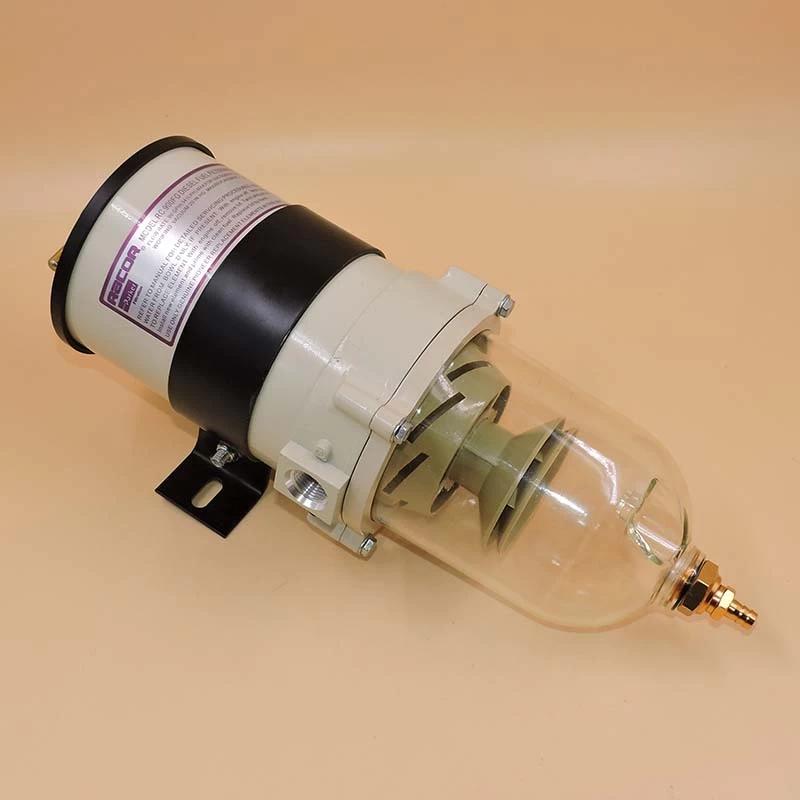

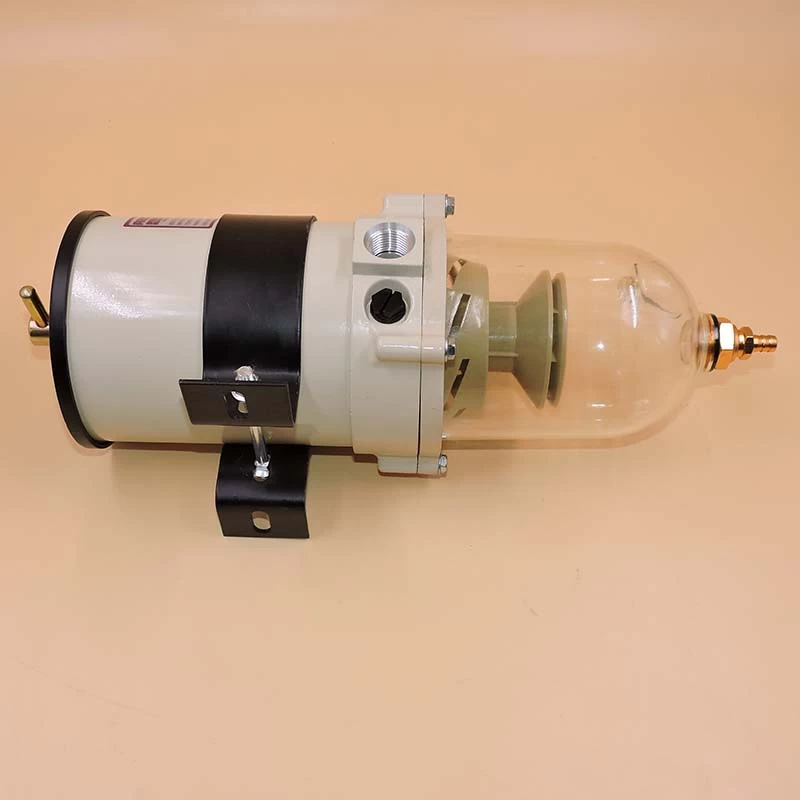

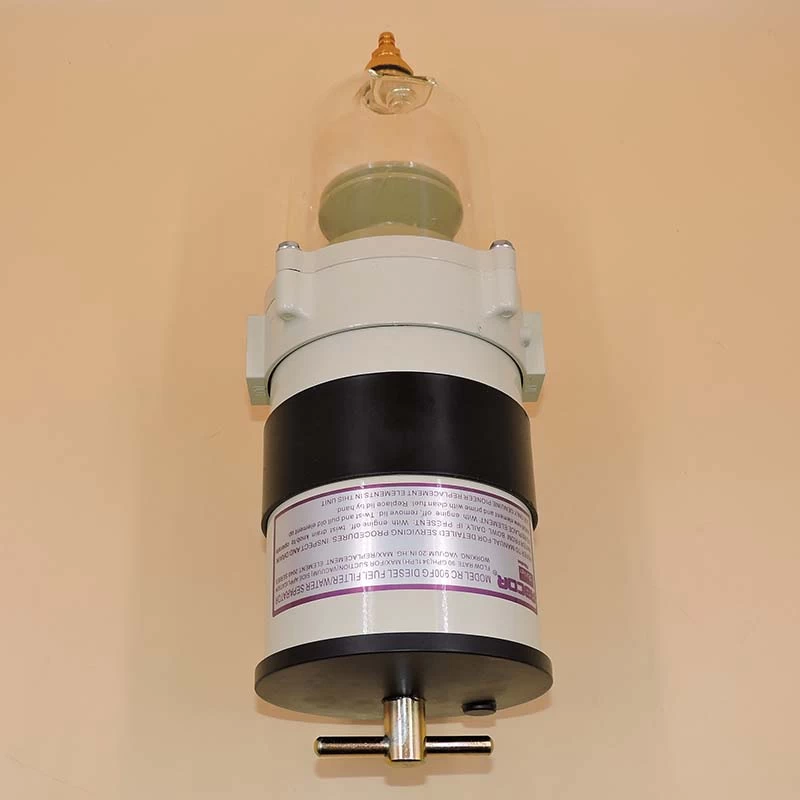

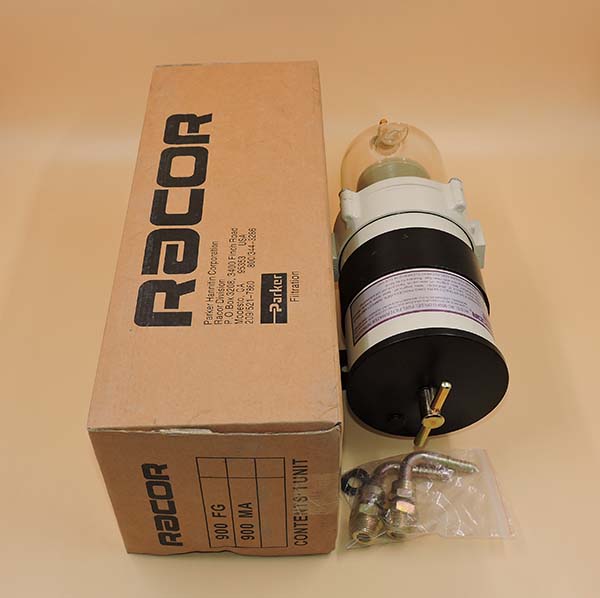

Fuel Water Separator Assembly 900FG Picture:
