Bearing GRAE25-NPP-B Specification:
|
Parameters
|
|
Weight , W
|
kg
|
0.18
|
|
Inner diameter
, d
|
mm
|
25
|
|
Outer diameter
, D
|
mm
|
52
|
|
Total width ,
T
|
mm
|
31
|
|
Cage width , C
|
mm
|
15
|
|
Thread , M
|
|
M6
|
|
Shield type
|
|
Bilateral
|
|
Shield
material
|
|
Metal
|
|
Spherical
outer ring
|
|
Yes
|
|
Shaft mounting
type
|
|
Cylindrical
|
|
Bearing
mounting method
|
|
Eccentric locking collar
|
|
Inner cage
width in mm , B
|
mm
|
21.4
|

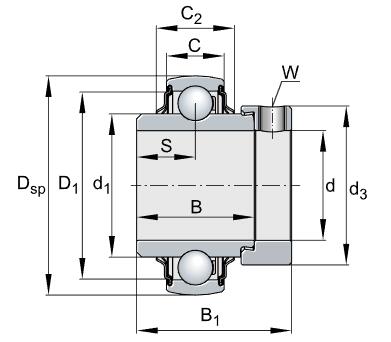

Bearing Dimension:

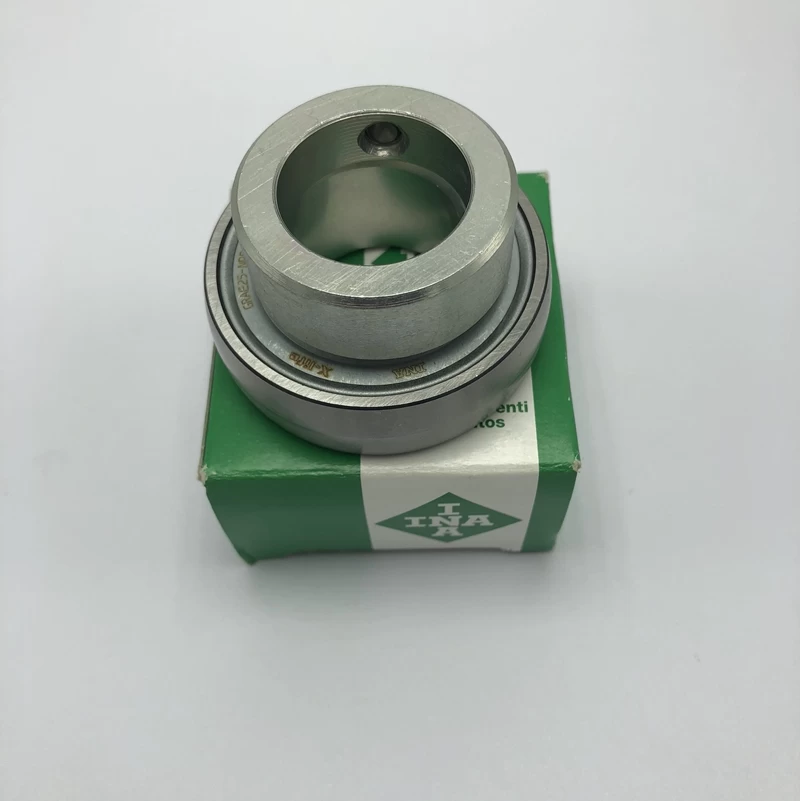

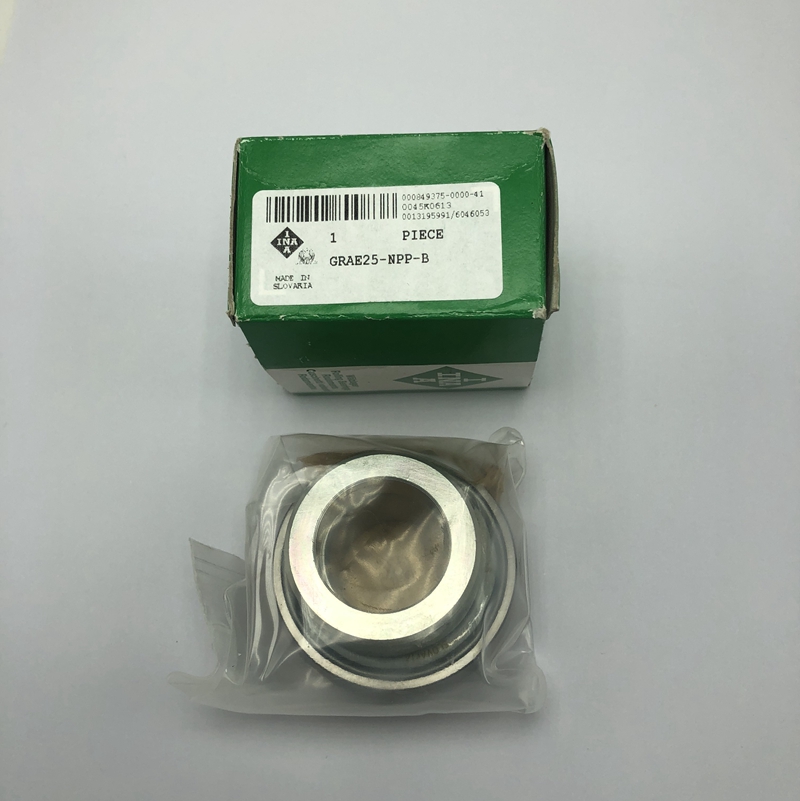

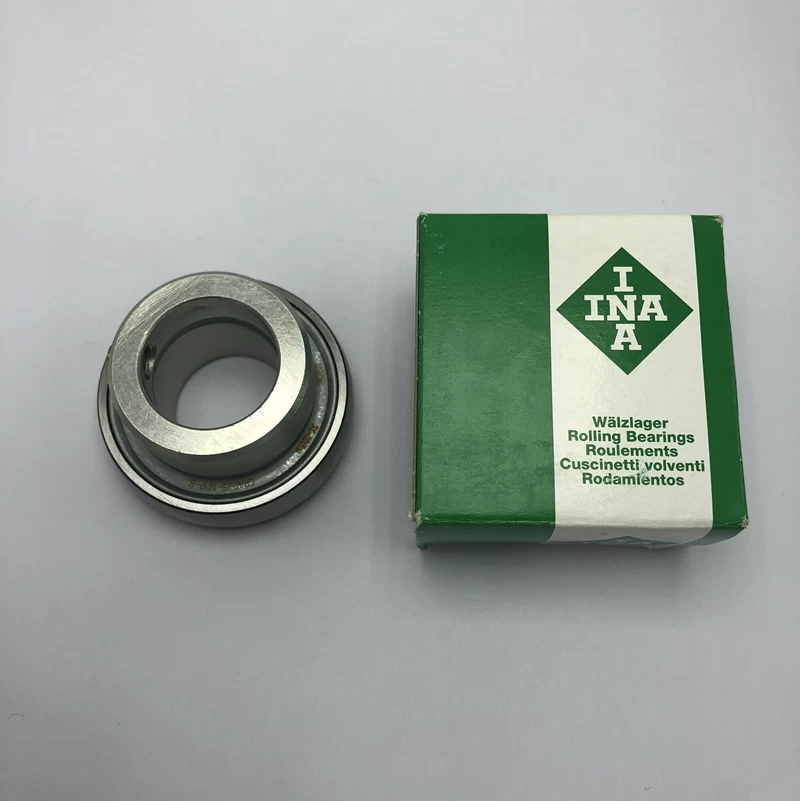

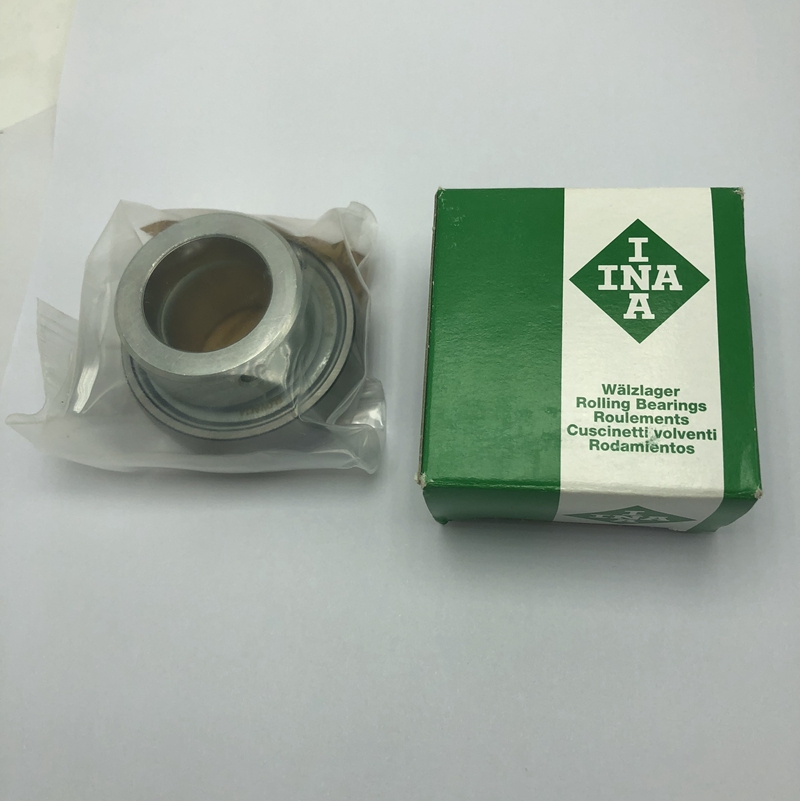

Bearings GRAE25-NPP-B Picture :
Design:
GRAE25-NPP-B ball bearing consists of two cages (internal and external) and rolling elements (balls), connected with a separator.
Application:
INA GRAE25-NPP-B bearing can be used for passing a radial load (along the radius) in harvester combines rotating shafts.
INA Bearing Features:
Spherical outer ring;
Two seals on both sides;
The eccentric locking collar for mounting.
Other INA Bearings Number For Your Reference :
|
Bearing Series
|
For
shaft diameter in mm
|
Features
|
|
GRAE..-NPP-B
|
12-60mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RAE..-NPP-B
|
12-50mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RALE..-NPP-B
|
20-30mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RA..-NPP-B
|
5/8''-1 1/2''
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides,inch size bore
|
|
GE..-KRR-B
|
17-120
|
Spherical outer ring,location by
eccentric locking collar ,R seals on both sides
|
INA Radial Insert Ball Bearings GRAE..-NPP-B Series:
spherical outer ring,location by eccentric locking collar,P seals on both sides
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
GRAE-12-NPPB
|
12
|
40
|
28.6
|
|
GRAE-15-NPPB
|
15
|
40
|
28.6
|
|
GRAE-17-NPPB
|
17
|
40
|
28.6
|
|
GRAE-20-NPPB
|
20
|
47
|
31
|
|
GRAE-25-NPPB
|
25
|
52
|
31
|
|
GRAE-30-NPPB
|
30
|
62
|
35.8
|
|
GRAE-35-NPPB
|
35
|
72
|
39
|
|
GRAE-40-NPPB
|
40
|
80
|
43.8
|
|
GRAE-45-NPPB
|
45
|
85
|
43.8
|
|
GRAE-50-NPPB
|
50
|
90
|
43.8
|
|
GRAE-55-NPPB
|
55
|
100
|
48.4
|
|
GRAE-60-NPPB
|
60
|
110
|
53.1
|
RAE..-NPP-B Bearing Series:
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
RAE12-NPP-B
|
12
|
40
|
28.6
|
|
RAE15-NPP-B
|
15
|
40
|
28.6
|
|
RAE17-NPP-B
|
17
|
40
|
28.8
|
|
RAE20-NPP-B
|
20
|
47
|
31
|
|
RAE25-NPP-B
|
25
|
52
|
31
|
|
RAE30-NPP-B
|
30
|
62
|
35.8
|
|
RAE35-NPP-B
|
35
|
72
|
39
|
|
RAE40-NPP-B
|
40
|
80
|
43.8
|
|
RAE50-NPP-B
|
50
|
90
|
43.8
|
RALE..-NPP-B Bearing :
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
RALE20-NPP-B
|
20
|
42
|
24.5
|
|
RALE25-NPP-B
|
25
|
47
|
25.5
|
|
RALE30-NPP-B
|
30
|
55
|
26.5
|
RA..-NPP-B Series Bearing :
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
RA100-NPP-B
|
25.4
|
52
|
31
|
|
RA104--206-NPP-B
|
31.75
|
62
|
35.8
|
|
RA104-NPP-B
|
31.75
|
72
|
39
|
|
RA108-NPP-B
|
38.1
|
80
|
43.8
|
Radial insert ball bearings GE..-KRR-B
spherical outer ring,location by eccentric locking collar,R seals on both sides
|
Bearings
No.
|
d(mm)
|
DSP(mm)
|
B1(mm)
|
|
GE17-KRR-B
|
17
|
40
|
37.4
|
|
GE20-KRR-B
|
20
|
47
|
43.7
|
|
GE25-KRR-B
|
25
|
52
|
44.5
|
|
GE30-KRR-B
|
30
|
62
|
48.5
|
|
GE35-KRR-B
|
35
|
72
|
51.3
|
|
GE40-KRR-B
|
40
|
80
|
56.5
|
|
GE45-KRR-B
|
45
|
85
|
56.5
|
|
GE50-KRR-B
|
50
|
90
|
62.8
|
|
GE55-KRR-B
|
55
|
100
|
71.4
|
|
GE60-KRR-B
|
60
|
110
|
77.9
|
|
GE65-214-KRR-B
|
65
|
125
|
66
|
|
GE70-KRR-B
|
70
|
125
|
66
|
|
GE75-KRR-B
|
75
|
130
|
67
|
|
GE80-KRR-B
|
80
|
140
|
70.7
|
|
GE90-KRR-B
|
90
|
160
|
69.5
|
|
GE100-KRR-B
|
100
|
180
|
75
|
|
GE120-KRR-B
|
120
|
215
|
81
|
For more bearing numer ,please contact with us directly at seven@mklbearing.com
