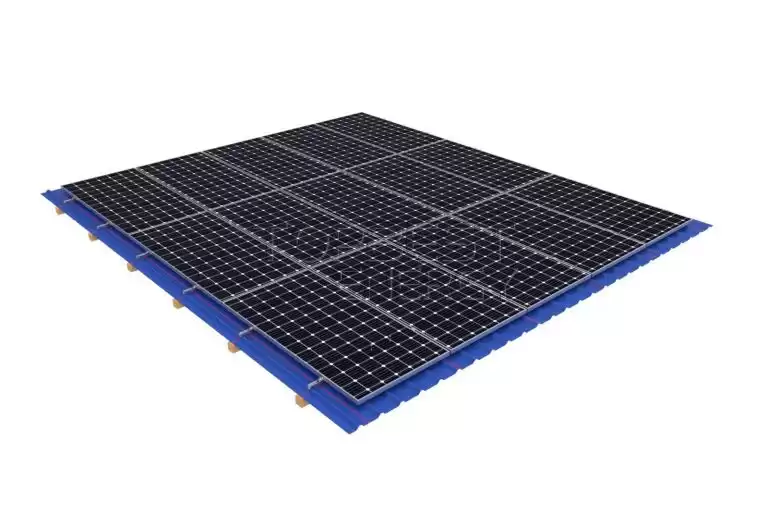

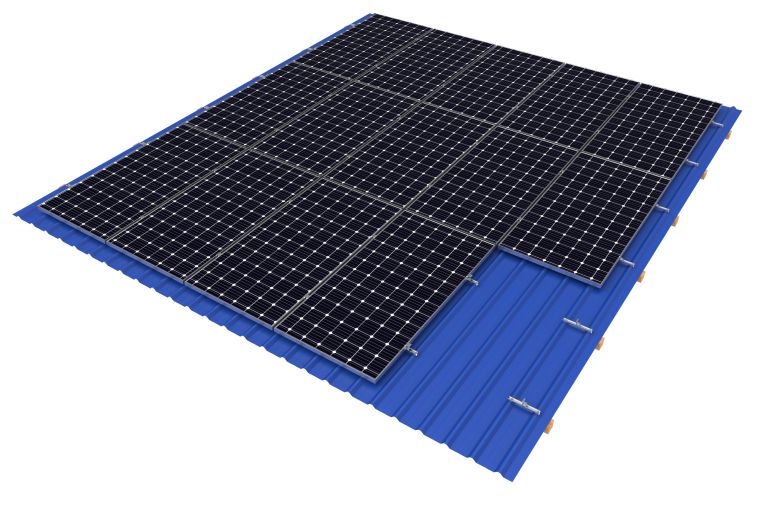

Railless Metal Roof Solar Mounting System
Railless metal roof mounts is designed for metal roof sheet. It can be fixed on rooftop,directly without aluminum rails to save cost. Easy installation and wide range of application in large commercial and indurstrial rooftop systems, suitable for both framed and frameless module installation,it is available in portrait or landscape orientation
☆ Safety and Good Stability
The system designed by skilled engineers can meet the international standards, The main support components should be tested to ensure the strength ,stable and safe,

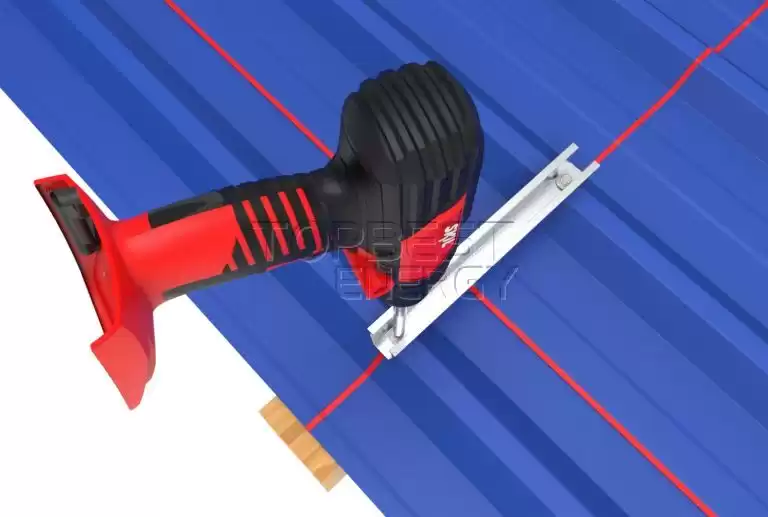

☆ Easy installation
All components are pre-install which help saving labor cost and time
☆ Various Solution
This system is customized to fit for metal roof size with proper clamps.
Technical Parameters
|
Installation Site:
|
Metal Roof
|
|
Material：
|
SUS304, AL6063-T5/6005-T5
|
|
Tit Angle:
|
Flushed with roof,up to 60 deg
|
|
PV Modules：
|
Framed, Frameless
|
|
Module Layourt：
|
As Designed Portrait and Landscape
|
|
Wind load：
|
60m/s
|
|
Snow Load：
|
1.4KN/m2
|
|
Building height：
|
up to 20m
|
|
Standards：
|
AS/NZS 1170& DIN 1055
|
|
Warranty：
|
10 years warranty
|

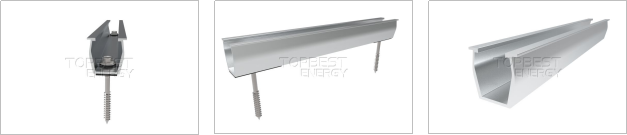

Components

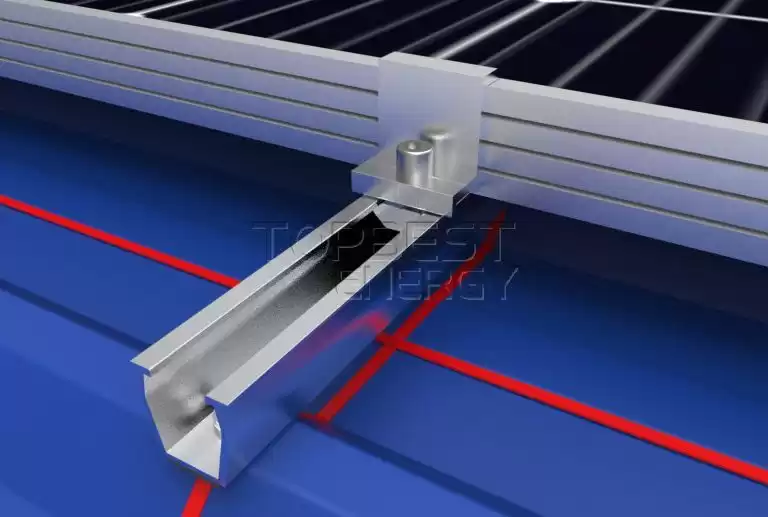

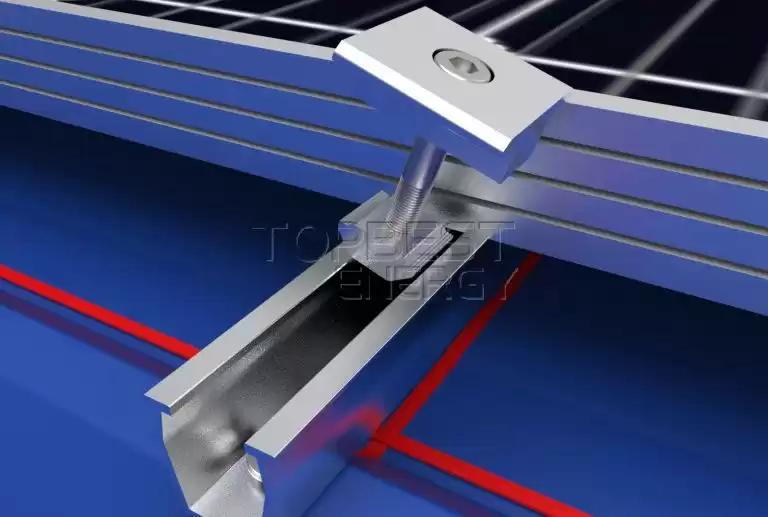

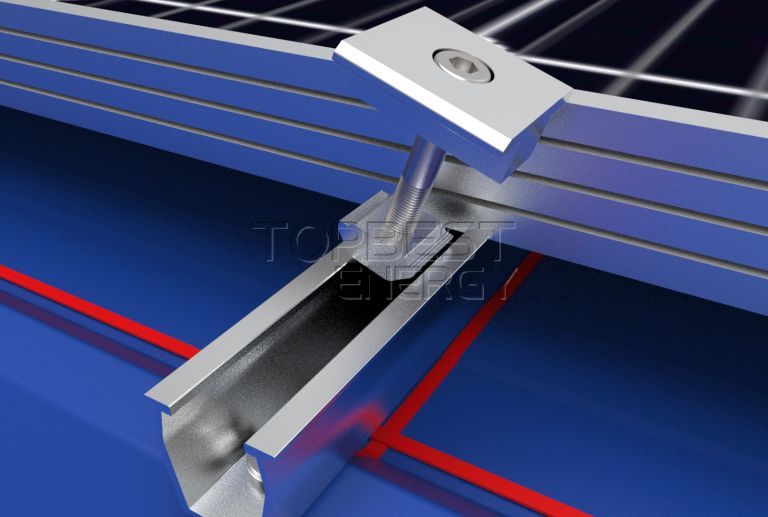

Optional Clamps
