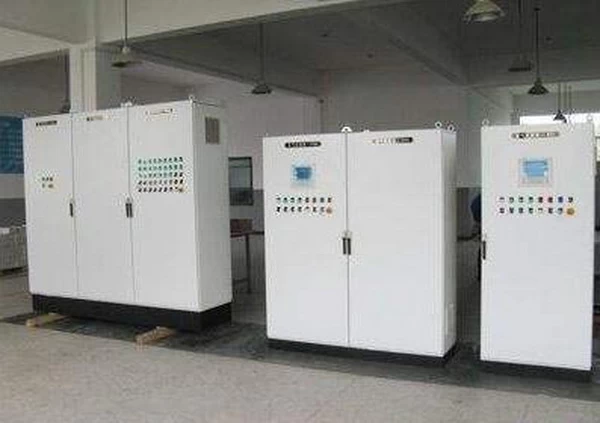

Sheet Metal Fabricated RAL7035 Powder Coating Power Electric Control Cabinets
Quick Details
· Protection Level: IP56
· Type: Control Cabinet
· External Size:800mm*1400mm*400mm(or Customized)
· Color: RAL7032 RAL7035
· OEM Ability: Provide OEM
· Certificates: CE CCC
Packaging & Delivery
|
Packaging Details:
|
Standard fumigation wooden boxes or honeycomb carton or bubble bag
|
|
Delivery Detail:
|
10-15 Days after payment
|
Specifications
electric enclosure
1. cheap
2.good quality
Product Description
electric enclosure
1. Material: Cold Rolled Steel Sheet or Stainless Steel SUS304
2. Surface Treatment: Etch Primer for Box Body and Door Plate, Powder Coating for Outside, Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing
|
Item Name:
|
electric enclosure
|
|
|
Material:
|
Cold Rolled Steel Sheet or Stainless Steel
|
|
|
Thickness:
|
Cabinet Body 2.0mm Door Plate:2.5mm Mounting Plate:2.5mm
|
|
|
|
|
Standard Configuration:
|
Door Plate, Cabinet Body, Sealing Strip, Grouding Sets, Mounting Plate, Door Lock
|
|
|
|
|
Surface Treatment:
|
Etch Primer for Cabinet Body and Door Plate, Powder Coating for Outside, Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
|
|
|
|
|
|
|
Class of Protection:
|
IP56(According to GB4205-1993)
|
|
|
|
|
MOQ:
|
100 PCS
|
|
|
Supply Ability:
|
10000 PCS/Month
|
|
|
Delivery Time:
|
10-15 days
|
|
|
Remark:
|
Special Demands Can Be Customized
|
|
Main advantage of electric enclosure :
1. The door plate and box body are installed with special screws and retainers in accordance with common standards, which can ensure the protection class and the operation and maintenance in the narrow space in the box.
2. Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opening.
3. PU foaming sealing strip ensures a protection class of IP56 to box body.
4. The grounding line can be connected to the box body and door plate.
5. Racks with screw holes are provided on both sides of the box to ensure the max mounting height and ensure the installation of supporting rail or mounting plate.
6. The special plastic insulating sleeve can provide sealing and prevent door plate screw loosening, and guide screws when they are tightened.
