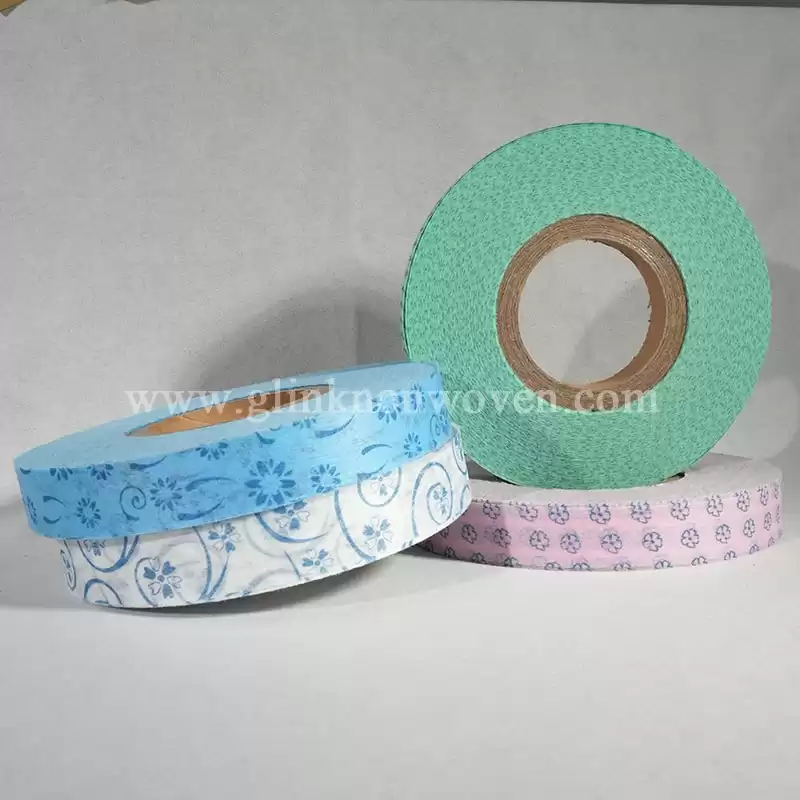

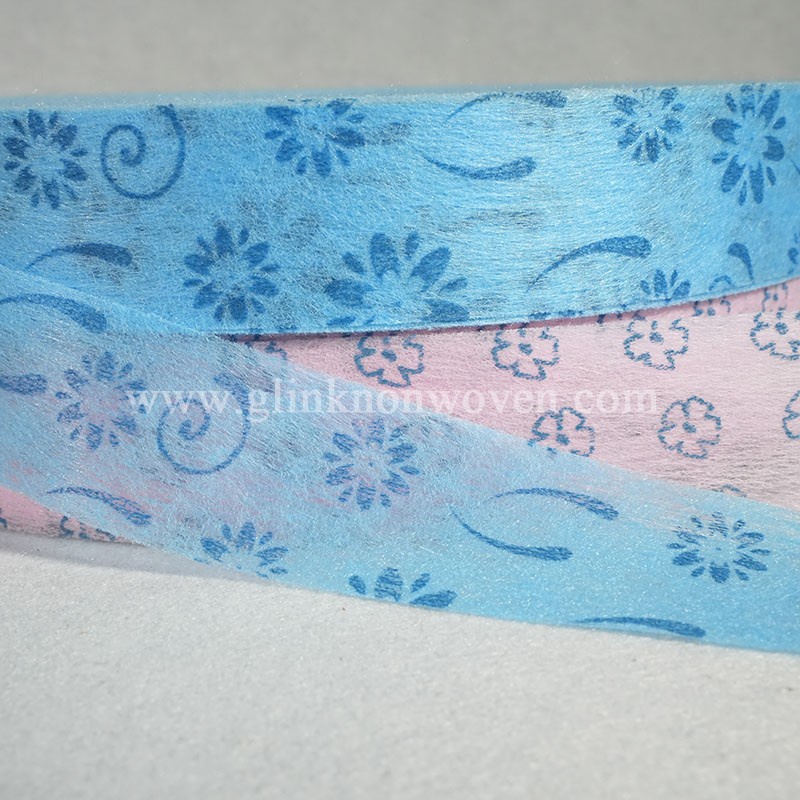

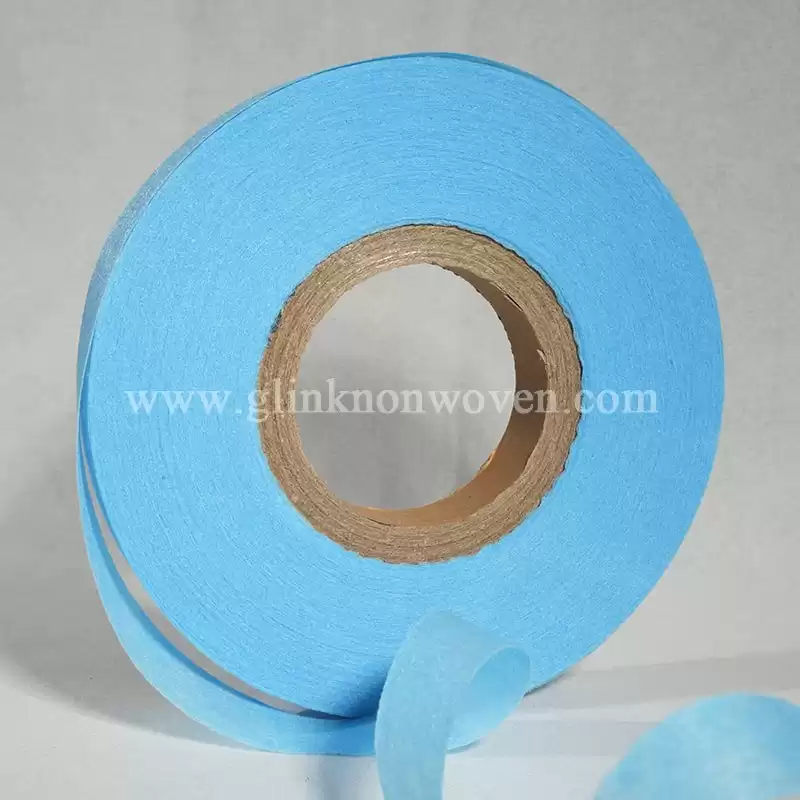

Product Description

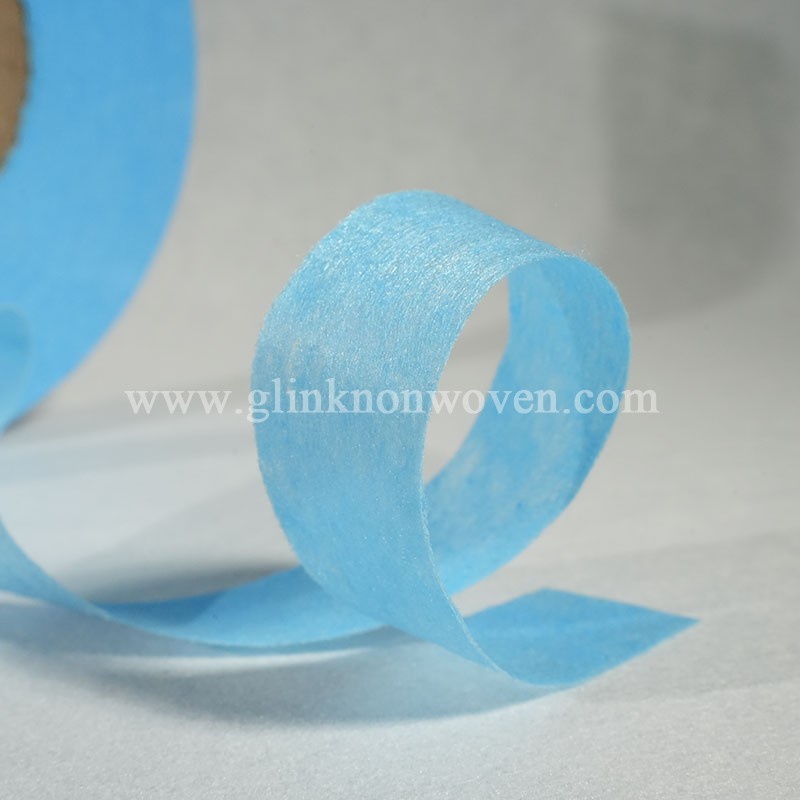

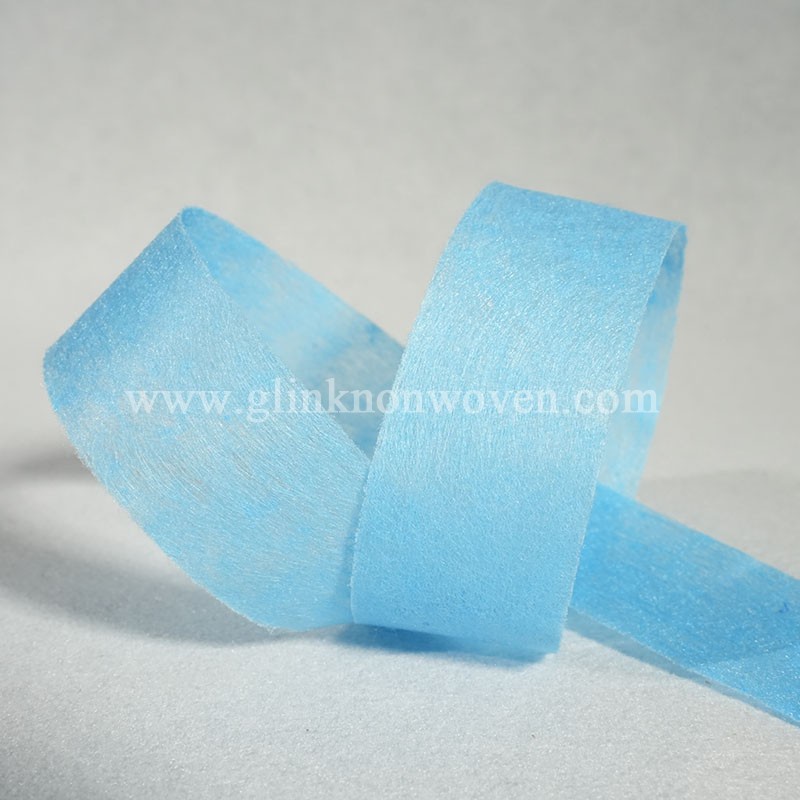

ADL (Acquisition Distribution Layer) is located between the surface of the diaper and the absorbent core, playing an important role in the rapid absorption and uniform distribution of urine. When urine comes into contact with the surface of diapers, ADL can quickly respond, utilizing its unique fiber structure and material properties to guide and disperse urine to a wider area. During this process, ADL acquisition distruibution layer not only improves the absorption rate of urine, but also effectively avoids excessive accumulation of urine in a certain local area, thereby reducing the possibility of urine reflux. In summary, the baby dipaer ADL nonwoven material is an indispensable part of diapers, and its application greatly improves the overall performance and user experience of diapers.
Product Attributes
| Items |
Unit |
Requirement |
Result |
Test Method |
Judging |
|
| Basic weight |
gsm |
35±2 |
34.6 |
Electronic scale |
OK |
| Width |
mm |
80±2 |
80 |
Thickness gauge (micrometer) |
OK |
| 3D- Dimensional Thickness |
mm |
0.65±0.2 |
0.65 |
Meter ruler |
OK |
| Tensile strength |
MD |
N/5cm |
≥56.5 |
59.5 |
JIS L1085-2005 |
OK |
| CD |
≥12.8 |
13.6 |
JIS L1085-2005 |
OK |
| Breaking elongation |
MD |
% |
≥36.1 |
38.4 |
JIS L1085-2005 |
OK |
| CD |
≥67.9 |
69.8 |
JIS L1085-2005 |
OK |
| Fluid Penetrating Rate |
1st |
S |
≤2 |
1.11 |
|
OK |
| 2nd |
≤3 |
2. 37 |
|
OK |
| 3rd |
≤4 |
3. 28 |
|
OK |
| Softness |
/ |
Soft |
Soft |
|
OK |
| Fluorescence reaction |
/ |
No |
No |
|
OK |
| Material was suitable to use in hygiene product. |
|
|
Product Application

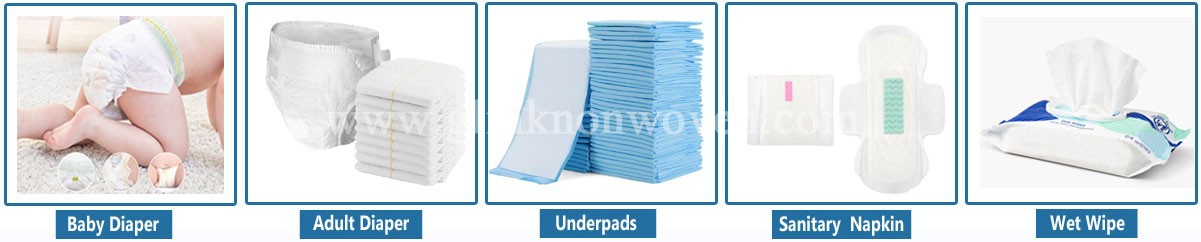

The ADL nonwoven raw materials are essential in baby diapers for its ability to quickly absorb and transfer moisture, keeping skin dry. It can be used in the production of baby diapers, adult diapers, disposable nursing pads and sanitary napkins.

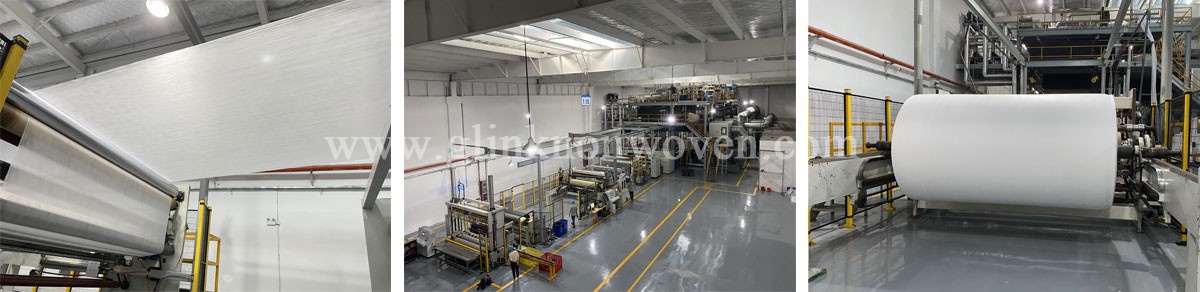

Factory Workshop
ADL nonwoven material is achieved by combing fibers into a mesh structure, ensuring that the fibers are arranged neatly and evenly distributed. A mesh laying machine is used to evenly lay the combed fiber mesh on the forming mesh, forming a certain thickness of fiber layer.

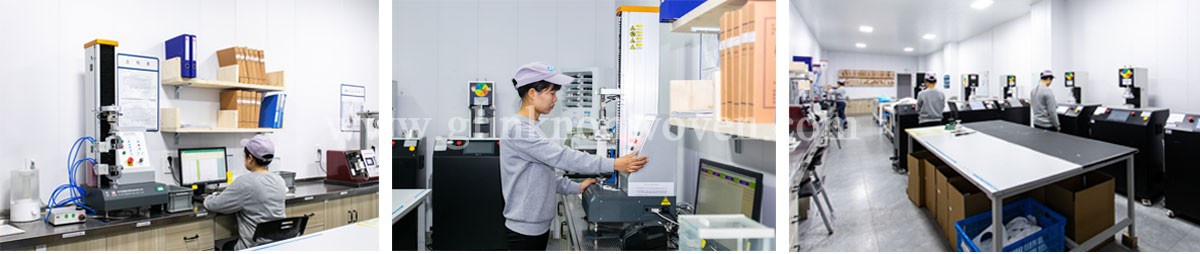

Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.

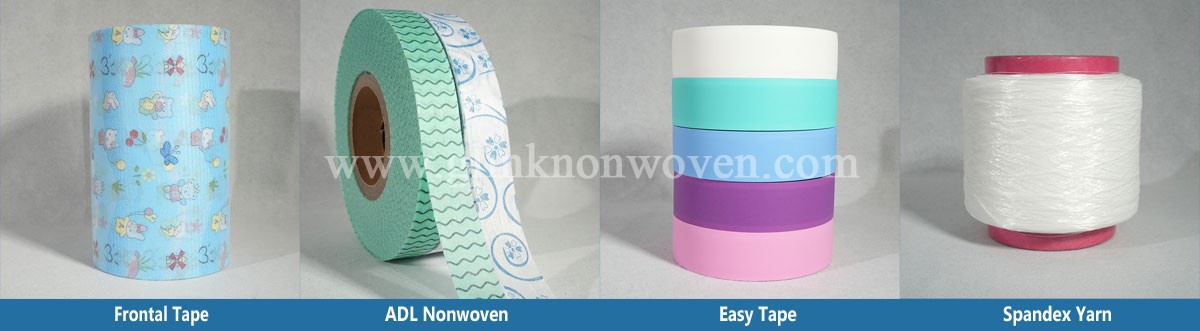

Related Products
Our products cover spunbond nonwoven, SMMS hydrophobic nonwoven, thermal nonwoven, hot air nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.

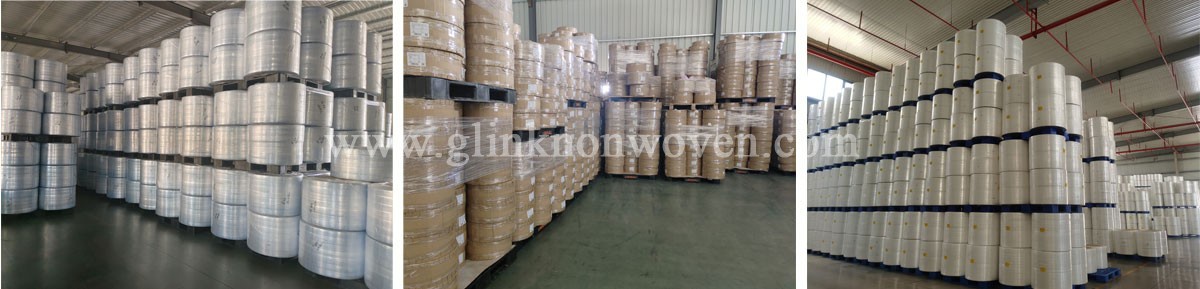

Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.

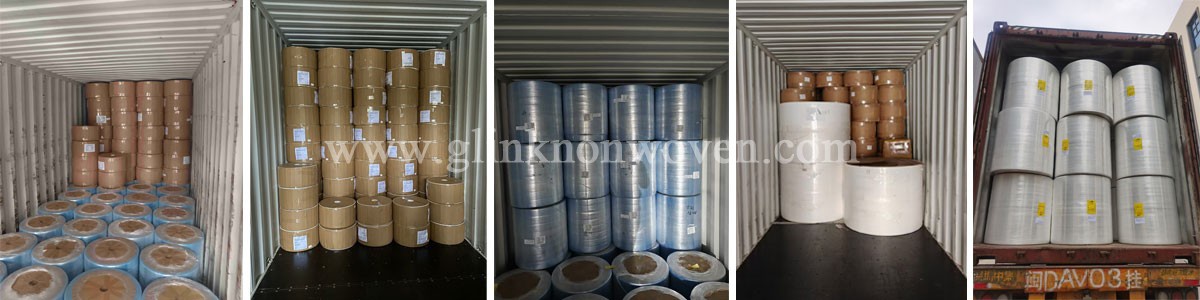

Packing & Shipment
Our integrity, strength and product quality are recognized by the industry, and our products are also exported to Southeast Asia, Africa, South America and so on. We firmly believe that with a professional and capable service team and an integrity-based business philosophy, we will continue to create and output value for our customers, and will be able to work hand in hand with our partners to create a brilliant future.
Our Service
1. Cost analysis and cost reduction plan for the entire set of raw materials for finished products
2. One-stop procurement service for hygiene products raw materials
3. Free safety inventory in large warehouses and free consolidation of multiple materials
4. Provide a complete set of process reports and photos for orders
5. Monthly analysis report on the Chinese raw material market
6. Technical support for equipment
7. Raw material process solutions
8. Design and customization of special edition raw materials
